MAC Access Control Lists
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 365
D-Link UWS User Manual
MAC ACL Configuration
The MAC ACL Configuration page allows network administrators to define a MAC-based ACL.
To display the MAC ACL Configuration page, click LAN > QoS > Access Control Lists > MAC Access Control Lists
> Configuration in the navigation tree.

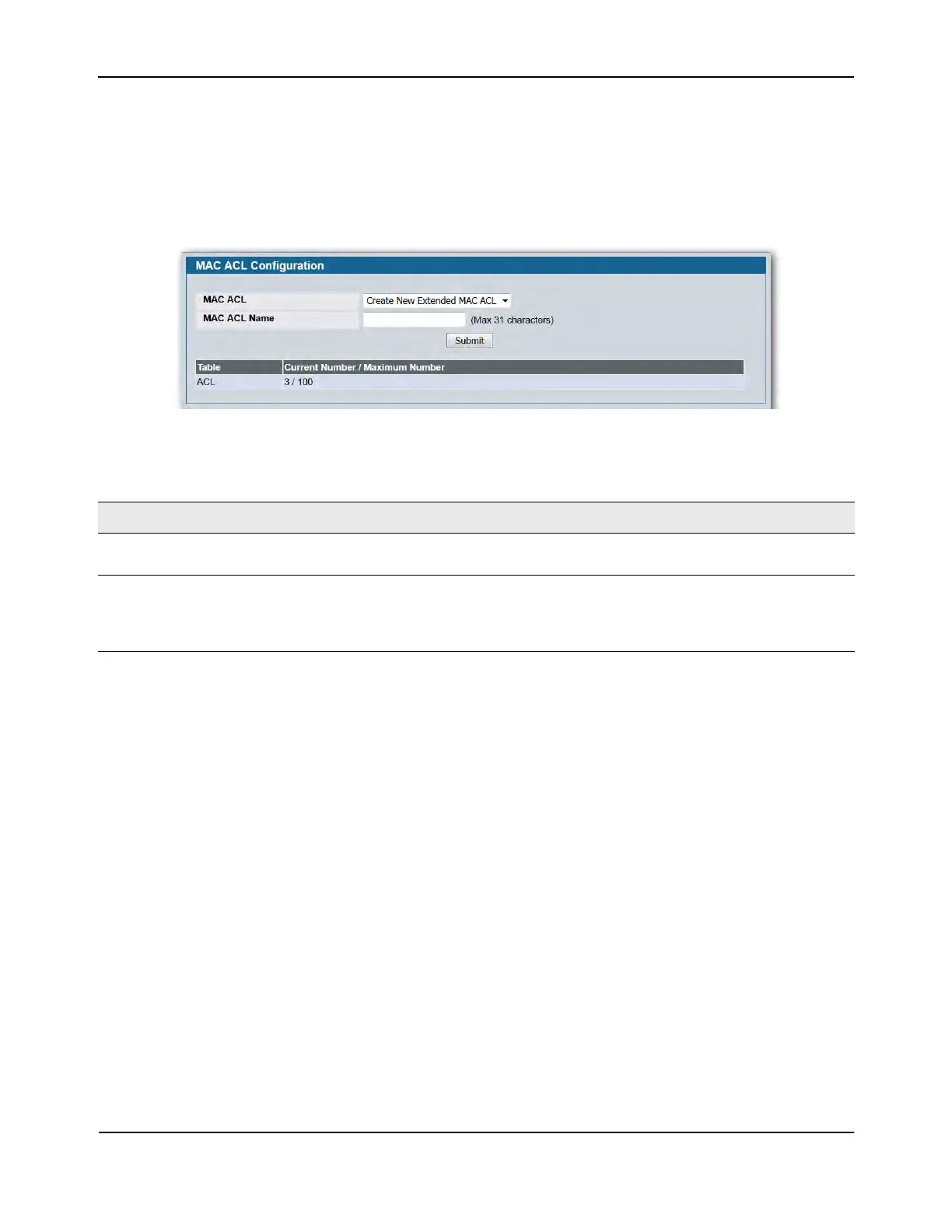

Figure 244: MAC ACL Configuration
The ACL Table at the bottom of the page shows the current size of the ACL table versus the maximum size of
the ACL table. The current size is equal to the number of configured IPv4 ACLs plus the number of configured
MAC ACLs. The maximum size is 100.
• To add a MAC ACL, select Create New Extended MAC ACL from the MAC ACL menu, enter a name for the
ACL in the appropriate field, and then click Submit.
• To rename a MAC ACL, select the ACL name from the MAC ACL menu. Enter a new name for the ACL in
the appropriate field, and then click Rename. The Rename button only appears if a configured MAC ACL is
selected.
• To delete a MAC ACL, select the ACL name from the MAC ACL menu, and then click Delete. The Delete
button only appears if a configured MAC ACL is selected.
Table 214: MAC ACL Configuration Fields
Field Description
MAC ACL The options in the dropdown menu allow you to create a new MAC ACL or
select an existing MAC ACL that you want to rename.
MAC ACL Name Enter a name for the MAC ACL. The name string may include alphabetic,
numeric, dash, underscore, or space characters only. The name must start
with an alphabetic character. This field displays the name of the currently
selected MAC ACL if the ACL has already been created.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
