D-Link DWL-8610AP User Manual

Captive Portal Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 400
D-Link UWS User Manual
Interface Association
From the Interface Association page, you can associate a configured captive portal with a specific physical
interface or wireless network (SSID). The CP feature only runs on the wired or wireless interfaces that you
specify. A CP can have multiple interfaces associated with it, but an interface can be associated to only one CP
at a time.
To associate interfaces with CPs, click Security > Captive Portal > Interface Association.

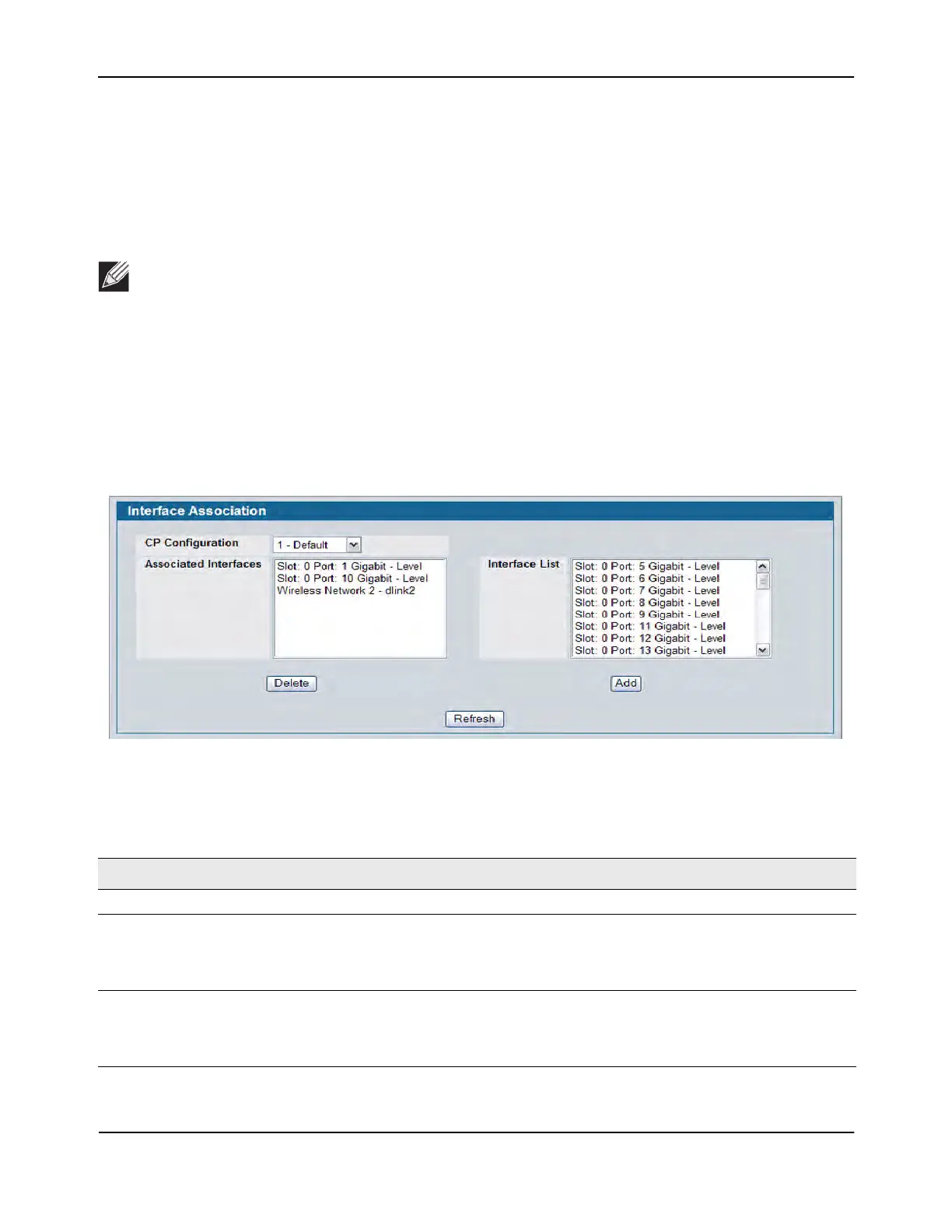

Figure 270: Interface Association
Table 231 describes the fields on the Interface Association page.
Note: When associating a physical (wired) interface with a captive portal configuration, note the
following restrictions:
• Captive portal and should not be enabled on the same physical interface.
• Captive portal and 802.1X cannot be enabled on the same physical interface.
• Port security and captive portal cannot be enabled on the same physical interface.
• If a physical interface is made a LAG member, the captive portal becomes disabled on the
interface.
Table 231: Global Captive Portal Configuration
Field Description
CP Configuration Lists the captive portals configured on the switch by number and name.
Associated
Interfaces
Lists the interfaces that are currently associated with the selected captive portal.
Wireless interfaces are identified by the wireless network number and SSID. Physical
(wired) interfaces are identified by the Port Description that includes slot number, port
number, and interface type.
Interface List Lists the interfaces available on the switch that are not currently associated with a CP.
Wireless interfaces are identified by the wireless network number and SSID. Physical
(wired) interfaces are identified by the Port Description that includes slot number, port
number, and interface type.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
