Configuring IGMP Snooping Queriers
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 224
D-Link UWS User Manual
IGMP Snooping Querier VLAN Configuration Summary
Use this page to view summary information for IGMP snooping queriers for on VLANs in the network.
To access this page, click LAN > L2 Features> IGMP Snooping Querier > IGMP Snooping Querier VLAN
Configuration Summary in the navigation tree.

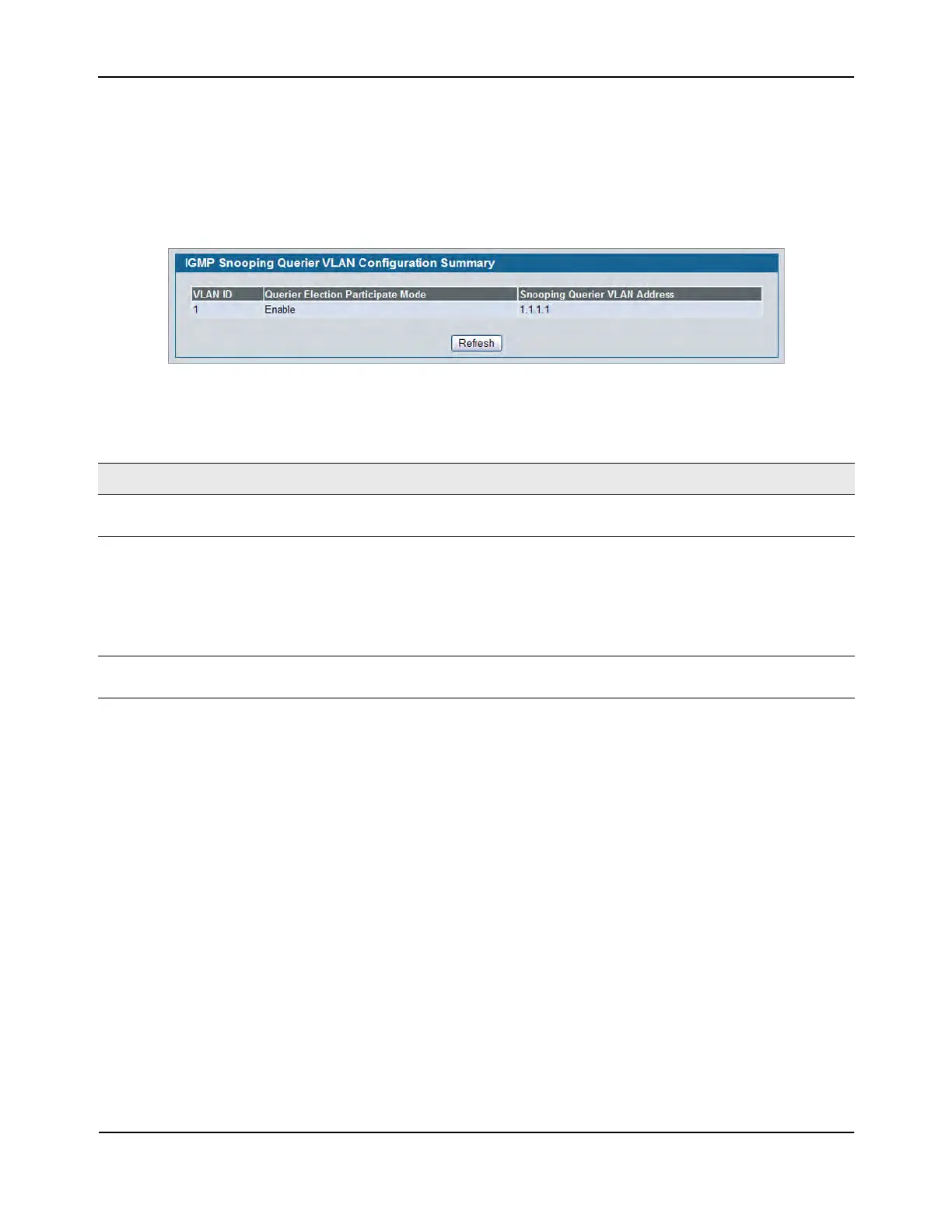

Figure 129: IGMP Snooping Querier VLAN Configuration Summary
• Click Refresh to re-display the page with the latest information from the router.
Table 113: IGMP Snooping Querier VLAN Configuration Summary Fields
Field Description
VLAN ID Specifies the VLAN ID on which IGMP Snooping Querier is administratively
enabled.
Querier Election Participate
Mode
Displays the querier election participate mode on the VLAN.
When this mode is disabled, up on seeing a query of the same version in the
VLAN, the snooping querier moves to non-querier state.
When this mode is enabled, the snooping querier participate in querier
election, in which the lowest IP address operates as the querier in that VLAN.
The other querier moves to non-querier state.
Snooping Querier VLAN
Address
Displays the Snooping Querier Address to be used as source address in
periodic IGMP queries sent on the specified VLAN.
