D-Link DWL-8610AP User Manual

Multiple Image Service
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 178
D-Link UWS User Manual
Viewing the Dual Image Status
The Dual Image feature allows the switch to have two D-Link DWS-4000 Series software images in the
permanent storage. One image is the active image, and the second image is the backup. This feature reduces
the system down-time during upgrades and downgrades. You can use the Dual Image Status page to view
information about the system images on the device.
To display the Dual Image Status page, click LAN > Monitoring Dual Image Status in the navigation menu.

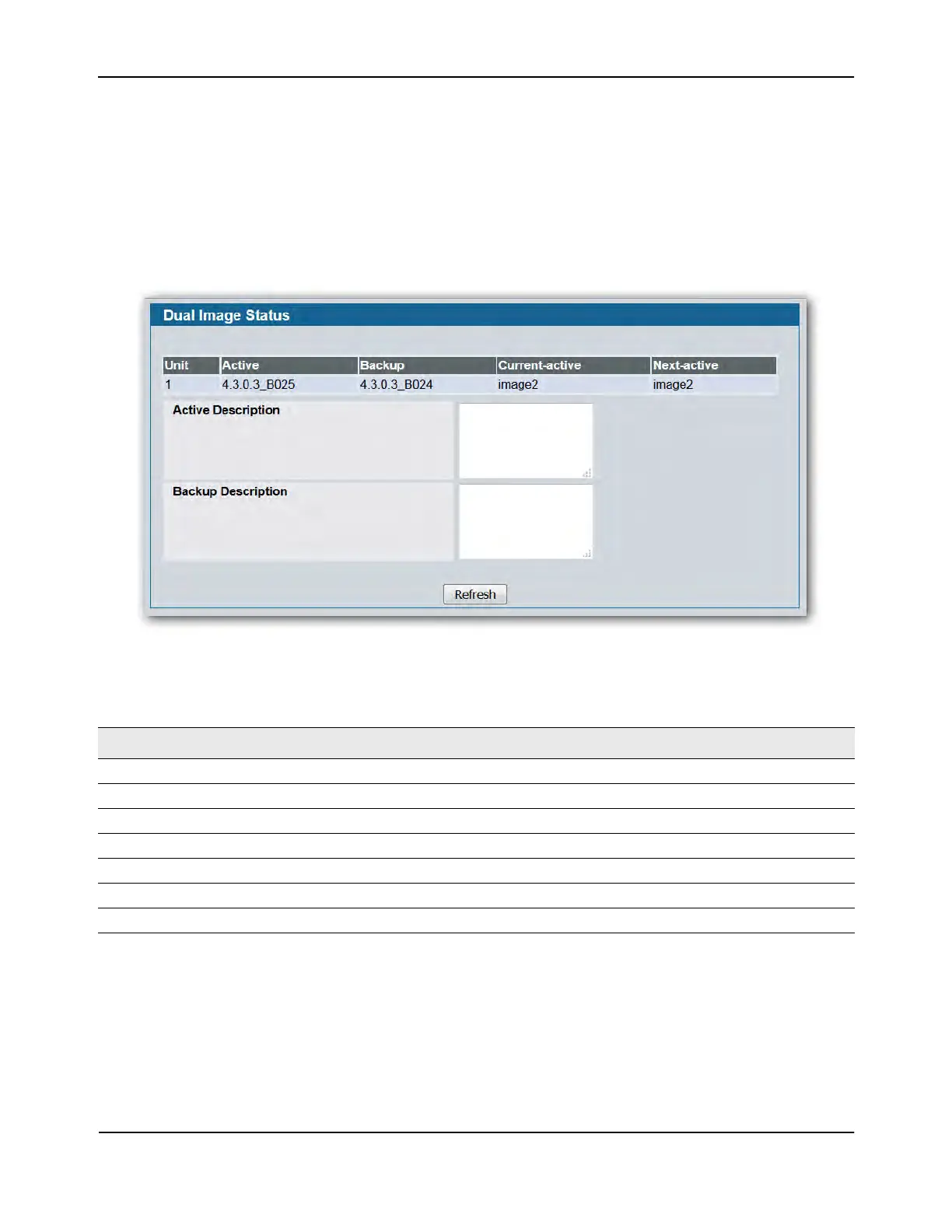

Figure 90: Dual Image Status
• Click Refresh to display the latest information from the router.
Table 78: Dual Image Status Fields
Field Description
Unit Displays the unit ID of the switch.
Active Displays the version of the active code file.
Backup Displays the version of the backup code file.
Current-active Displays the currently active image on this unit.
Next-active Displays the image to be used on the next restart of this unit.
Active Description Displays the description associated with the active code file.
Backup Description Displays the description associated with the backup code file.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
