D-Link DWL-8610AP User Manual

Configuring IP Access Control Lists
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 357
D-Link UWS User Manual
IP ACL Configuration
Use the IP ACL Configuration page to add or remove IP-based ACLs. On this menu the interfaces to which an
IP ACL applies must be specified, as well as whether it applies to inbound or outbound traffic. Rules for the IP
ACL are specified/created using the “IP ACL Rule Configuration”page.
To display the IP ACL Configuration page, click LAN > Access Control Lists > IP Access Control Lists >
Configuration in the navigation menu.

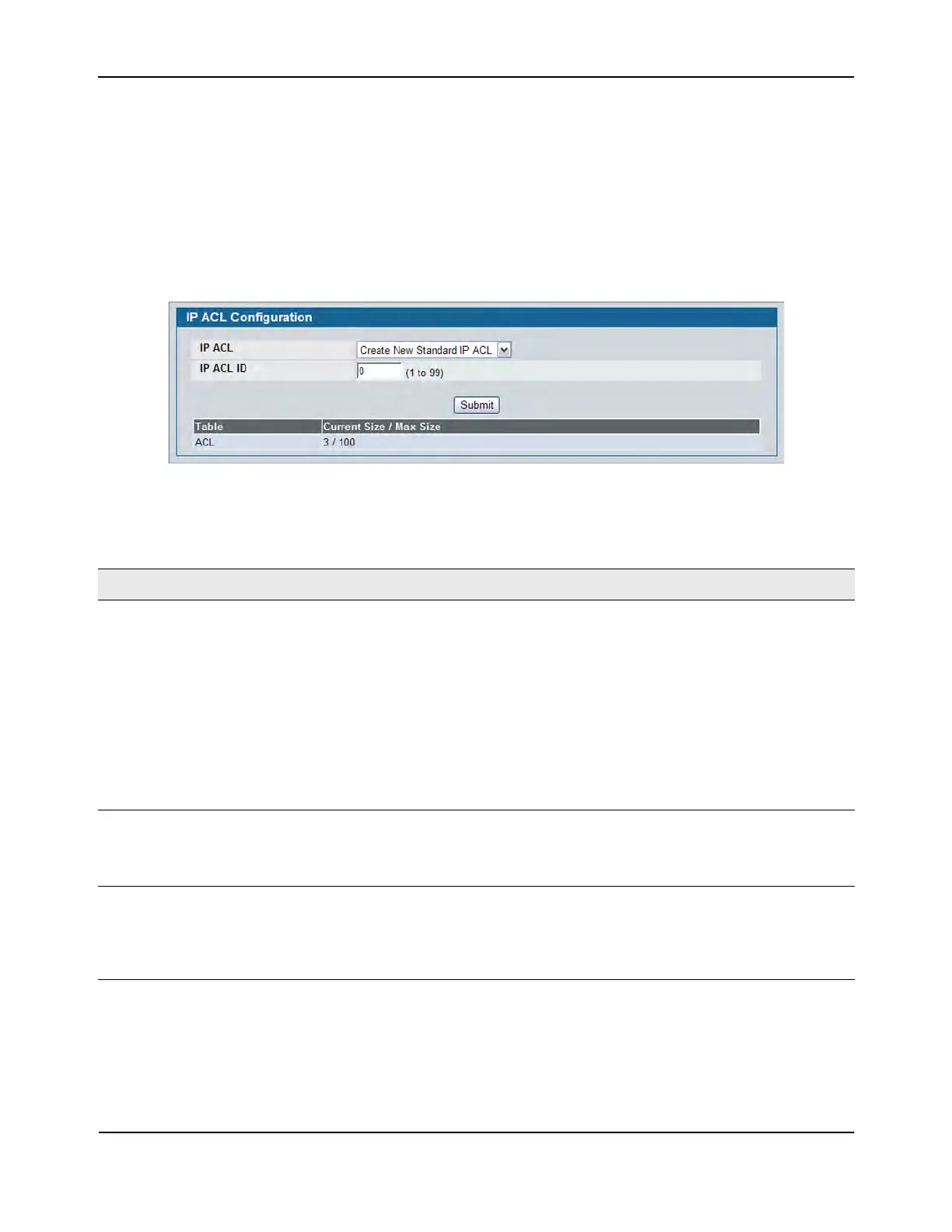

Figure 239: IP ACL Configuration
Table 212: IP ACL Configuration Fields
Field Description
IP ACL Select a type of ACL to create, or select an existing ACL to delete from the
dropdown menu. You can create the following types of IP ACLs:
• Standard IP ACL: Allows you to permit or deny traffic from a source IP
address.
• Extended IP ACL: Allows you to permit or deny specific types of layer 3 or
layer 4 traffic from a source IP address to a destination IP address. This
type of ACL provides more granularity and filtering capabilities than the
standard IP ACL.
• Named IP ACL: Allows you to create an Extended IP ACL that is identified
by a name rather than a number. These ACLs have the same capabilities as
Extended IP ACLs with respect to match criteria and actions supported.
IP ACL ID Enter an ID number for the ACL to configure. This field appears if you select
Create Standard IP ACL or Create Extended IP ACL from the IP ACL dropdown
menu. For a standard IP ACL, the acceptable ID values are 1-99. For an
extended IP ACL, the acceptable ID values are 101-199.
IP ACL Name This field appears if you select Create New Named IP ACL from the IP ACL
dropdown menu. Specify an IP ACL Name string which includes only
alphanumeric characters. The name must start with an alphabetic character.
This field will display the name of the currently selected IP ACL if the ACL has
already been created.
