Configuring VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 680
D-Link UWS User Manual

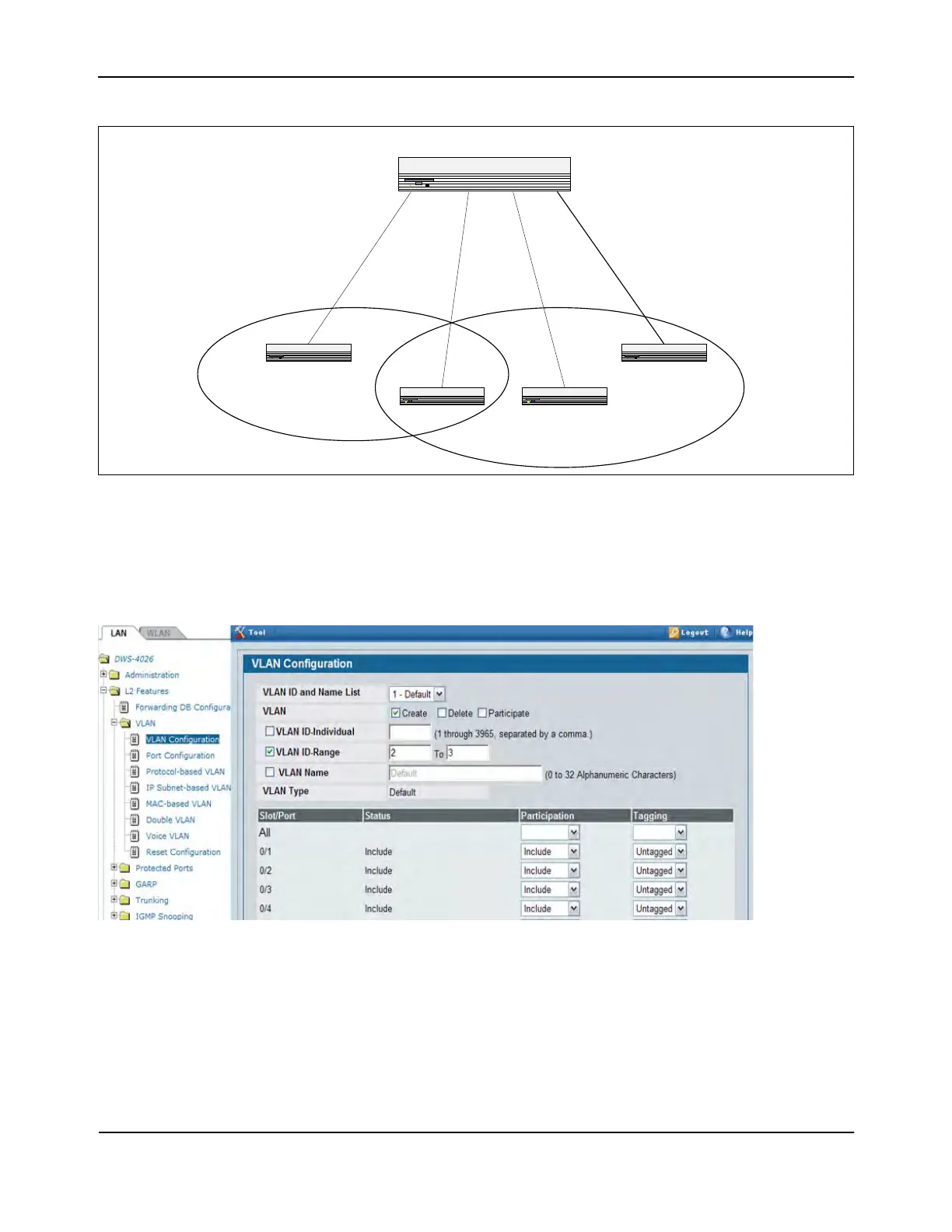

Figure 433: VLAN Example Network Diagram
1. Access the LAN > L2 Features > VLAN > VLAN Configuration page.
2. Select the Create option in the VLAN field.
3. Select the VLAN ID-Range option and enter 2 to 3 in the range fields.
4. Click Submit.
5. Select VLAN 2 from the VLAN ID and Name List.
6. Select the Participate option in the VLAN field.
7. For ports 0/1 and 0/2, select Include from the Participation menu to specify that these ports are members
of VLAN 2.
8. From the Tagging menu, select Tagged in the first row (All) to specify that frames will always be transmitted
Port 0/1
VLAN 2
Port 0/2
VLANs 2 & 3
Port 0/3
VLAN 3
Port 0/4
VLAN 3
Layer 3 Switch
VLAN 2
VLAN 3
