Configuring MLD Snooping
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 230
D-Link UWS User Manual
• If you make any changes to the page, click Submit to apply the new settings to the system.
• To disable the MLD Snooping admin mode on a VLAN, select the VLAN from the VLAN ID field and click
Delete.
Multicast Router Configuration
The switch can dynamically learn of an attached multicast router, or you can configure a switch port as a
multicast router interface. Use the MLD Snooping Multicast Router Configuration page to configure an
interface as a static multicast router interface.
To access the MLD Snooping Multicast Router Configuration page, click LAN > L2 Features> MLD Snooping >
Multicast Router Configuration in the navigation tree.

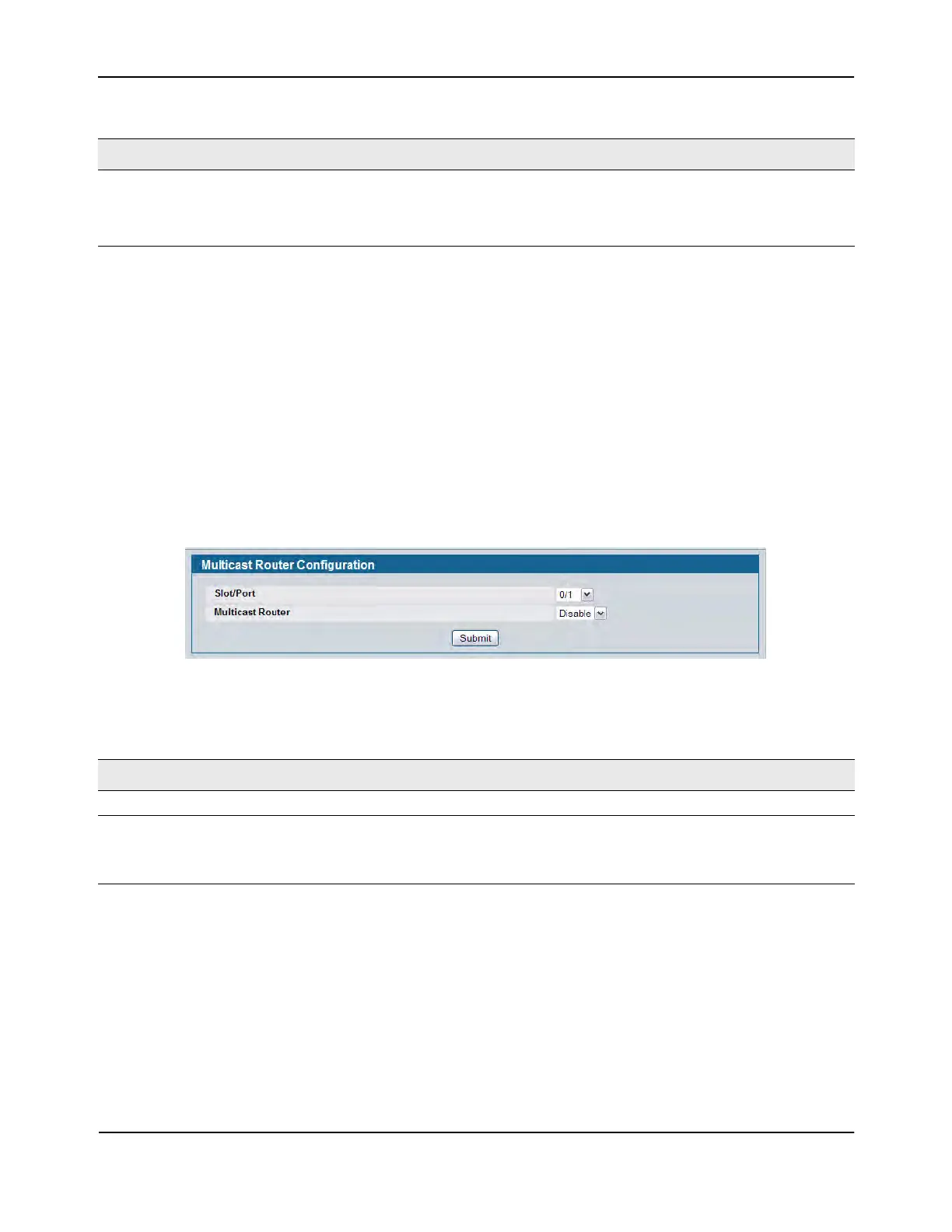

Figure 135: MLD Snooping Multicast Router Configuration
• If you enable or disable multicast router configuration on an interface, click Submit to apply the new
settings to the switch.
Multicast Router Expiry Time Enter the amount of time in seconds that a switch waits for a query to be
received on an interface before the interface is removed from the list of
interfaces with multicast routers attached. The range is 0 to 3600 seconds. A
value of 0 indicates an infinite time-out; i.e., no expiration.
Table 119: MLD Snooping Multicast Router Configuration Fields
Field Description
Slot/Port Select the physical or LAG interface to display.
Multicast Router Set the multicast router status:
• Enabled: The port is a multicast router interface.
• Disabled: The port does not have multicast router configured.
Table 118: MLD Snooping VLAN Configuration Fields (Cont.)
Field Description

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
