D-Link DWL-8610AP User Manual

Configuring the Wireless Distribution System
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 648
D-Link UWS User Manual
Command Buttons
The page includes the following buttons:
• Submit—Update the switch with the values you enter.
WDS Link Configuration
After you create a WDS-Managed AP group, use the WDS AP Link Configuration page to configure the WDS
links between the APs that are members of the group.

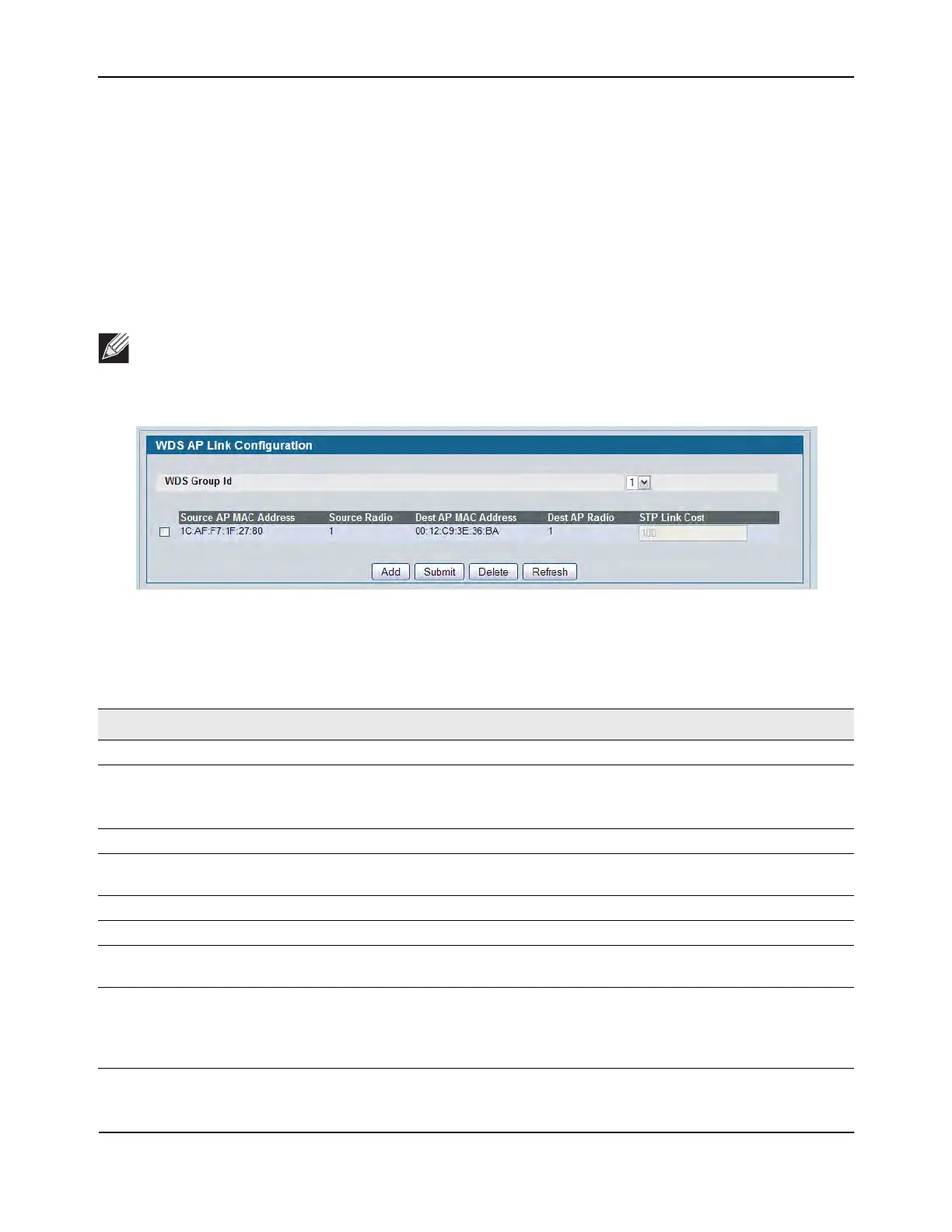

Figure 406: WDS AP Link Configuration
The following table shows the fields available on the WDS AP Link Configuration page.
Note: After you change WDS-Managed AP group settings, make sure you push the configuration to
other switches in the cluster.
Table 372: WDS AP Link Configuration
Field Description
WDS Group ID Select the ID associated with the group to configure.
Source AP MAC
Address
MAC Address of the source AP. The AP must be included in the selected WDS group.
Note: The WDS links are bidirectional. The terms Source and Destination simply
reflect the WDS link endpoints specified when the WDS link is created.
Source Radio The radio number of the WDS link endpoint on the source AP.
Source AP Hardware
Type
The hardware type identifier associated with the source AP.
Dest AP MAC Address The MAC address of the destination AP in the group.
Destination Radio The radio number of the WDS link endpoint on the destination AP.
Destination AP
Hardware Type
The hardware type identifier associated with the destination AP.
Link Cost Spanning Tree Path cost for the WDS link. The range is 0–255.
When multiple alternate paths are defined in the WDS group, the link cost is used to
indicate which links are the primary links and which links are the secondary links. The
spanning tree selects the path with the lowest link cost.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
