Viewing Multicast Forwarding Database Information
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 240
D-Link UWS User Manual
MFDB IGMP Snooping Table
Use the IGMP Snooping Table page to view all of the entries in the Multicast Forwarding Database that were
created for IGMP snooping.
To access the IGMP Snooping Table page, click LAN > Monitoring > Multicast Forwarding Database > IGMP
Snooping Table in the navigation tree.

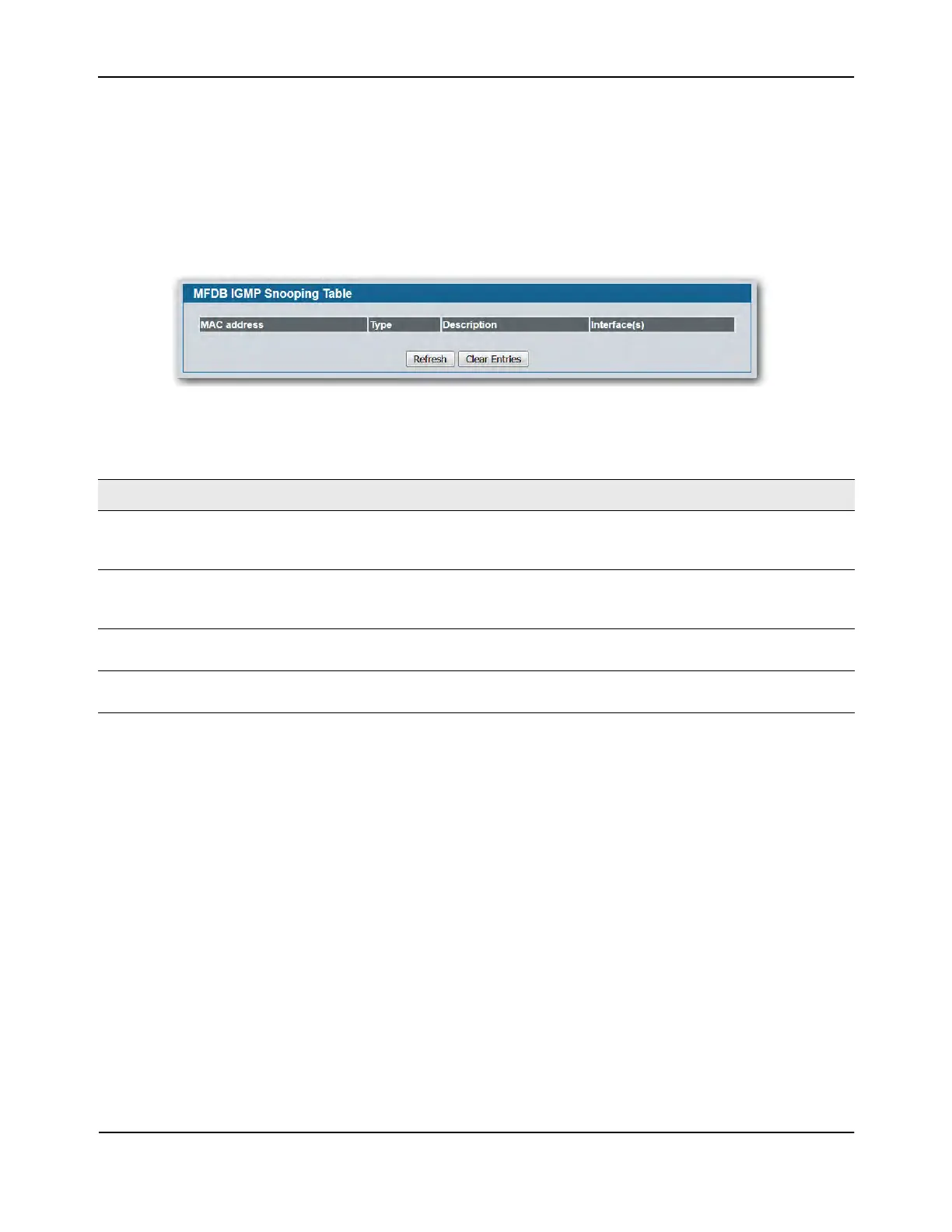

Figure 145: IGMP Snooping Table
• Click Refresh to update the information on the screen with the most current data.
• Click Clear Entries to tell the IGMP Snooping component to delete all of its entries from the multicast
forwarding database.
Table 129: MFDB IGMP Snooping Table Fields
Field Description
MAC Address A VLAN ID/multicast MAC address pair for which the switch has forwarding
and or filtering information. The format is 8 two-digit hexadecimal numbers
that are separated by colons, for example, 00:01:23:45:67:89:AB:CD.
Type This displays the type of the entry. Static entries are those that are configured
by the end user. Dynamic entries are added to the table as a result of a
learning process or protocol.
Description The text description of this multicast table entry. Possible values are
Management Configured, Network Configured and Network Assisted.
Interface(s) The list of interfaces that are designated for forwarding (Fwd) and filtering
(Flt) for the associated address.
