Peer Switch Status
The Peer Switch Status page provides information about other Unified Wireless Switches in the network. To
access the peer switch information, click WLAN > Monitoring > Peer Switch.
Peer wireless switches within the same cluster exchange data about themselves, their managed APs, and
clients. The switch maintains a database with this data so you can view information about a peer, such as its
IP address and software version. If the switch loses contact with a peer, all of the data for that peer is deleted.
One switch in a cluster is elected as a Cluster Controller. The Cluster Controller collects status and statistics
from all the other switches in the cluster, including information about the APs peer switches manage and the
clients associated to those APs.

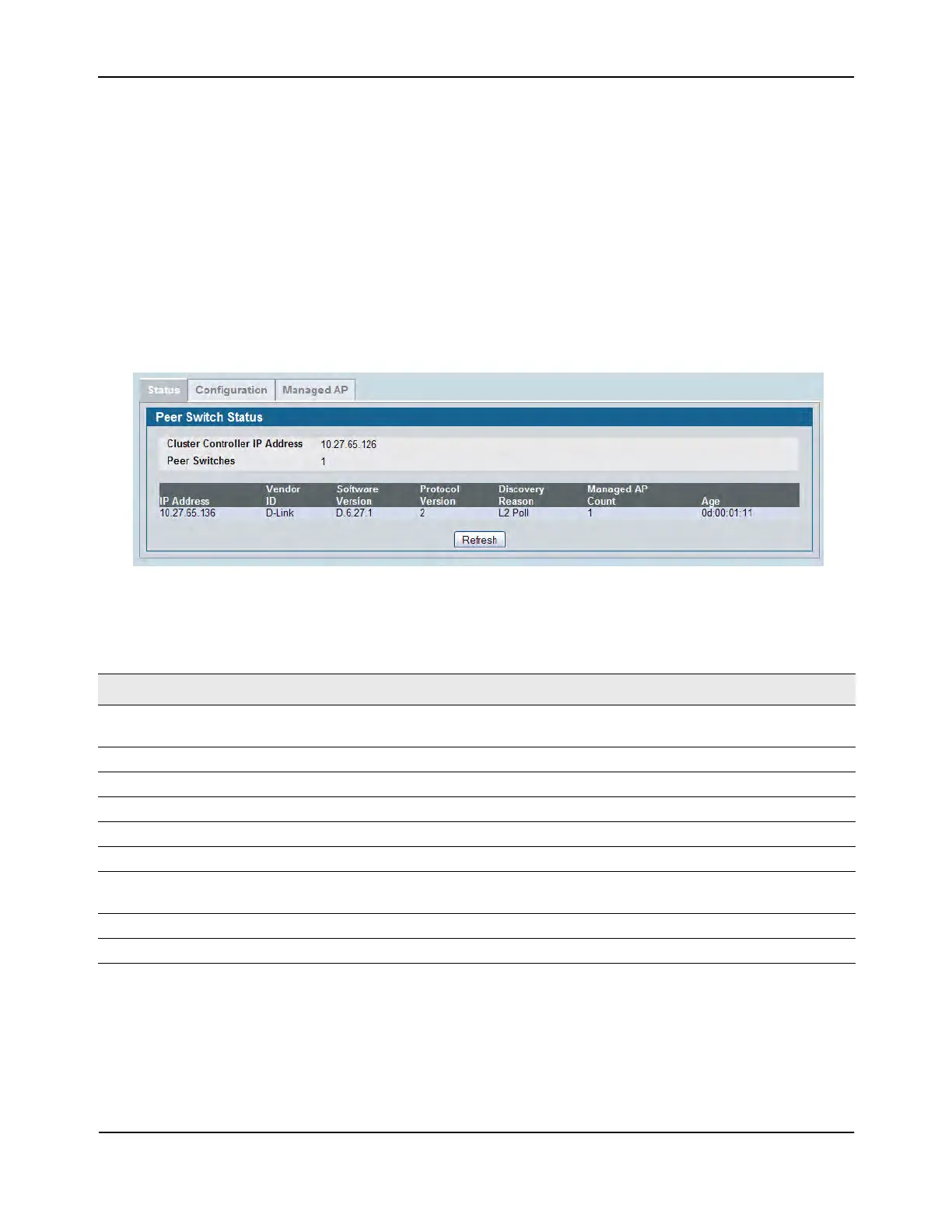

Figure 310: Peer Switch Status
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Table 265: Peer Switch Status
Field Description
Cluster Controller IP
Address
IP address of the switch that controls the cluster.
Peer Switches Displays the number of peer switches in the cluster.
IP Address IP address of the peer wireless switch in the cluster.
Vendor ID Vendor ID of the peer switch software.
Software Version The software version for the given peer switch.
Protocol Version Indicates the protocol version supported by the software on the peer switch.
Discovery Reason The discovery method of the given peer switch, which can be through an L2 Poll or
IP Poll
Managed AP Count Shows the number of APs that the switch currently manages.
Age Time since last communication with the switch in Hours, Minutes, and Seconds.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
