D-Link DWL-8610AP User Manual

Managing LLDP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 268
D-Link UWS User Manual
LLDP-MED Interface Configuration
Use this page to enable LLDP-MED mode on an interface and configure its properties. To display this page, click
LAN > L2 Features > LLDP > LLDP-MED > Interface Configuration in the navigation tree.

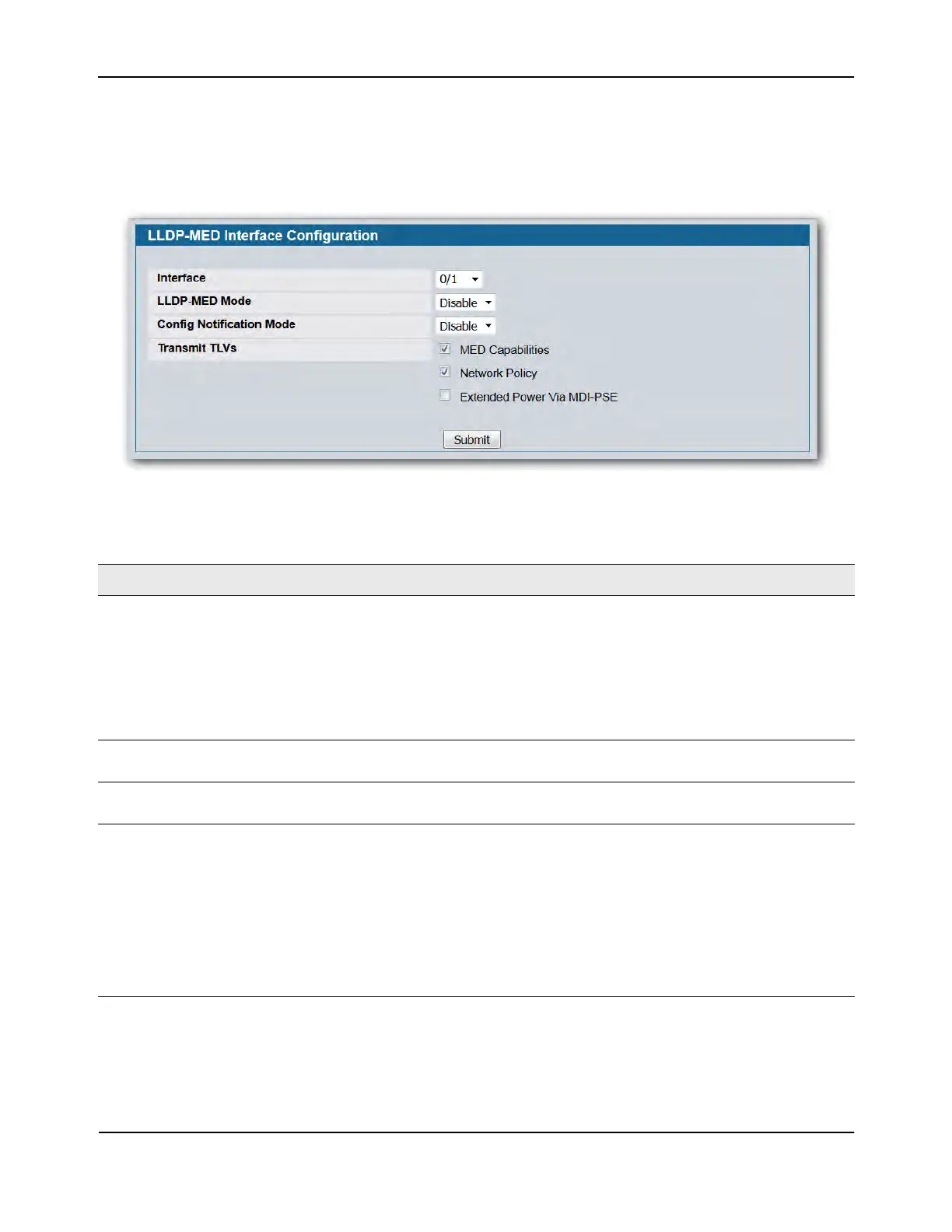

Figure 167: LLDP-MED Interface Configure
• Click Submit to send the updated configuration to the switch. These changes take effect immediately but
will not be retained across a power cycle unless a save is performed.
Table 150: LLDP-MED Interface Configuration Fields
Field Description
Interface Selects the port that you want to configure LLDP-MED - 802.1AB on. You can select
All to configure all interfaces on the DUT with the same properties. To view the
summary of all interfaces, refer to the “LLDP-MED Interface Summary” on
page 269. The Interface Configuration page will not be able to display the summary
of ‘All’ interfaces. The summary of individual interfaces is visible from the Interface
Configuration page. The Interface Configuration page for the ‘All’ option will always
display the LLDP-MED mode and notification mode as ‘disabled’ and check boxes
for ‘Transmit TLVs’ will always be unchecked.
LLDP-MED Mode Enables or disables LLDP-MED mode for the selected interface. By enabling MED,
you will be effectively enabling the transmit and receive function of LLDP.
Config Notification
Mode
Enables or disables LLDP-MED topology change notification mode for the selected
interface.
Transmit TLVs Specifies which optional type length values (TLVs) in the LLDP-MED will be
transmitted in the LLDP PDUs frames for the selected interface:
• MED Capabilities: Transmits the capabilities TLV in LLDP frames.
• Network Policy: Transmits the network policy TLV in LLDP frames.
• Extended Power via MDI - PSE: Transmits the extended PSE TLV in LLDP frames.
• Extended Power via MDI - PD: To transmit the extended PD TLV in LLDP frames.
• Location Identification: To transmit the location TLV in LLDP frames.
• Inventory: To transmit the inventory TLV in LLDP frames.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
