D-Link DWL-8610AP User Manual

Configuring Advanced Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 619
D-Link UWS User Manual
Access Point Profile VAP Configuration
The Access Point Profile VAP Configuration page displays the virtual access point (VAP) settings associated
with the selected AP profile. Each VAP is identified by its network number and Service Set Identifier (SSID). You
can configure and enable up to 16 VAPs per radio on each physical access point.

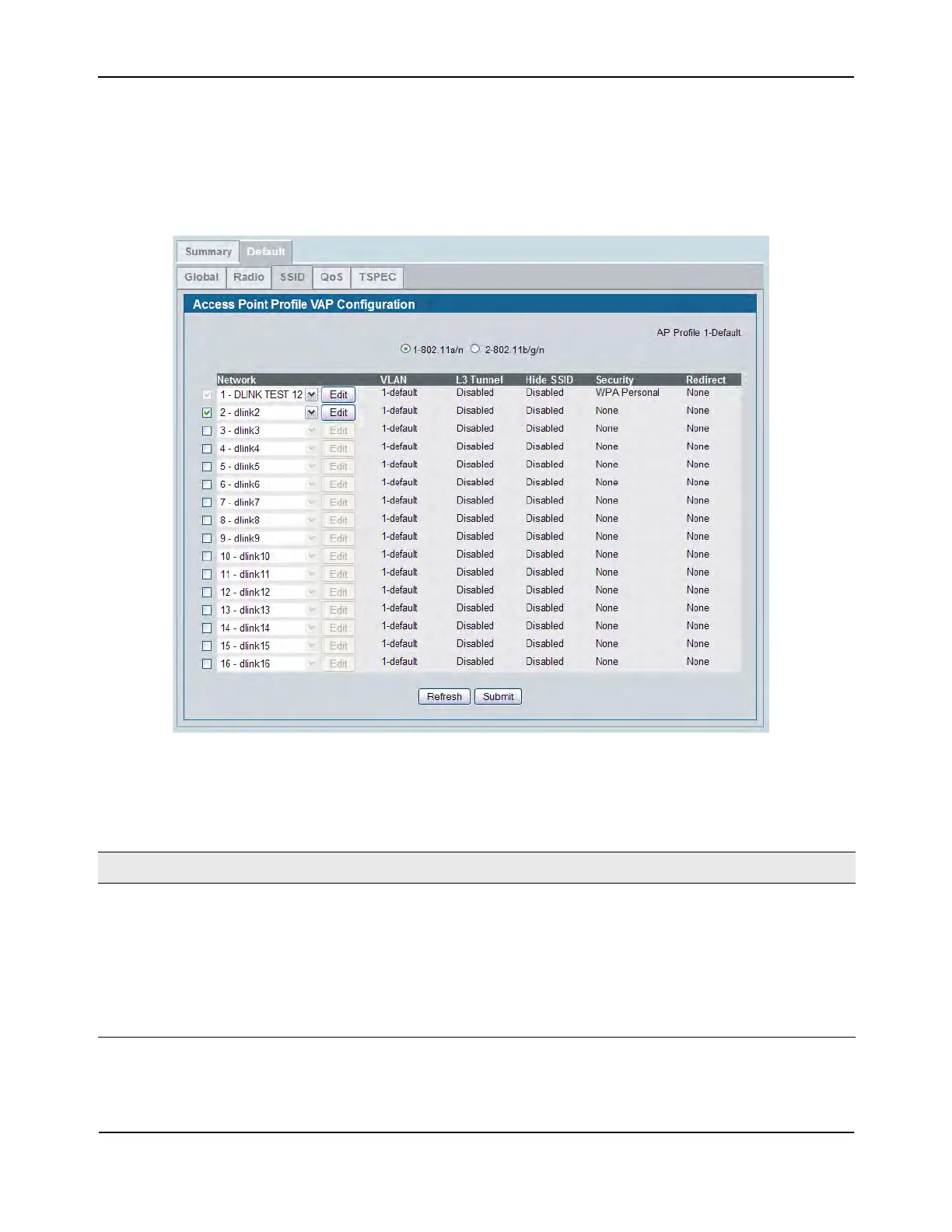

Figure 389: AP Profile VAP Configuration
The following table describes the fields on the Access Point Profile VAP Configuration page.
Table 356: Default VAP Configuration
Field Description
1-802.11a/n
2-802.11b/g/n
From this field, you can select the radio with the settings to configure. Settings for
each radio are configured separately.
By default, Radio 1 operates in IEEE 802.11a/n mode, and Radio 2 operates in IEEE
802.11b/g/n mode. If you change the mode, the labels for the radios change
accordingly. Changes to the settings apply only to the selected radio.
The DWL-3600AP is a single-radio AP. Any settings you configure for Radio 1
(802.11a/n) are not applied to the DWL-3600AP. If the selected Hardware Type ID for
the AP profile is DWL-3600AP, the radio selectors are not available.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
