D-Link DWL-8610AP User Manual

Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 195
D-Link UWS User Manual

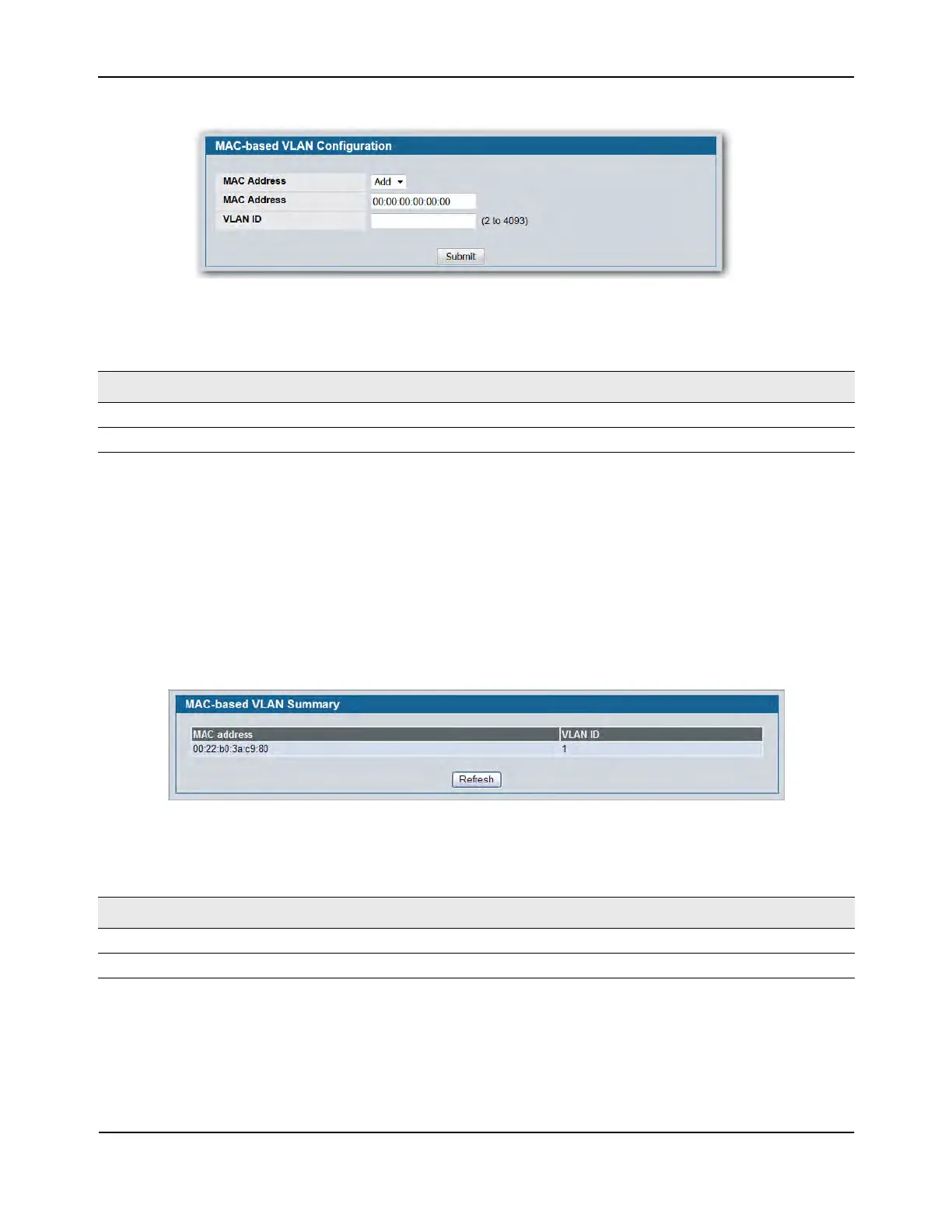

Figure 104: MAC-based VLAN Configuration
• If you make any changes, click Submit to apply the changes to the system.
MAC-based VLAN Summary
Use the MAC-based VLAN Summary page to view information about the MAC-to-VLAN mappings configured
on your system.
To display the MAC-based VLAN Summary page, click Monitoring> VLAN Summary > MAC-based VLAN
Summary in the navigation menu.
Figure 105: MAC-based VLAN Summary
• Click Refresh to reload the page and display the most current information.
Table 90: MAC-based VLAN Configuration Fields
Field Description
MAC Address Specifies the source MAC address to map to a VLAN.
VLAN ID Specifies the VLAN to which the source MAC address is to be bound.
Table 91: MAC-based VLAN Summary Fields
Field Description
MAC Address Specifies the MAC address to map to a VLAN.
VLAN ID Specifies the VLAN to which the MAC is to be bound.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
