D-Link DWL-8610AP User Manual

Configuring RIP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 309
D-Link UWS User Manual
RIP Route Redistribution Configuration
Use the RIP Route Redistribution Configuration page to configure which routes are redistributed to other
routers using RIP. The allowable values for each fields are displayed next to the field. If any invalid values are
entered, an alert message is displayed with the list of all the valid values.
To display the page, click LAN > L3 Features > RIP > Route Redistribution Configuration in the navigation
menu.

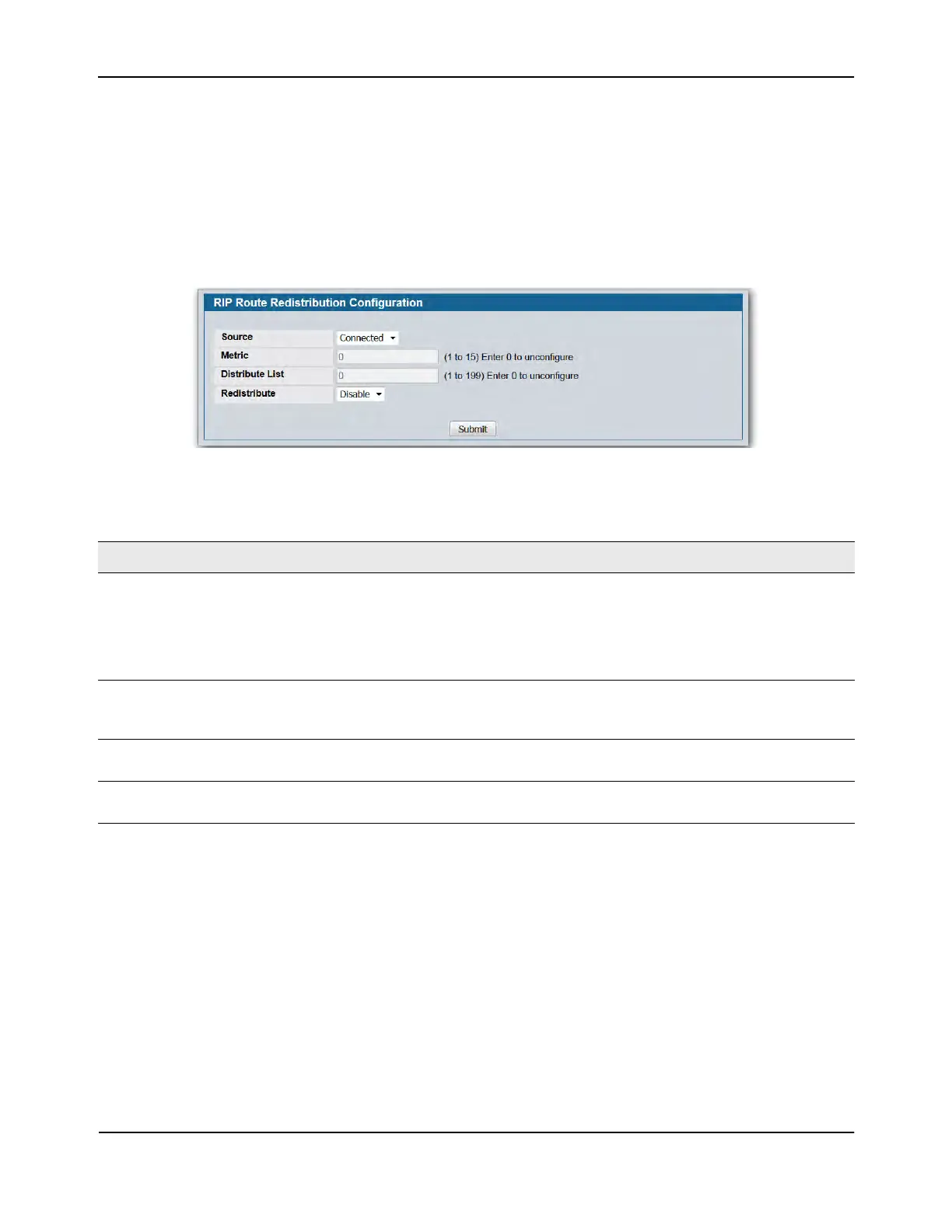

Figure 198: RIP Route Redistribution Configuration
You configure ACLs through the pages under LAN > Access Control ListsIP Access Control Lists. When used
for route filtering, the only fields in an access list that get used are:
• Source IP Address and netmask
• Destination IP Address and netmask
• Action (Permit or Deny)
All other fields (source and destination port, precedence, ToS, etc.) are ignored.
The source IP address is compared to the destination IP address of the route. The source IP netmask in the
access list rule is treated as a wildcard mask, indicating which bits in the source IP address must match the
destination address of the route. (Note that a 1 in the mask indicates a Don’t Care in the corresponding address
bit.)
Table 180: RIP Route Redistribution Configuration Fields
Field Description
Source This select box is a dynamic selector used to configure Source Routes.
Possible values are:
• Static: The route was manually configured.
• Connected: The route was determined automatically because the host is
directly connected.
Metric Sets the metric value to be used as the metric of redistributed routes. This
field is 0 if a metric has not been configured. The range of valid values is (1 to
15).
Distribute List Enter the ACL ID for an access list that filters the routes to be redistributed by
the destination protocol. Only permitted routes are redistributed.
Redistribute The route-redistribution mode for a particular source protocol.By default this
is disabled.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
