Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 479
D-Link UWS User Manual
Managed Access Point Statistics
The managed AP statistics page shows information about traffic on the wired and wireless interfaces of the
access point. This information can help diagnose network issues, such as throughput problems.
The following figure shows the Managed Access Point Statistics page with a managed AP.

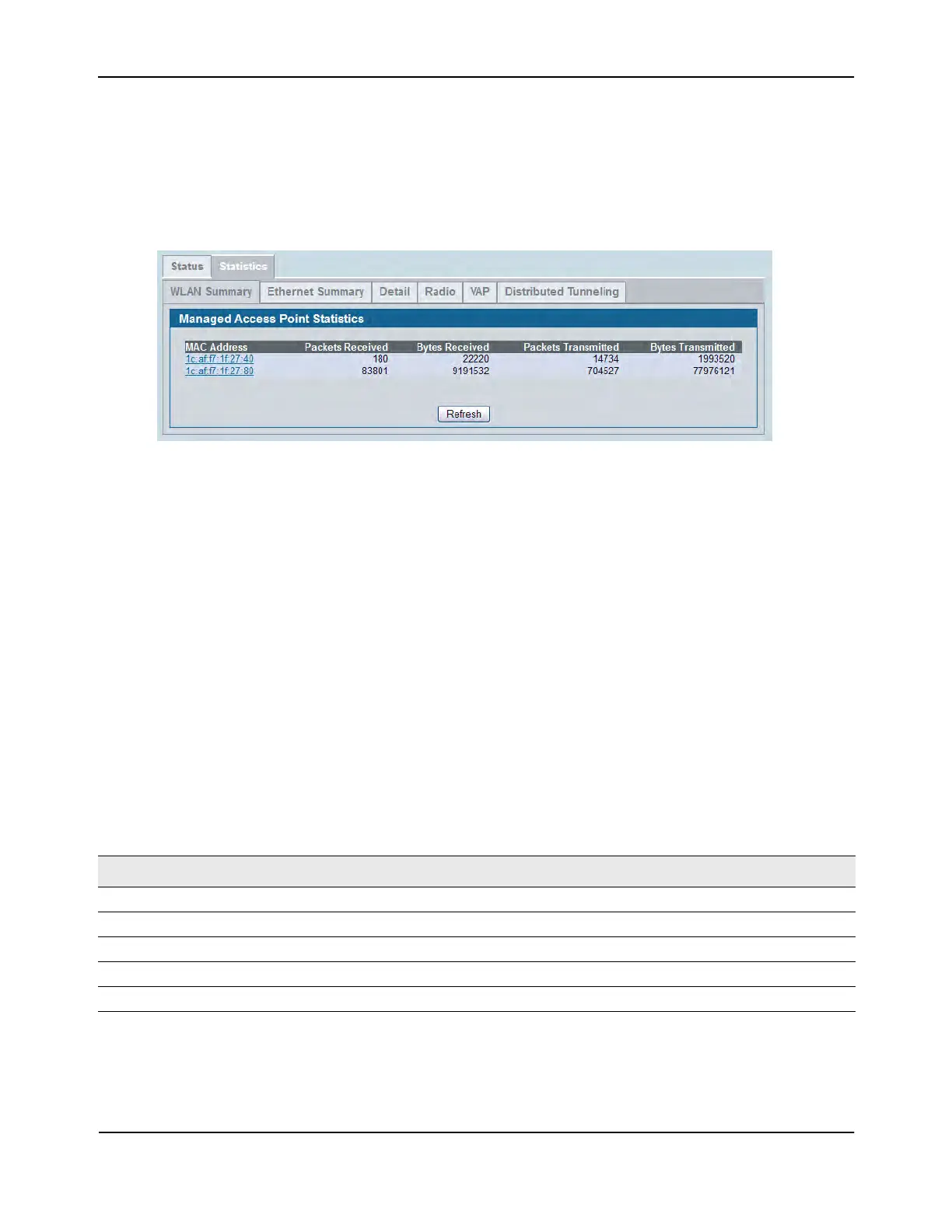

Figure 315: Managed AP Statistics
The following tabs are available from the Managed AP Statistics page:
• WLAN Summary: Shows summary information about the wireless interfaces on each AP the switch
manages.
• Ethernet Summary: Shows summary information about the Ethernet (wired) interfaces on each AP the
switch manages.
• Detail: Shows the number and type of packets transmitted and received on a specific AP.
• Radio: Shows per-radio information about the number and type of packets transmitted and received for a
specific AP.
• VAP: Shows per-VAP information about the number of packets transmitted and received and the number
of wireless client failures for a specific AP.
• Distributed Tunneling: Shows information about the L2 tunnels currently in use on the AP.
On the WLAN Summary and Ethernet Summary pages, click the MAC address of the AP to view detailed
statistics about the AP.
Table 279: Managed Access Point WLAN Summary Statistics
Field Description
MAC Address The Ethernet address of the DWS-4000 Series switch-managed AP.
Packets Received Total packets received by the AP on the wireless network.
Bytes Received Total bytes received by the AP on the wireless network.
Packets Transmitted Total packets transmitted by the AP on the wireless network.
Bytes Transmitted Total bytes transmitted by the AP on the wireless network.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
