D-Link DWL-8610AP User Manual

Virtual Router Redundancy Protocol (VRRP)
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 332
D-Link UWS User Manual
Virtual Router Statistics
Use the Virtual Router Statistics page to display statistics for a specified virtual router.
To display the page, click LAN > Monitoring > L3 Status > Virtual Router Statistics in the navigation tree.
Figure 217 shows the fields on the Virtual Router Statistics page for a switch that has one or more virtual
routers configured.

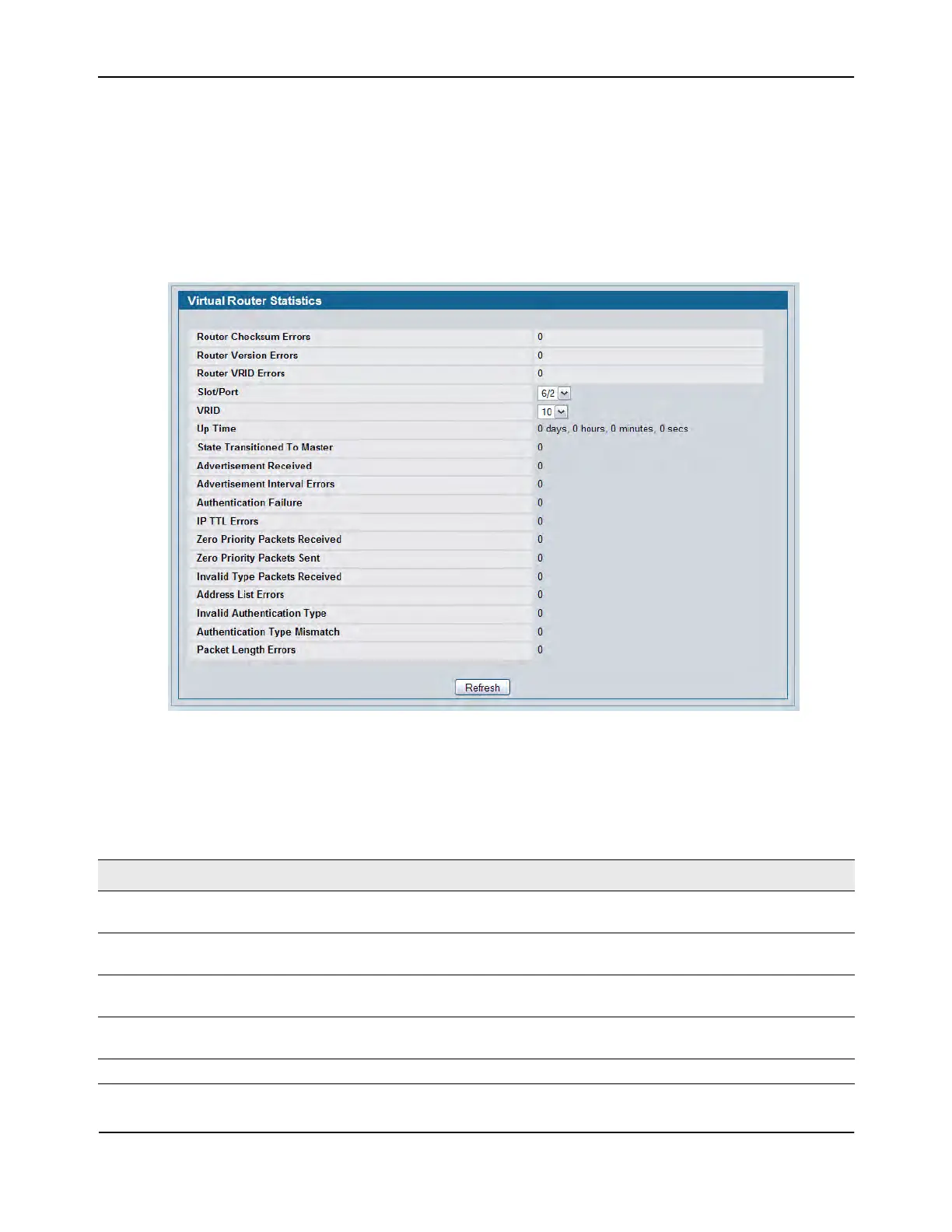

Figure 217: Virtual Router Statistics—Virtual Router Configured
The Virtual Router Statistics page contains the fields listed below. Many of the fields display only when there
is a valid VRRP configuration.
Table 198: Virtual Router Statistics Fields
Field Description
Router Checksum Errors The total number of VRRP packets received with an invalid VRRP checksum
value.
Router Version Errors The total number of VRRP packets received with an unknown or unsupported
version number.
Router VRID Errors The total number of VRRP packets received with an invalid VRID for this virtual
router.
VRID and Slot/Port Select the existing Virtual Router, listed by interface number and VRID, for
which you want to display statistical information.
VRID the VRID for the selected Virtual Router.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
