D-Link DWL-8610AP User Manual

Captive Portal Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 402
D-Link UWS User Manual
Table 232 describes the fields displayed on the CP Global Status page.
Viewing CP Activation and Activity Status
The CP Activation and Activity Status page provides information about each CP configured on the switch.

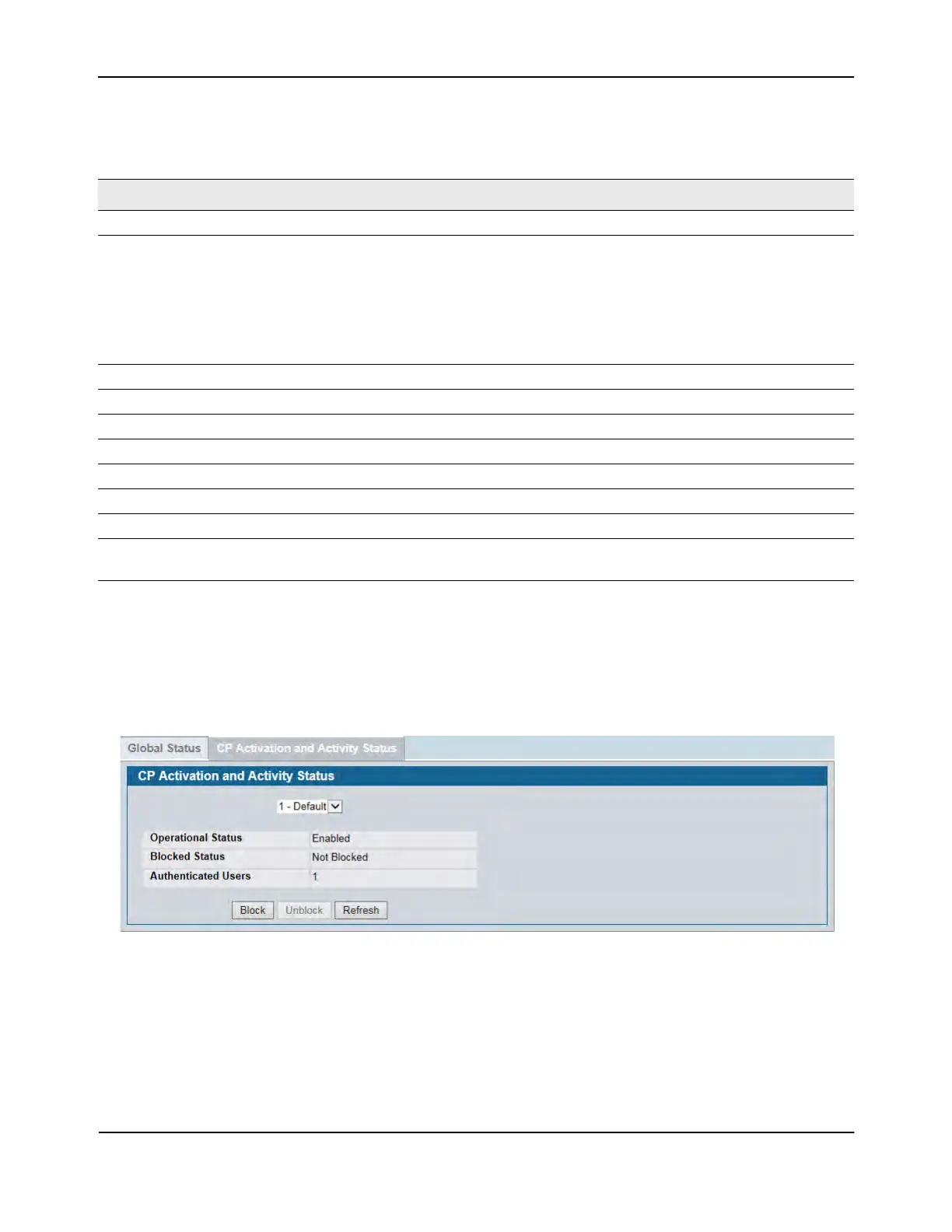

Figure 272: CP Activation and Activity Status
The CP Activation and Activity Status page has a drop-down menu that contains all captive portals configured
on the switch. When you select a captive portal, the activation and activity status for that portal displays.
Table 232: Global Captive Portal Status
Field Description
CP Global Operational Status Shows whether the CP feature is enabled.
CP Global Disable Reason Indicates the reason for the CP to be disabled, which can be one of the
following:
• None
• Administratively Disabled
• No IPv4 Address
• Routing Enabled, but no IPv4 routing interface
Supported Local Users Shows the number of entries that the Local User database supports.
Configured Local Users Shows the number of users configured in the system.
System Supported Users Shows the number of authenticated users that the system can support.
CP IP Address Shows the captive portal IP address
Supported Captive Portals Shows the number of supported captive portals in the system.
Configured Captive Portals Shows the number of captive portals configured on the switch.
Active Captive Portals Shows the number of captive portal instances that are operationally enabled.
Authenticated Users Shows the number of users currently authenticated to all captive portal
instances on this switch.

D-Link DWL-8610AP Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.497, 4.9 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Wi-Fi data rate (max)	1750 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Flash memory	64 MB
Internal memory	512 MB
Internal	No
Certification	CE, FCC, IC
Product color	Gray
Ethernet LAN (RJ-45) ports	2
Antennas quantity	6
Antenna gain level (max)	6.5 dBi
Power supply type	PoE, DC
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	265 mm
Package width	238 mm
Package height	112 mm
Package weight	1160 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1955 mm
Pallet gross weight (air)	385580 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	280 mm
Shipping (inner) case height	260 mm
Shipping (inner) case length	585 mm
Shipping (inner) case weight	8740 g
Shipping (inner) case net weight	5800 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	171 mm
Width	198 mm
Height	40 mm
Weight	240 g
