2008T Troubleshooting Guide
P/N 490292 Rev. A

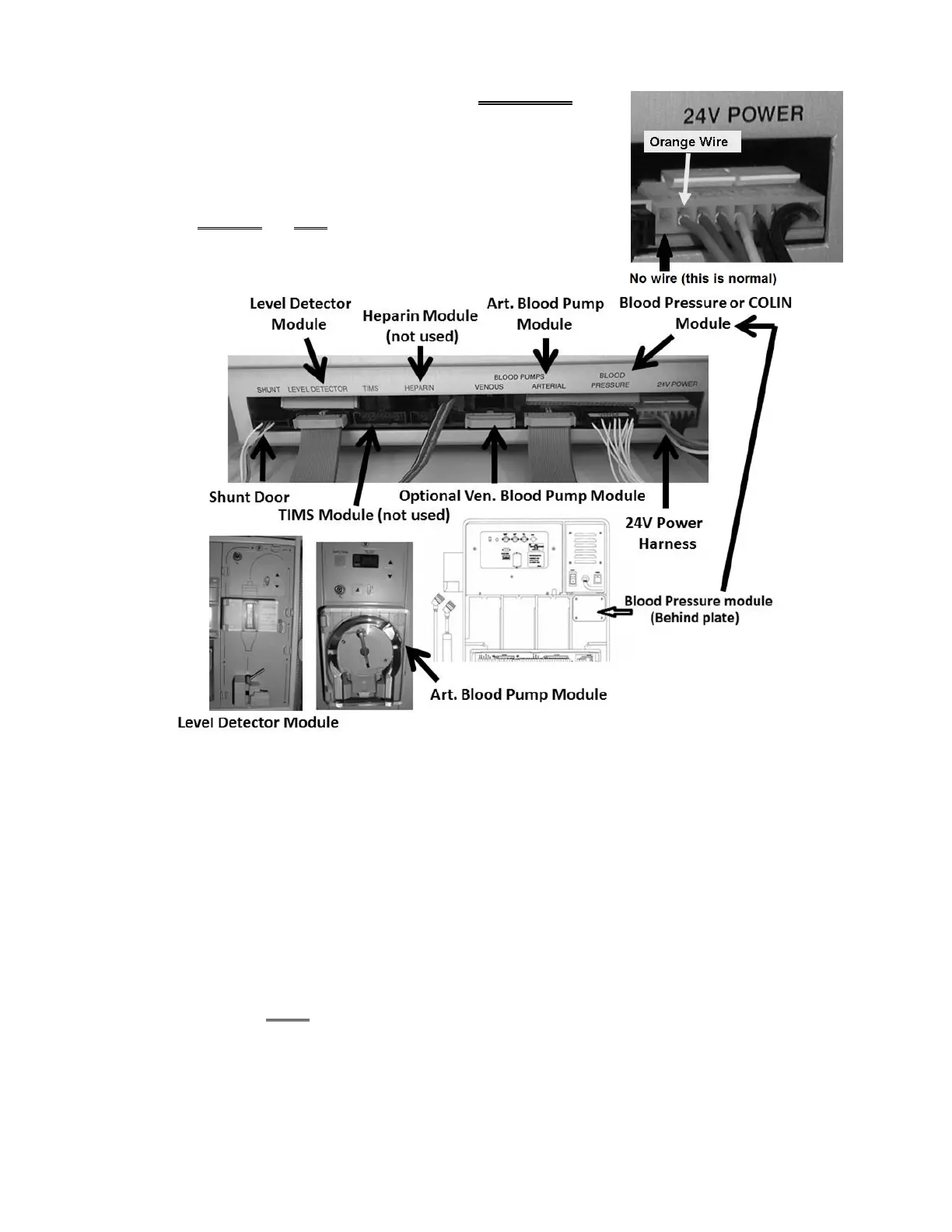

3) To avoid pulling cables loose, gently open the CARD CAGE:
a) Figure right, ENSURE the 24V POWER harness is plugged in
PROPERLY with the orange wire to the left!
b) Figure below, trace the cable from the Blood Pressure Module
to ENSURE it is NOT reverse connected with another module!
c) Inspect the entire length of ALL module cables for damage!
4) Inside the card cage, perform parts a through f below:
a) ENSURE all ribbon cables are plugged in PROPERLY.
b) Inspect the entire length of ALL cables for damage.
c) Using air, clear excessive dust from the surface of the motherboard*. *To LOCATE the motherboard
refer to Figure 4A (page 10).
d) ENSURE no foreign objects (screws, etc.) are laying on the surface of the motherboard!
e) Using a flashlight, inspect the surface of the motherboard for corrosion or burning!
f) Press down HARD on ALL circuit boards to ensure good connections to the motherboard.
5) CAUTION! Close the card cage!
Part 6 next page
