2008T Troubleshooting Guide
P/N 490292 Rev. A
bibag Interface Board INSTRUCTIONS:
A) TURN THE MACHINE OFF!

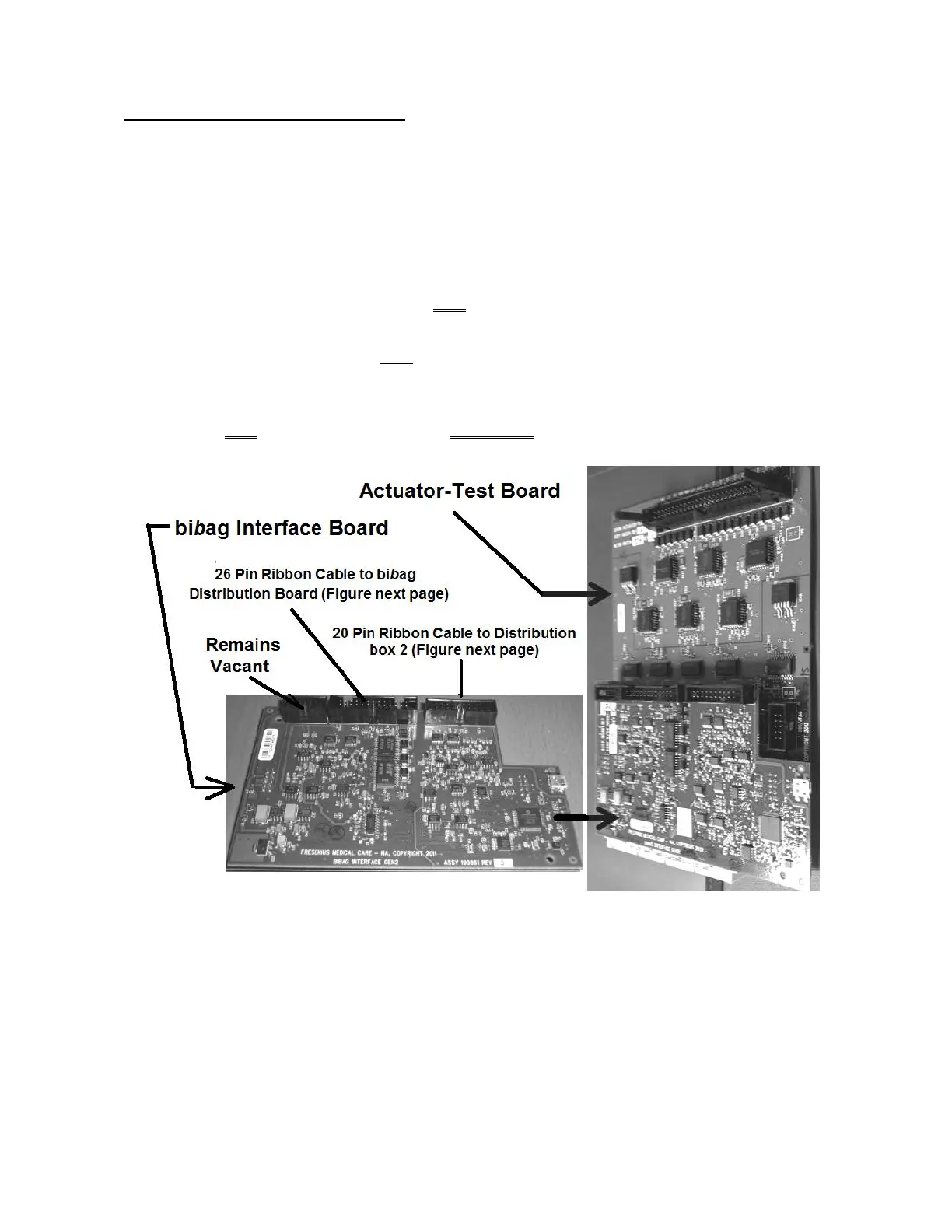

B) Figure below, inside the card cage, the bibag Interface circuit board piggybacks onto the Actuator-Test
Board (2
nd
circuit board from the left)!
C) ENSURE the bibag Interface Board is connected securely to the Actuator-Test Board! If not this may
be the problem!
D) ENSURE the bibag Interface Board’s 26 AND 20 Pin Ribbon cables are plugged in securely! If not this
may be the problem!
E) Using a flashlight, inspect the 26 AND 20 Pin Ribbon cables for signs of damage. If damage is located
this may be the problem!
F) If the Troubleshooting Guide has instructed you to ‘swap in’ the bibag Interface board use ESD
protection AND ENSURE the new board is known good!
