2008T Troubleshooting Guide
P/N 490292 Rev. A
T- 1.0.255 ‘MEASURED’ TEMPERATURE REMAINS BETWEEN 35.1 AND 38.9° C

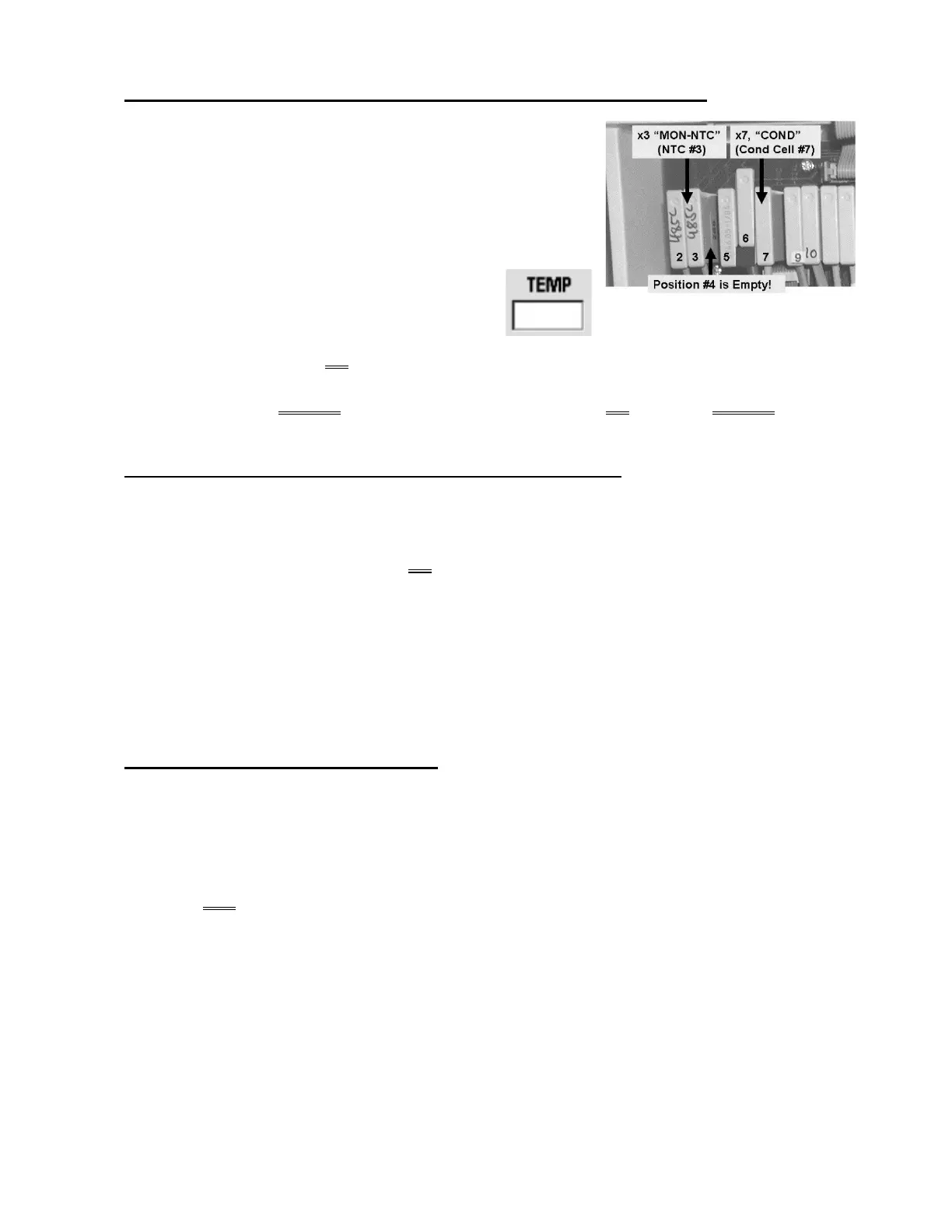

a) Figure right, if a 274 Ω plug was previously placed at the Cond
Cell’s distribution board position, “X7, COND”, remove it and
RETURN the Cond Cell’s connector.
b) If a 6.04 KΩ plug was previously placed at NTC #3’s position,
“MON-NTC”, remove it then, avoiding the VACANT position
on the right (“PH-PR”), RETURN NTC #3’s connector to the
2
nd
position from the left,
c) Call debug screen 4. Is TEMP (lower left) 4.0 or
more?
Yes TEMP is 4.0 OR more! See procedure number T- 1.0.26 (page 253).
No TEMP is less than 4.0. NTC #3* is plugged in incorrectly OR is bad. *To LOCATE NTC #3
refer to Figure 42 (page 236).
T- 1.0.26 TEMP IS 4.0 OR MORE / VERIFY TEMPERATURE DISPLAY
From the Home screen, the [Temperature] window is, TWO (2) possible scenarios:
1) IF (and ONLY if) less than 35.1 OR more than 38.9° C: Proceed to
page 320, procedure
number T- 7.0.0.
2) IF between 35.1 and 38.9° C: Is the external indicator’s ‘bob’ moving?
Yes ‘Bob’ moving! See procedure number T- 1.0.27 (page 253)T1026.
No ‘Bob’ IS NOT moving! Return to (ABOVE) procedure number T- 1.0.132 (
page 243).
T- 1.0.27 ‘BOB’ IS MOVING UP AND DOWN
Is the machine’s [Temperature] window within +/- 0.3 of the meter’s reading?
Yes Within +/- 0.3° C of each other! See procedure number T- 1.0.28 (page 254).
No NOT within +/- 0.3° C of each other! Proceed to
page 320, procedure number T- 7.0.0.
