Fresenius Medical Care 2008T Troubleshoot Manual

2008T Troubleshooting Guide
P/N 490292 Rev. A
Page 210
TROUBLESHOOTING A VALVE
A) To avoid damage, turn the machine OFF!
B)
Check only the valve as previously noted!
C) See procedure number TSV- 1.0.0 below:
TSV- 1.0.0 CHECK DISTRIBUTION BOARD CONNECTIONS
a) Per the Figure below, remove the distribution board cover.
b) TWO (2) checks to ENSURE:
Check #1: The ACTUATOR CABLE is plugged in SECURELY AND is not damaged!
Check #2: The NOTED valve is plugged PROPERLY into its position. If not, this most likely is the
problem!

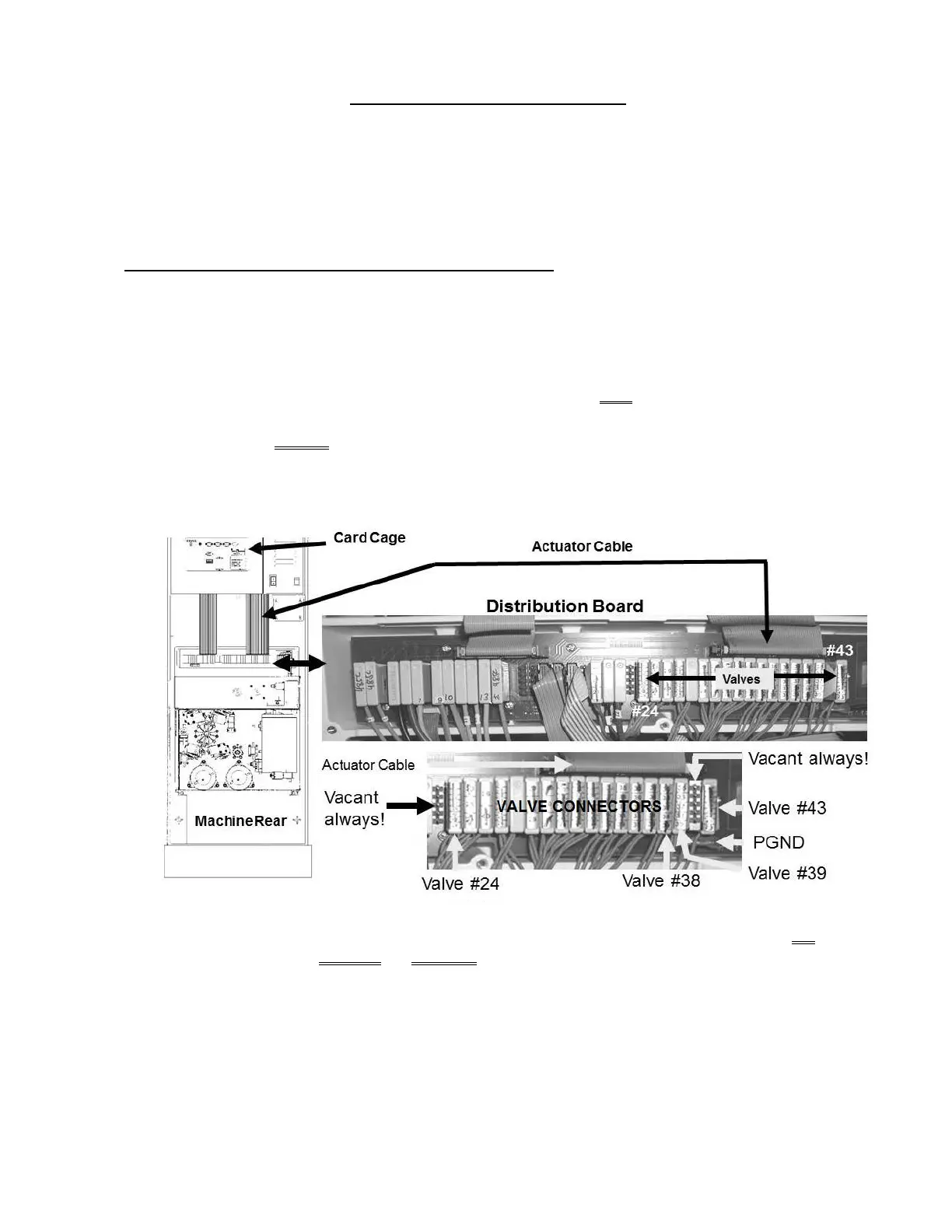

Figure 34 – Distribution Board
c) Before continuing to procedure number TSV- 2.0.0 (page 212), refer to Figure 35 (page 211) OR
Figure 36 (page 211) to LOCATE the NOTED valve.
