REP 12.101-171
Repairs/Adjustments
REP 12.101-171 Paddle Wheel
Parts List on PL 12.115
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
NOTE: This procedure shows the replacement of the paddle wheels with the compiler paddle
unit installed. If necessary, remove the compiler paddle unit before replacing the paddle
wheels. Refer to REP 12.49-171.
1. Rotate the paddle until the two rubber blades are visible.
CAUTION
To ensure that the correct home position of the paddle wheel shaft is maintained, install the
new paddle wheels one at a time.
CAUTION
Ensure all defective paddles are replaced with a paddle of the same type.The two outer pad-
dles are a different type to the three inner paddles.
2. Squeeze the two rubber blades together and pull to remove the paddle wheel from the
shaft, Figure 1.

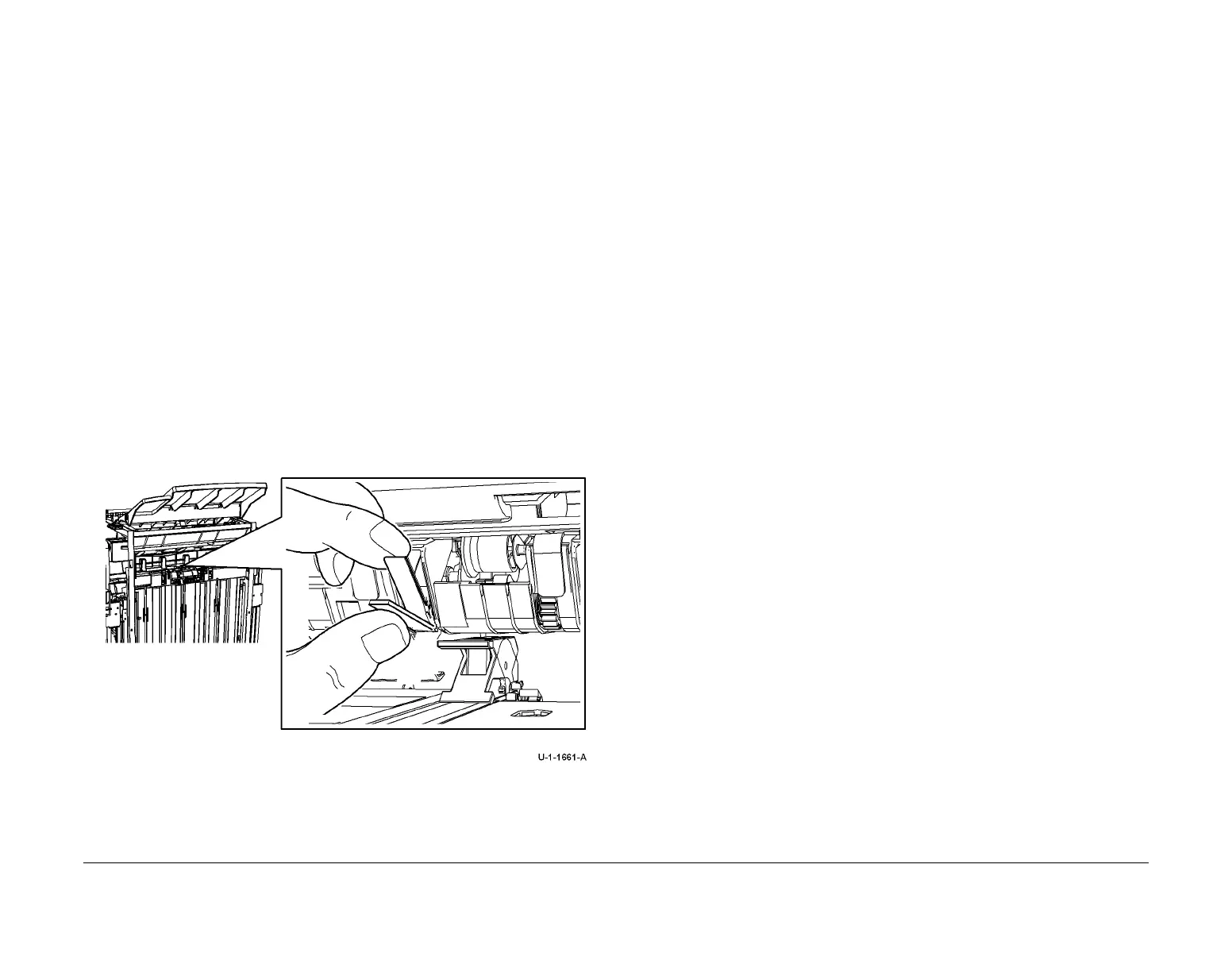

Figure 1 Paddle removal
Replacement
1. Hold the paddle wheel by the two rubber blades and clip onto the shaft.
