7. Figure 2. At the rear of the HVF, remove the Inserter guide roll.
Figure 2 Inserter guide roll removal
Replacement
The replacement procedure is the reverse of the removal procedure.
REP 12.42-171 HVF Buffer Pocket Roll
Parts List on PL 12.130.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.
5. Remove the punch unit, or the punch unit guide, as appropriate.

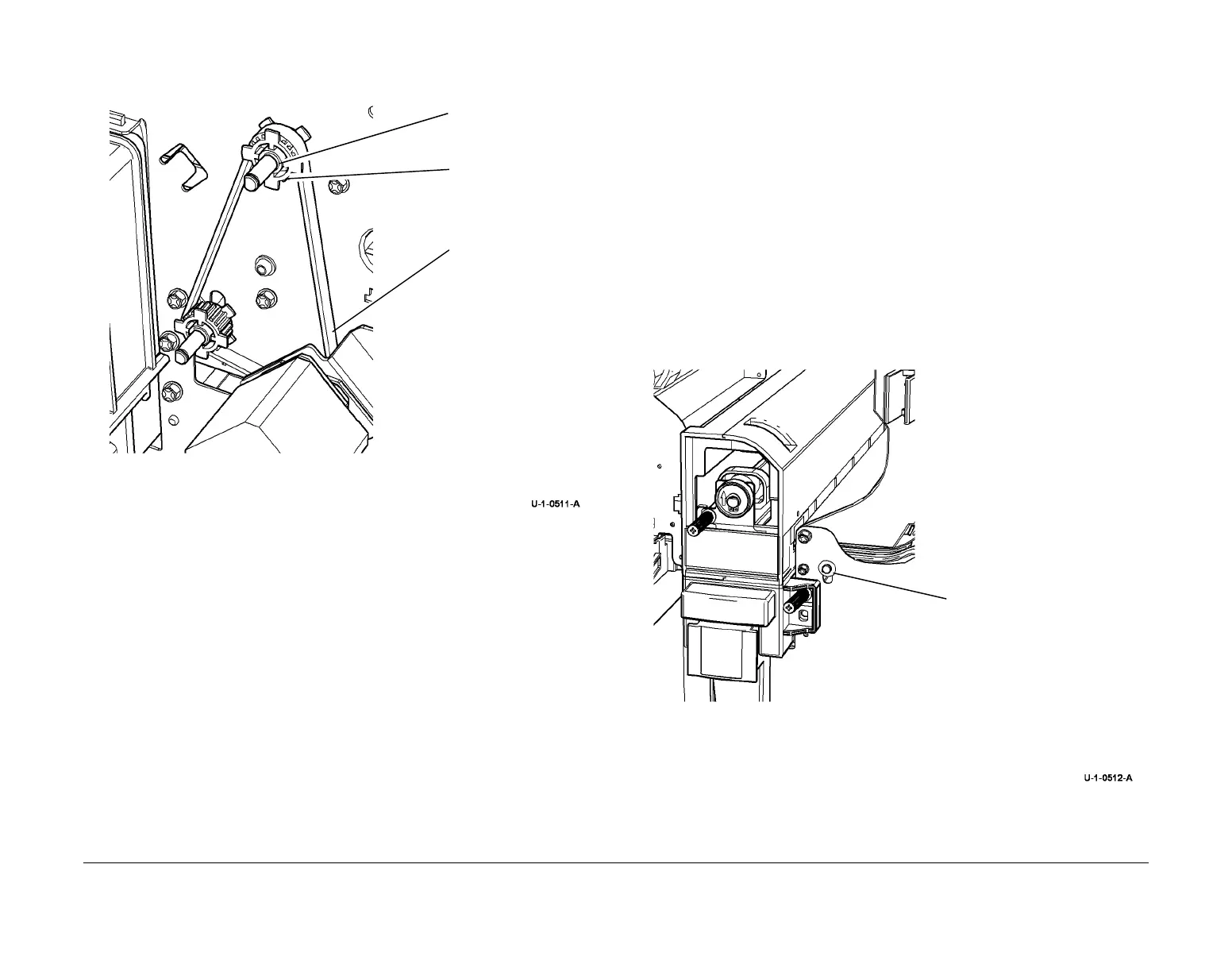

6. Figure 1. At the front of the HVF, remove the circlip and bush.
Figure 1 Circlip and bush removal.
REAR VIEW
1
Remove the circlip.
2
Slide the pulley and the
bush along the shaft.
3
Slip the belt off of
the pulley.
4
Remove the pulley and
the bush.
5
Remove the
Inserter guide roll.
1
Remove the circlip
and the bush.
