February 2013
4-95
ColorQube® 9303 Family
REP 10.22
Repairs/Adjustments
REP 10.22 Upper Baffle
Parts List on PL 10.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Do not clean the stripper blade. The stripper blade is very sharp and can cause injury. If
the stripper blade is dirty a new blade must be installed.
WARNING
Take care during this procedure. The stripper blade is very sharp and can cause injury.
CAUTION
Use care when working near the drum. The drum can be damaged easily, which will cause
print quality defects.
1. Open the front door.
2. Remove the inner cover, PL 81.11 Item 2.
3. Remove the exit paper path, REP 10.20.

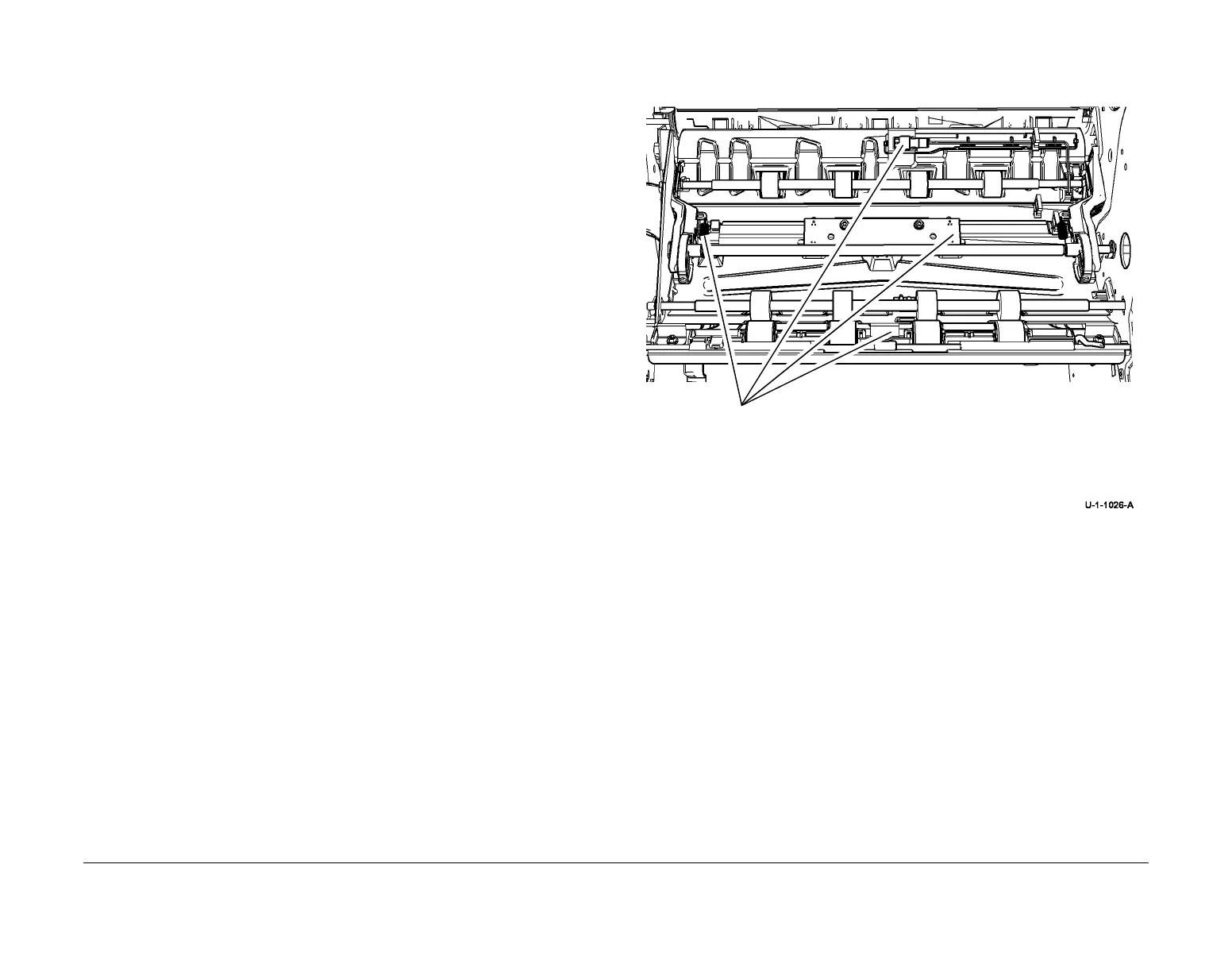

4. Prepare to remove the upper baffle, Figure 1.
Figure 1 Preparation
5. Unlock and fully open the stripper gate, GP 31.
1
Disconnect 3 sensors and LED PWB.
To Next Page
