Xerox ColorQube 9303 Series Service Manual

February 2013
5-53
ColorQube® 9303 Family
PL 12.210
Parts Lists

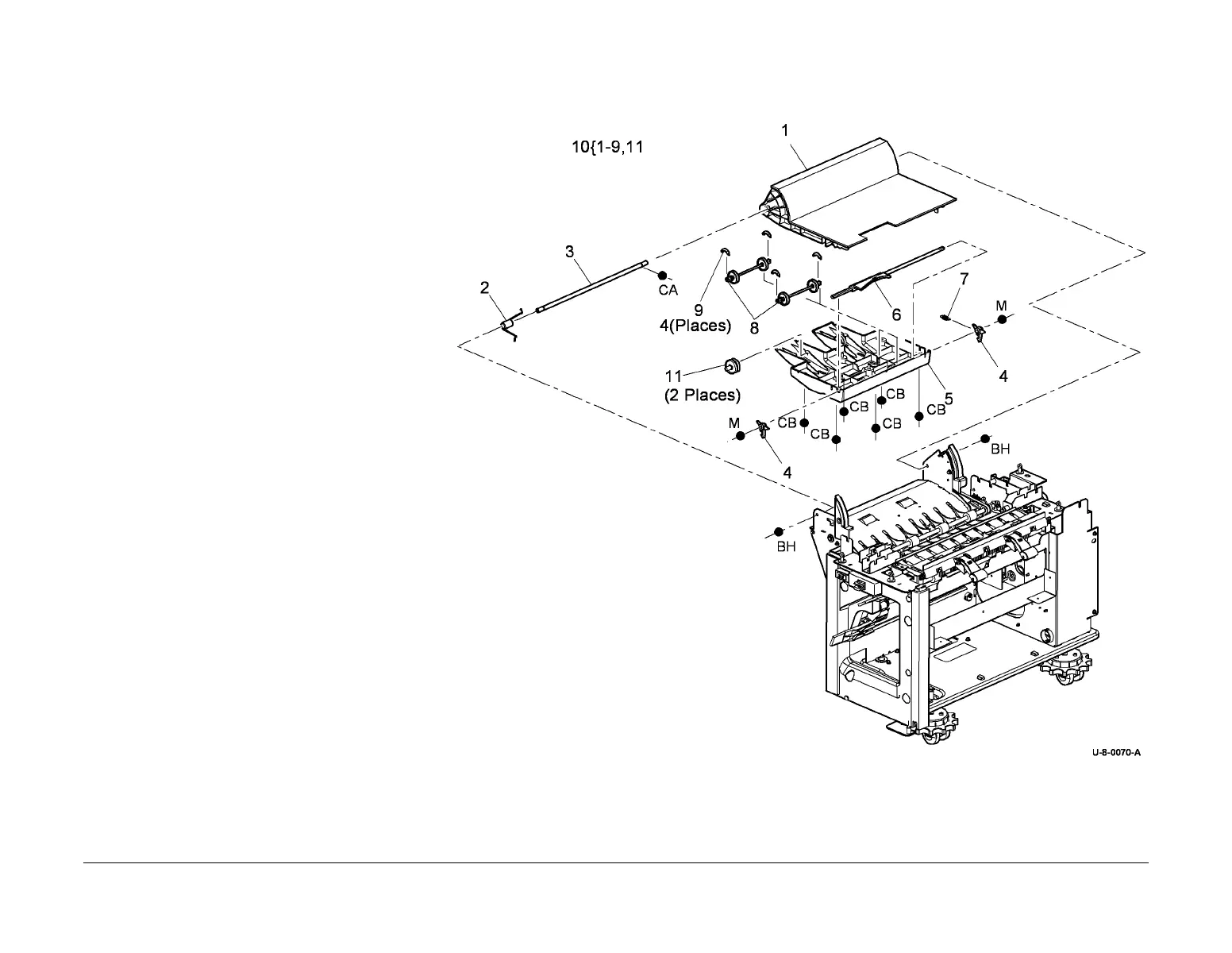

PL 12.210 Tri-Folder Top Door Cover
Assembly
Item Part Description
1 – Top access cover (P/O PL 12.210
Item 10)
2 – Top cover door assembly spring (P/
O PL 12.210 Item 10)
3 – Top cover door assembly shaft (P/O
PL 12.210 Item 10)
4 – Latch hook (P/O PL 12.210 Item
10)
5 – Top door cover assembly base (P/O
PL 12.210 Item 10)
6 – Latch handle (P/O PL 12.210 Item
10)
7 – Latch spring (P/O PL 12.210 Item
10)
8 059K58690 Idler assembly (REP 12.73-171)
9 – Idler spring (P/O PL 12.210 Item
10)
10 848K11680 Top cover door assembly (REP
12.73-171)
11 – Idler assembly (P/O PL 12.210 Item
10)
