February 2013
5-93
ColorQube® 9303 Family
PL 82.15
Parts Lists

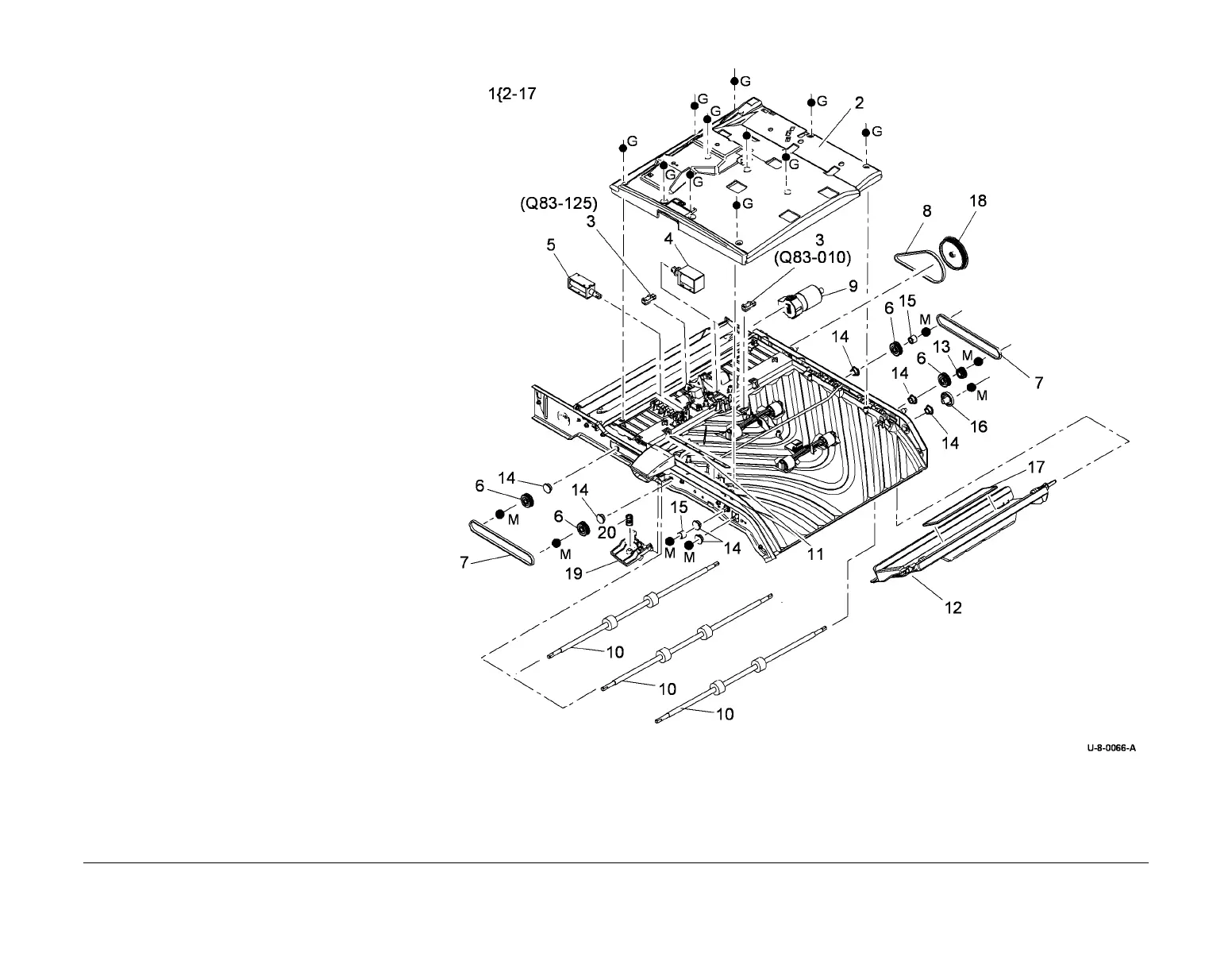

PL 82.15 Horizontal Paper Path
Item Part Description
1 038K23501 Horizontal paper path assembly
(REP 83.1)
2 – Top cover (P/O PL 82.15 Item 1)
3 130E12950 Duplex sensor (17)(Q83-010)(REP
83.3)/Duplex end sensor (14)(Q83-
125)(REP 83.2)
4 121E26510 Nip 'C' release solenoid (SOL82-
007) (REP 83.2)
5 121E26500 HPP diverter solenoid (SOL83-004)
(REP 83.2)
6 020K20480 Pulley M6 (21T)
7 023E31410 Horizontal transport drive belt front
(REP 83.5)
8 023E31490 Drive belt M6
9 127K62291 Horizontal transport motor (M6)
(MOT82-003) (REP 83.4)
10 059E10740 Nip R,C and Q takeaway rolls (REP
83.5)
11 – Horizontal illuminator (Q82-005) (P/
O PL 82.15 Item 1)
12 – Heatshield (P/O PL 82.15 Item 1)
13 807E29170 Heatshield lift gear
14 – Bearing (Not spared)
15 – Spacer (Not spared)
16 807E29160 Heatshield sector gear
17 – Reg/Preheat illuminator PWB (P/O
PL 82.15 Item 12)
18 020E53880 Pulley M6 (80T)
19 868E53910 Release latch
20 – Spring (Not spared)
To Next Page
