February 2013
4-246
ColorQube® 9303 Family
REP 62.2, REP 62.3
Repairs/Adjustments
REP 62.2 Top Cover
Parts List on PL 62.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the DADH, REP 5.19.
2. Remove the scanner module, REP 62.1.
3. Remove the top cover, Figure 1.

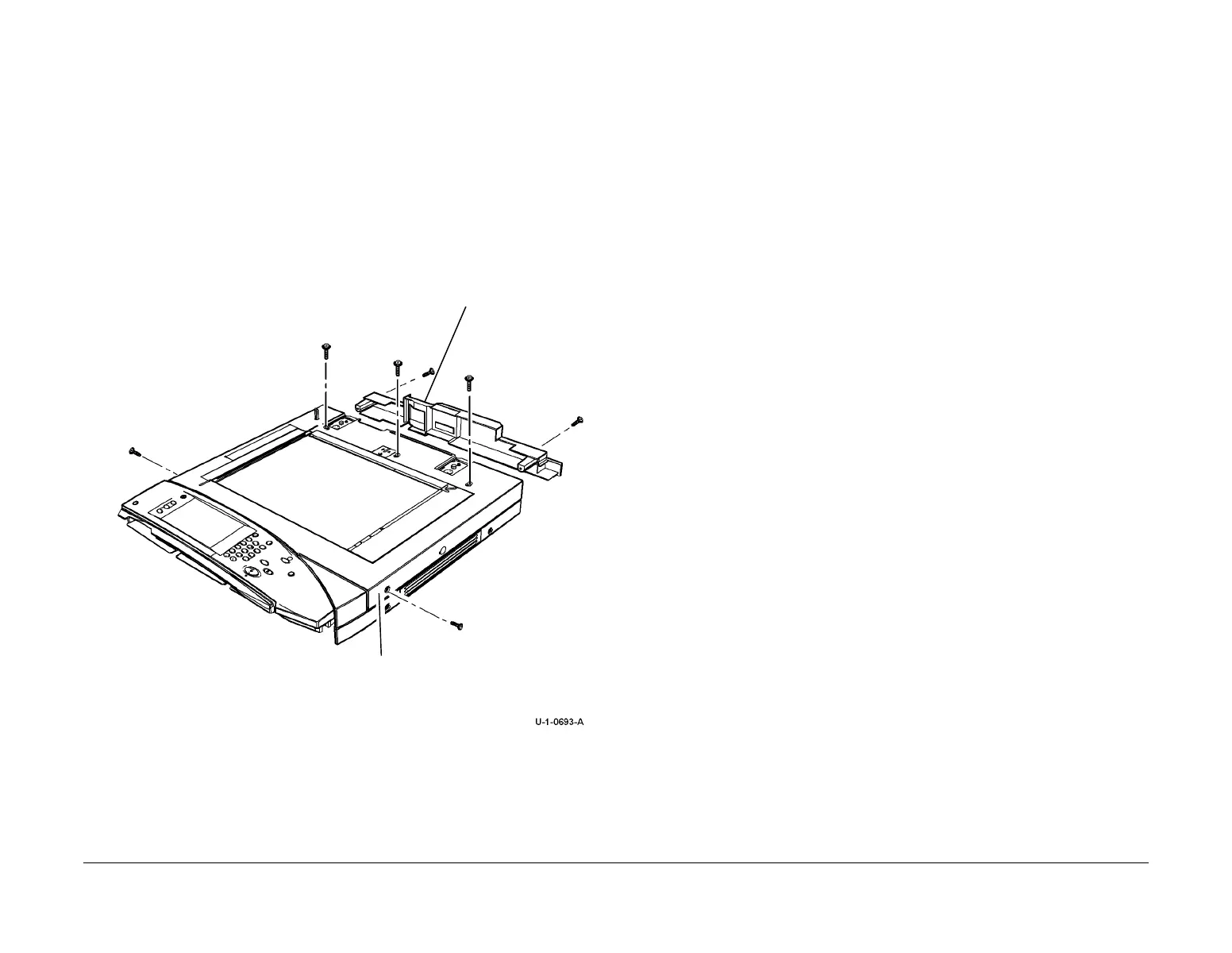

Figure 1 Top cover removal
Replacement
1. The replacement procedure is the reverse of the removal procedure.
2. Perform the following procedures:
• ADJ 62.1 Optics Cleaning.
• dC609 Document Glass Registration.
REP 62.3 CVT Glass, CVT Ramp and Document Glass
Assembly
Parts List on PL 62.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the top cover, REP 62.2.
2. Remove the CVT glass, PL 62.10 Item 3.
3. Remove the CVT ramp and document glass assembly, Figure 1.
Remove the scanner
rear cover (2 Screws)
2
Remove the top cover (5
Screws).
To Next Page
