ColorQube® 9303 Family
REP 75.2, REP 75.3
Repairs/Adjustments
Figure 2 Remove the sensor
Replacement
1. The replacement is the reverse of the removal procedure.
2. Check that the harness routing is correct, Figure 1.
REP 75.3 Tray 5 Down Sensor
Parts List on PL 75.68
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present can cause injury.
1. Remove the rear cover, REP 75.8.
2. Remove the tray 5 down sensor, Figure 1.

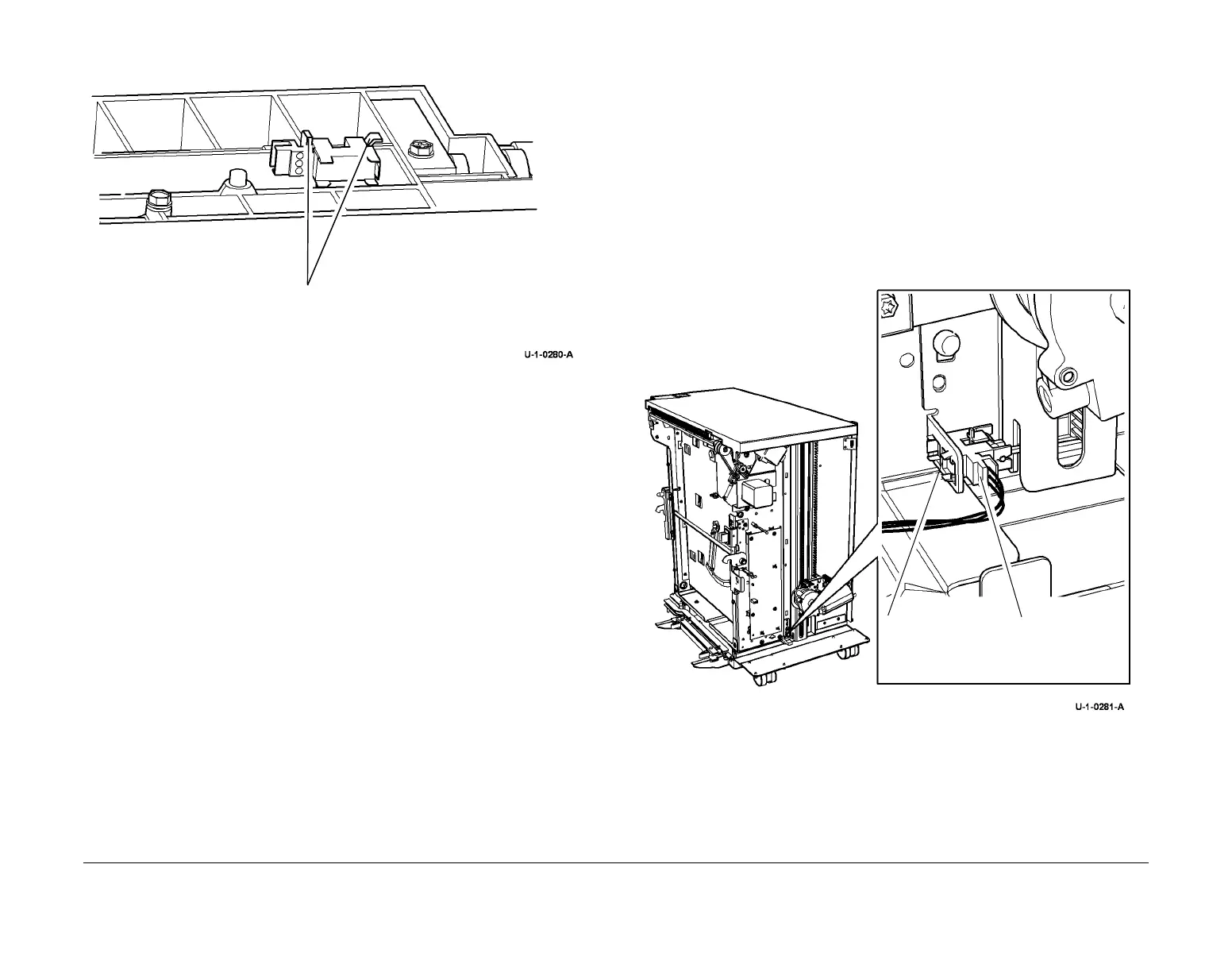

Figure 1 Remove the sensor
Replacement
The replacement is the reverse of the removal procedure.
Press the tabs to release the sensor
1
Disconnect the
harness
2
Remove sensor from
bracket
