ColorQube® 9303 Family
PL 5.35
Parts Lists

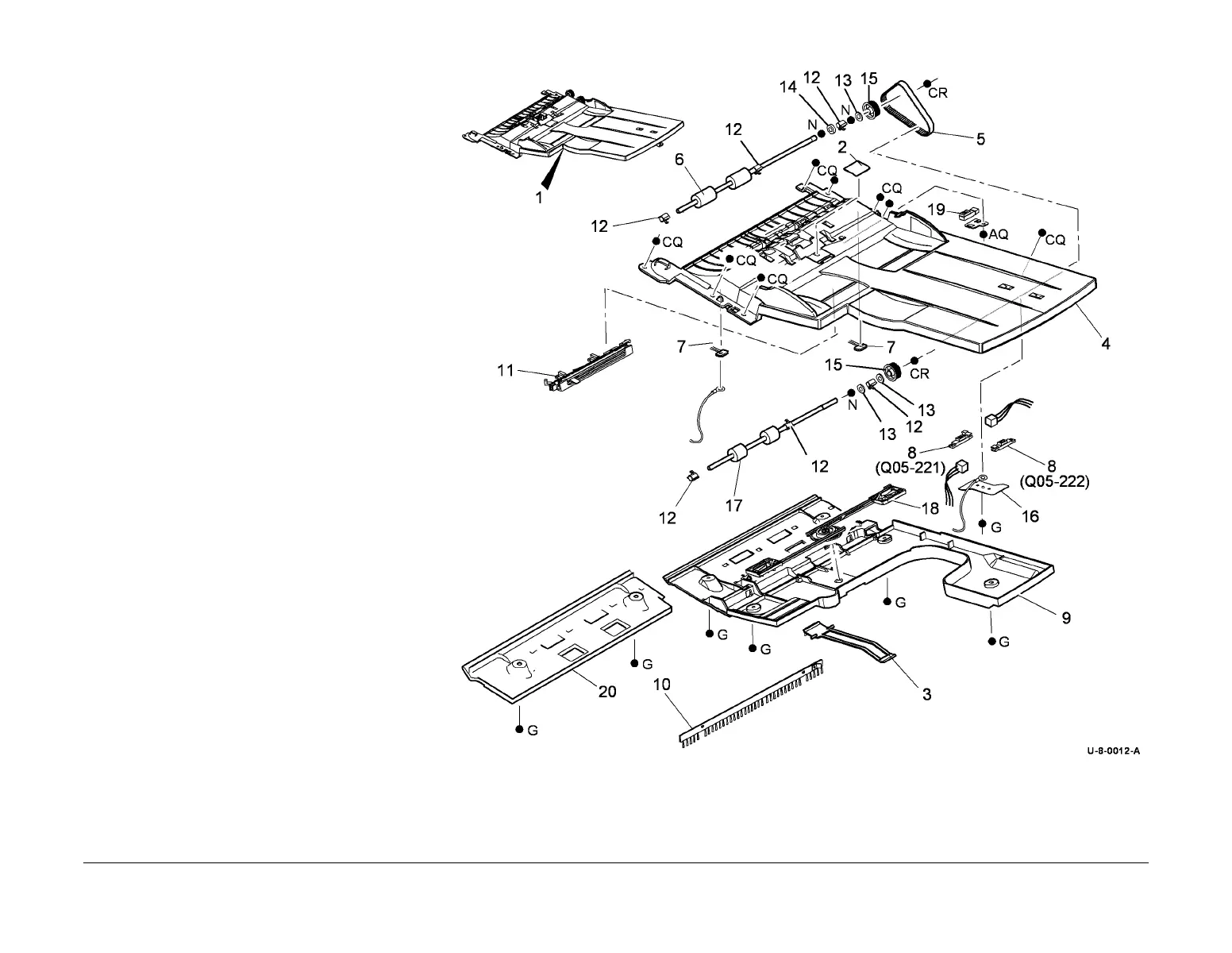

PL 5.35 Input Tray Assembly
Item Part Description
1 050K67465 Input tray assembly (complete)
(REP 5.4)
2 004K00971 Pad
3 031E11310 Restack arm
4 050E22922 Input tray
5 – Feed Motor Drive Belt (86T) (ADJ
5.1) (Not spared)
6 059K84630 Takeaway roll assembly (REP 5.6)
7 125E00430 Static eliminator (small) (REP 5.17)
8 130E18340 DADH Tray size sensor 1 (Q05-
221)/DADH Tray size sensor 2
(Q05-222) (See NOTE) (REP 5.9)
9 – Lower cover (right) (P/O PL 5.35
Item 1)
10 115K02540 Static eliminator (large)
11 103K01511 DADH width sensor
(Potentiometer) (Q05-095) (REP
5.16)
12 – Bearing (P/O PL 5.35 Item 1)
13 014E61020 Spacer (black)
14 – Nylon washer (P/O PL 5.35 Item 1)
15 – Pulley (P/O PL 5.35 Item 1)
16 – Sensor bracket (P/O PL 5.35 Item
1)
17 059K43920 Exit roll assembly (REP 5.13)
18 – Input guide rack assembly (P/O PL
5.35 Item 1)
19 130E11200 DADH Document sensor (Q05-102)
20 – Lower cover (left) (P/O PL 5.35
Item 1)
NOTE: This item is also supplied as a pair as a kit PL 31.11
Item 17.
