February 2013
5-80
ColorQube® 9303 Family
PL 75.64
Parts Lists

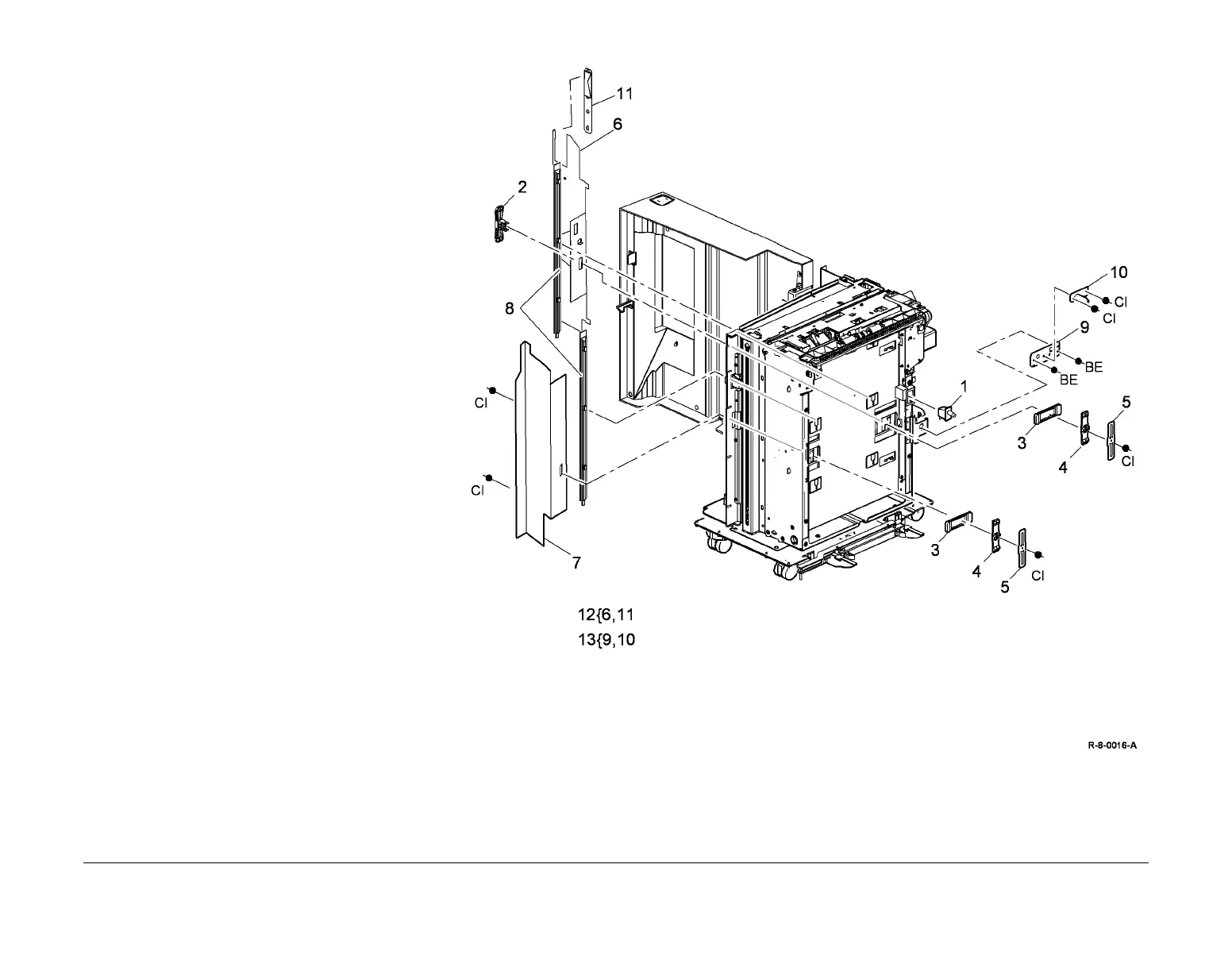

PL 75.64 Tray 5 Guides
Item Part Description
1 110K21080 Tray 5 docking interlock switch
(S75-017)
2 – Handle latch (Not spared)
3 – Latch spacer (Not spared)
4 – Slide latch (Not spared)
5 – Spring leaf (Not spared)
6 – Rear guide (P/O PL 75.64 Item 12)
7 – Front guide assembly (Not spared)
8 038E34401 Guide strip
9 – Adjustment plate (Not spared)
10 – Interlock guide (Not spared)
11 – Rear guide assembly spring (P/O
PL 75.64 Item 12)
12 038K17713 Rear guide assembly
13 029K04680 Docking pin assembly
To Next Page
