February 2013
4-43
ColorQube® 9303 Family
REP 5.5, REP 5.6
Repairs/Adjustments
Replacement
The replacement is the reverse of the removal procedure. Make sure that the torsion springs
and harness are in the correct position, Figure 4.

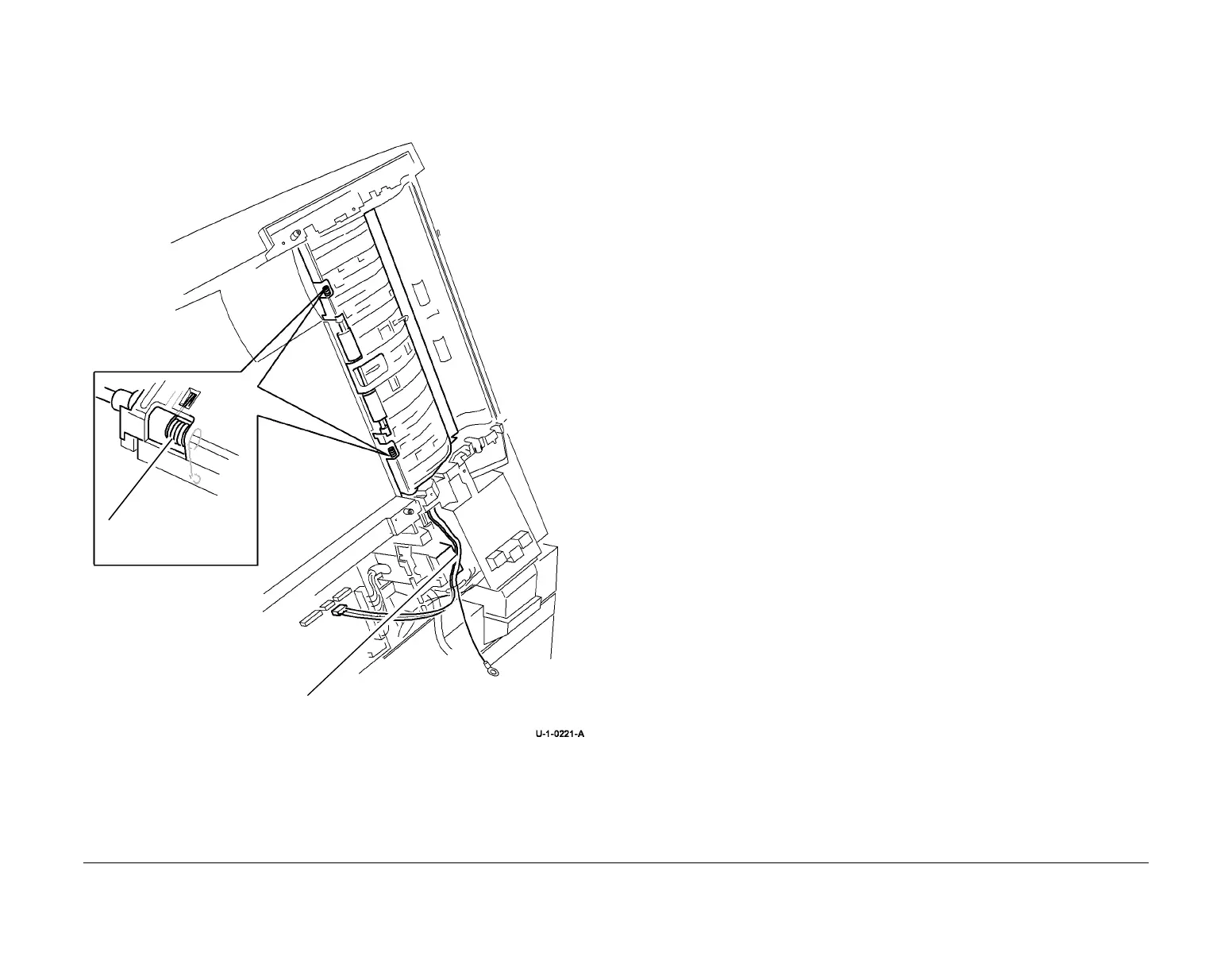

Figure 4 Torsion springs and harness
REP 5.6 Takeaway Roll Assembly
Parts List on PL 5.35
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the feed assembly, REP 5.3.
Torsion springs.
Route the harness.
To Next Page
