February 2013
4-177
ColorQube® 9303 Family
REP 12.40-171
Repairs/Adjustments
REP 12.40-171 HVF Input Roll
Parts List on PL 12.130.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.

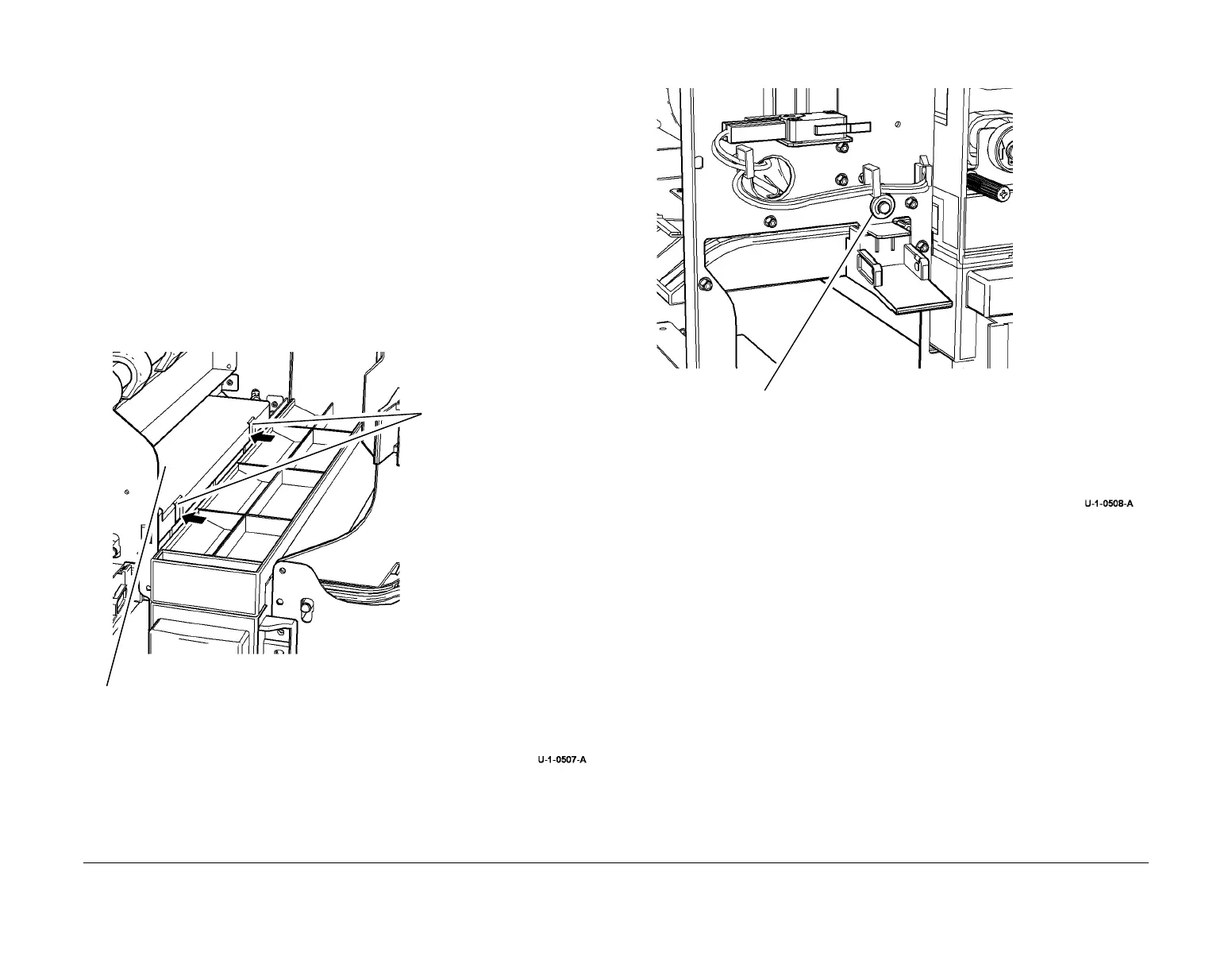

5. Figure 1. Remove the black plastic cover.
Figure 1 Cover removal.
6. Figure 2. At the front of the HVF, remove the circlip and bush.
Figure 2 Circlip and bush removal.
1
Press in the catches,
(2 places).
2
Lift out the cover.
1
Remove the circlip
and bush.
To Next Page
