February 2013
4-395
ColorQube® 9303 Family
ADJ 12.1-110, ADJ 12.2-110
Repairs/Adjustments
ADJ 12.1-110 LCSS Bin 1 Level
Parts List on PL 12.10
Purpose
To ensure bin 1 is level, and achieve the best stacking performance.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the rear cover and bin 1 motor, refer to REP 12.5-110.
2. Move bin 1 to the lowest position.
3. Remove the rear clamp, ensure the bin is fully down on both sides, then install the rear
clamp.
4. Re-install the bin 1 motor, refer to REP 12.5-110.
5. Switch on the machine, GP 14.
6. Enter dC330 code 12-242, bin 1 elevator motor cycle. Check that bin 1 cycles without giv-
ing any fault indications.
ADJ 12.2-110 Machine to LCSS Alignment
Parts List on PL 12.10
Purpose
To correctly align the LCSS to achieve reliable transfer of paper from the machine to the LCSS.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
Turn the hand wheels above the castors below bin 1 to adjust the alignment:
• Figure 1, turn both hand wheels in the same direction to adjust the vertical alignment
between the LCSS and the machine. The LCSS should be in vertical alignment with the
machine, viewed from the front and rear.

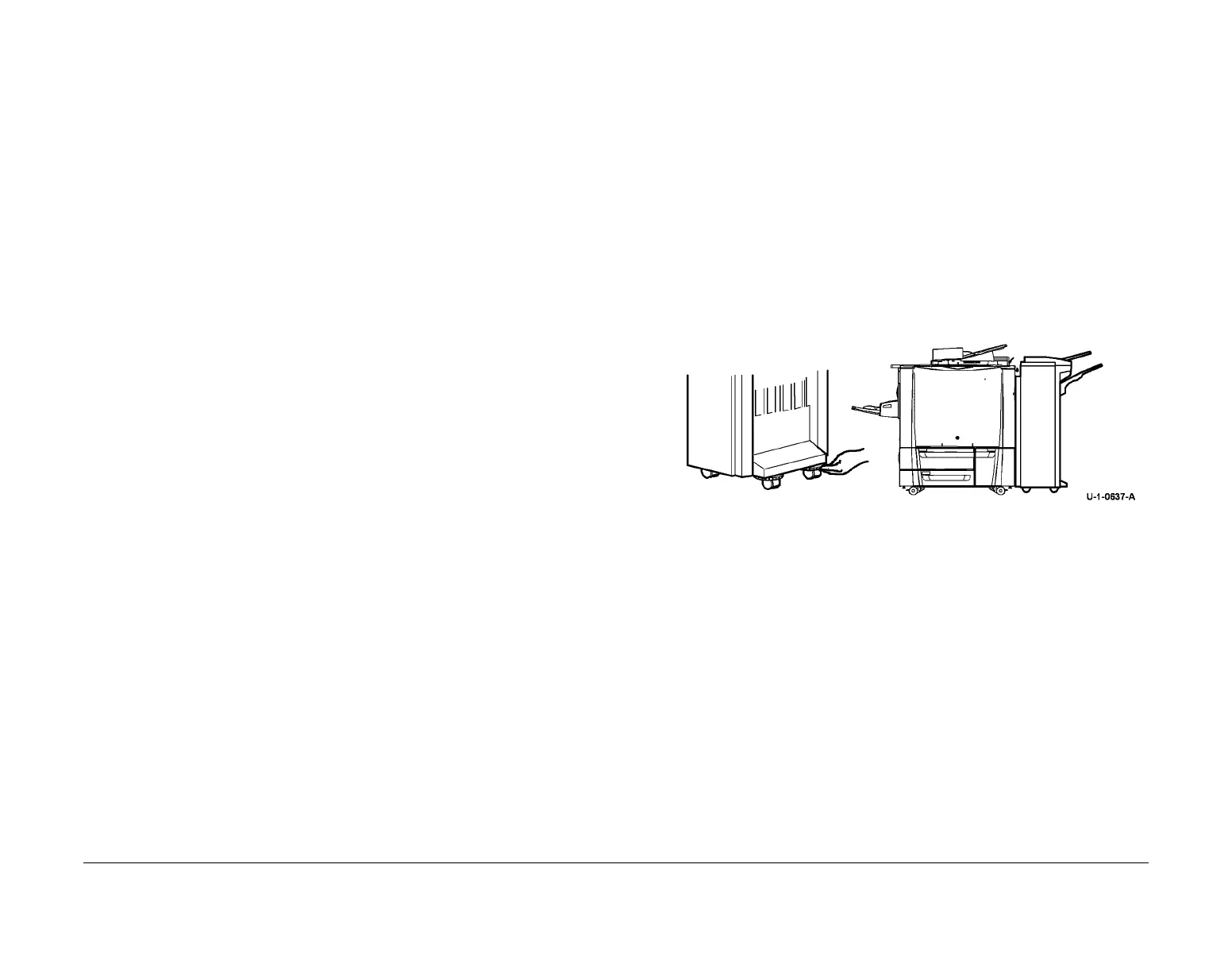

Figure 1 Machine to LCSS alignment
To Next Page
