February 2013
5-97
ColorQube® 9303 Family
PL 91.10
Parts Lists

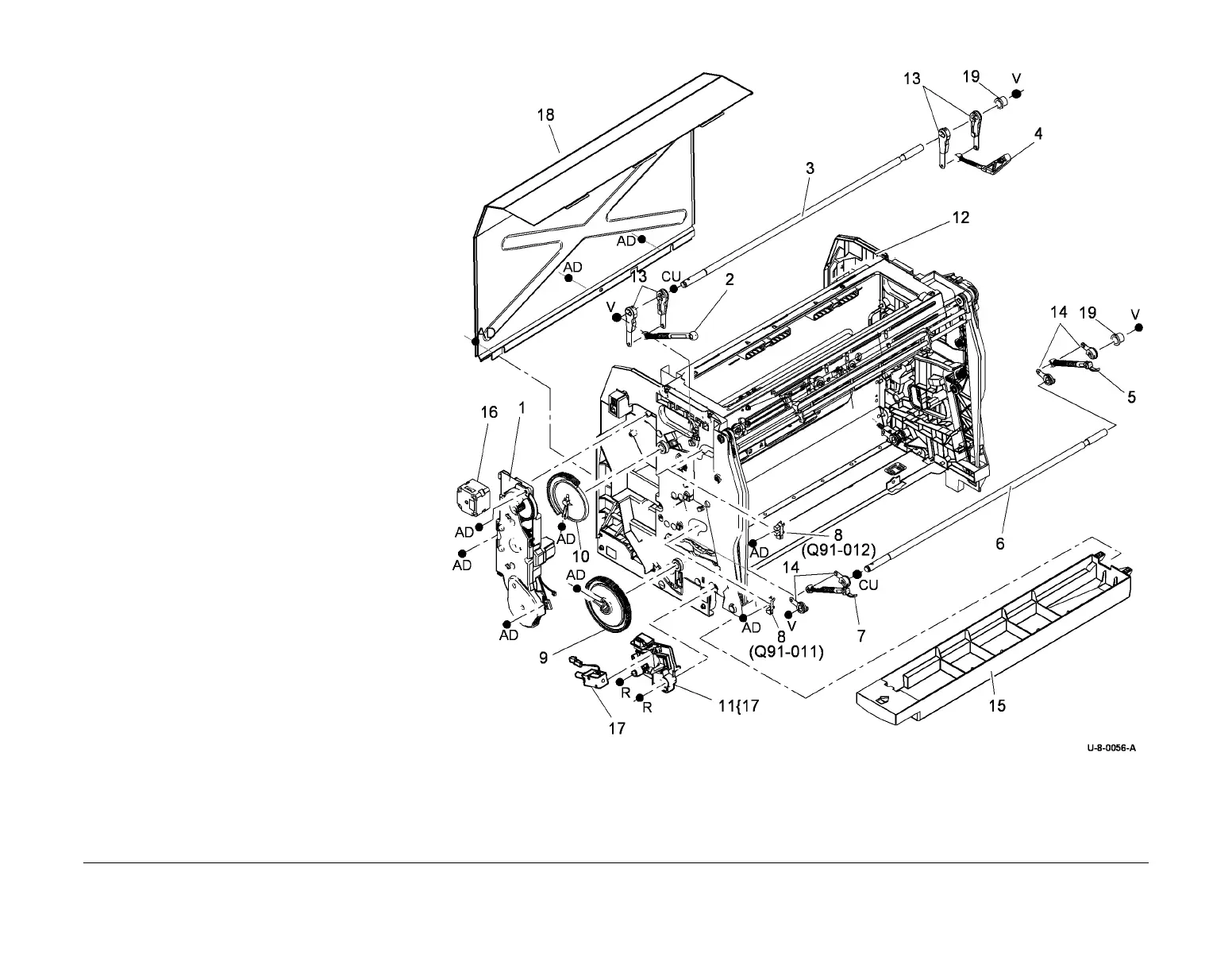

PL 91.10 Marking Unit Drive
Assembly
Item Part Description
1 041K06600 Carriage drive train (REP 91.1)
2 012K06940 Upper front compliant link (REP
91.8)
3 – Upper carriage drive shaft (Not
spared) (REP 91.8)
4 012K06950 Upper rear compliant link (REP
91.8)
5 012K06930 Lower rear compliant link (REP
91.10)
6 – Lower carriage drive shaft (Not
spared) (REP 91.10)
7 012K06920 Lower front compliant link (REP
91.10)
8 130E12970 Lower carriage home sensor (Q91-
011)/Upper carriage home sensor
(Q91-012)
9 807E29030 Lower carriage drive gear
10 807E29040 Upper carriage drive gear
11 120K03490 Waste tray lock solenoid assembly
12 116K00812 Marking unit enclosure (frame only)
13 011K03140 Upper carriage crank (See NOTE)
(REP 91.8)
14 011K03130 Lower carriage crank (See NOTE)
15 050E28780 Waste tray
16 – Carriage docking motor (MOT 91-
031) (P/O PL 91.10 Item 1)
17 – Waste tray lock solenoid (SOL91-
044) (P/O PL 91.10 Item 11)
18 – Marking unit enclosure cover (Not
spared)
19 – Carriage drive bushing (P/O PL
31.11 Item 23)
NOTE: If an entire crank (PL 91.10 Item 13 or PL 91.10 Item
14 ) needs to be replaced then 2 parts need to be ordered.
To Next Page
