Xerox ColorQube 9303 Series Service Manual

February 2013
5-49
ColorQube® 9303 Family
PL 12.185
Parts Lists

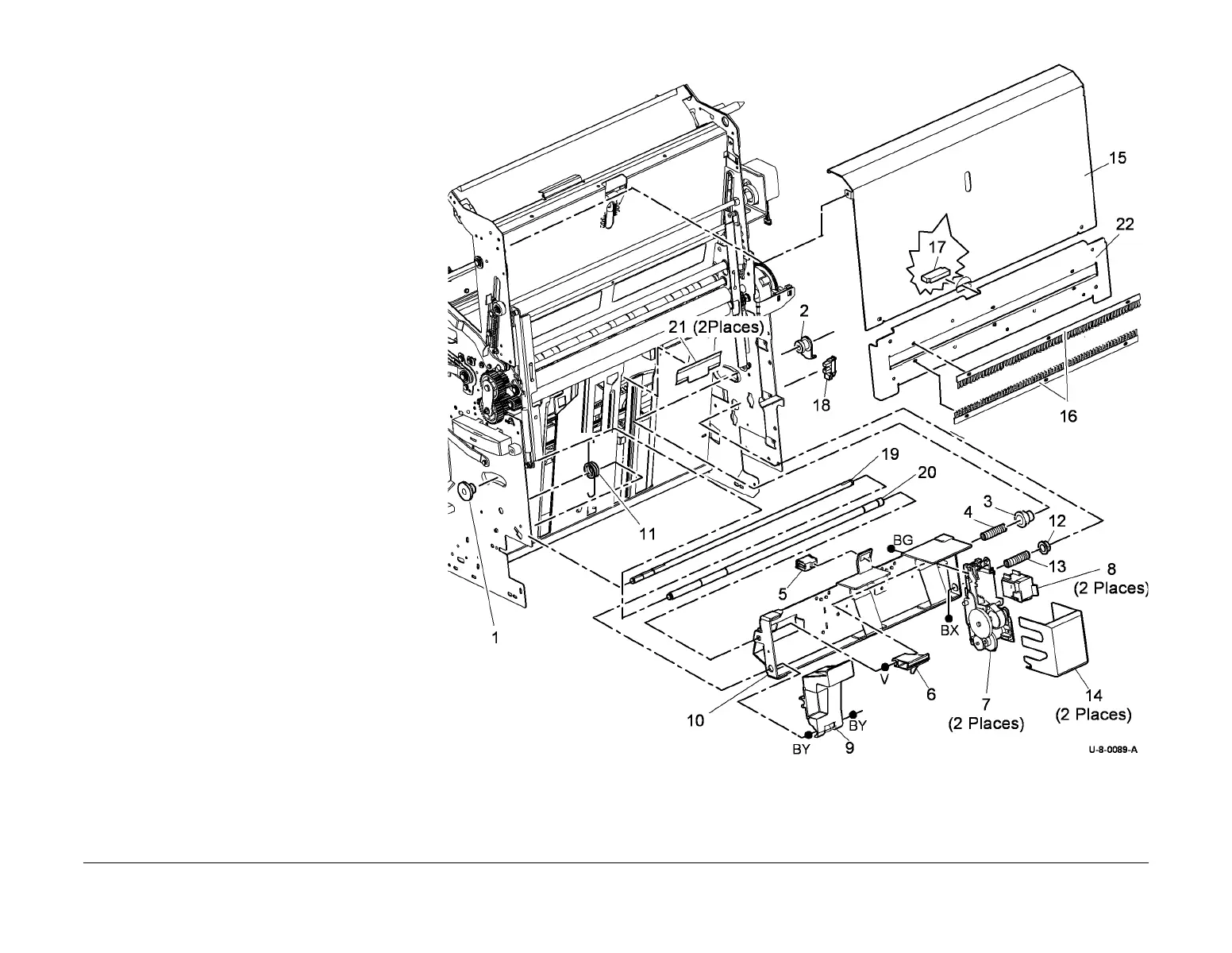

PL 12.185 HVF BM Stapler
Assemblies
Item Part Description
1 020E38513 Front follower
2 016E17732 Actuator
3 – Rear follower (Not spared)
4 809E44010 Spring
5 130K74090 BM Paper present sensor (Q12-
170)
6 008E06850 Latch slide
7 029K03232 BM Staple head assembly (REP
12.27-171, ADJ 12.3-171)
8 – Staple cartridge (REF: PL 26.10
Item 17)
9 – Staple bracket handle (Not spared)
(REP 12.28-171)
10 – Stapler bracket assembly (Not
spared) (REP 12.28-171)
11 809E48830 Torsion spring (REP 12.28-171)
12 – Bearing (Not spared) (REP 12.28-
171)
13 – Spring (Not spared) (REP 12.28-
171)
14 802E42770 Staple head cover
15 – BM right hand cover (Not spared)
(REP 12.56-171)
16 125K03831 Static eliminator
17 130E11640 BM exit sensor (Q12-213) (REP
12.50-171)
18 107E22600 BM Stapler head carrier closed
sensor (Q12-217) (REP 12.28-171)
19 – Lower shaft (Not spared) (REP
12.28-171)
20 – Upper shaft (Not spared) (REP
12.28-171)
21 055E51870 Mylar guide
22 – Exit plate (Not spared)
