February 2013
4-171
ColorQube® 9303 Family
REP 12.35-171, REP 12.36-171
Repairs/Adjustments
6. Figure 2. Remove the diverter exit gate.

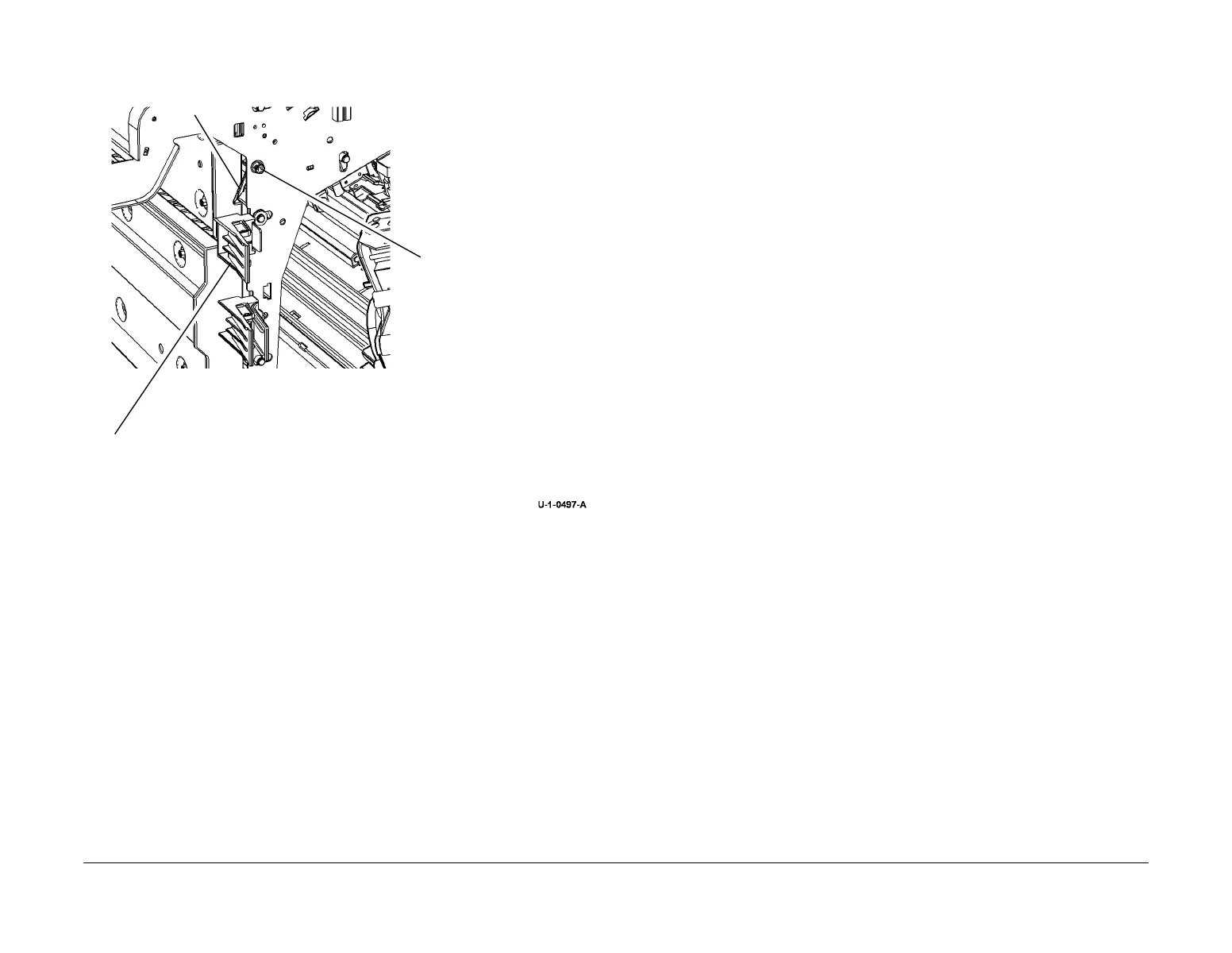

Figure 2 Diverter removal
Replacement
CAUTION
After replacement, check the K-L clip is in the correct groove, and the bush cannot be pulled
from the frame.
The replacement procedure is the reverse of the removal procedure.
REP 12.36-171 Crease Blade Assembly
Parts List on PL 12.170.
Purpose
This procedure is used to repair the following components:
• Connecting rod, PL 12.170 Item 9.
• Crease blade assembly, PL 12.170 Item 13.
• Crease blade support guide, PL 12.170 Item 14.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Open the HVF BM front door and fully pull out the BM module.
2. Remove the crease blade knob (6d), PL 12.150 Item 4.
3. Remove the crease roll handle (6c), PL 12.150 Item 5.
4. Remove the BM front cover, PL 12.150 Item 3.
1
Open Guide 5c.
2
Remove the pivot
screw.
3
Remove the
diverter exit gate.
Diverter
To Next Page
