February 2013
4-37
ColorQube® 9303 Family
REP 5.1
Repairs/Adjustments
REP 5.1 Top Cover Assembly
Parts List on PL 5.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Open the DADH top cover.
2. Remove the DADH top cover assembly, Figure 1.

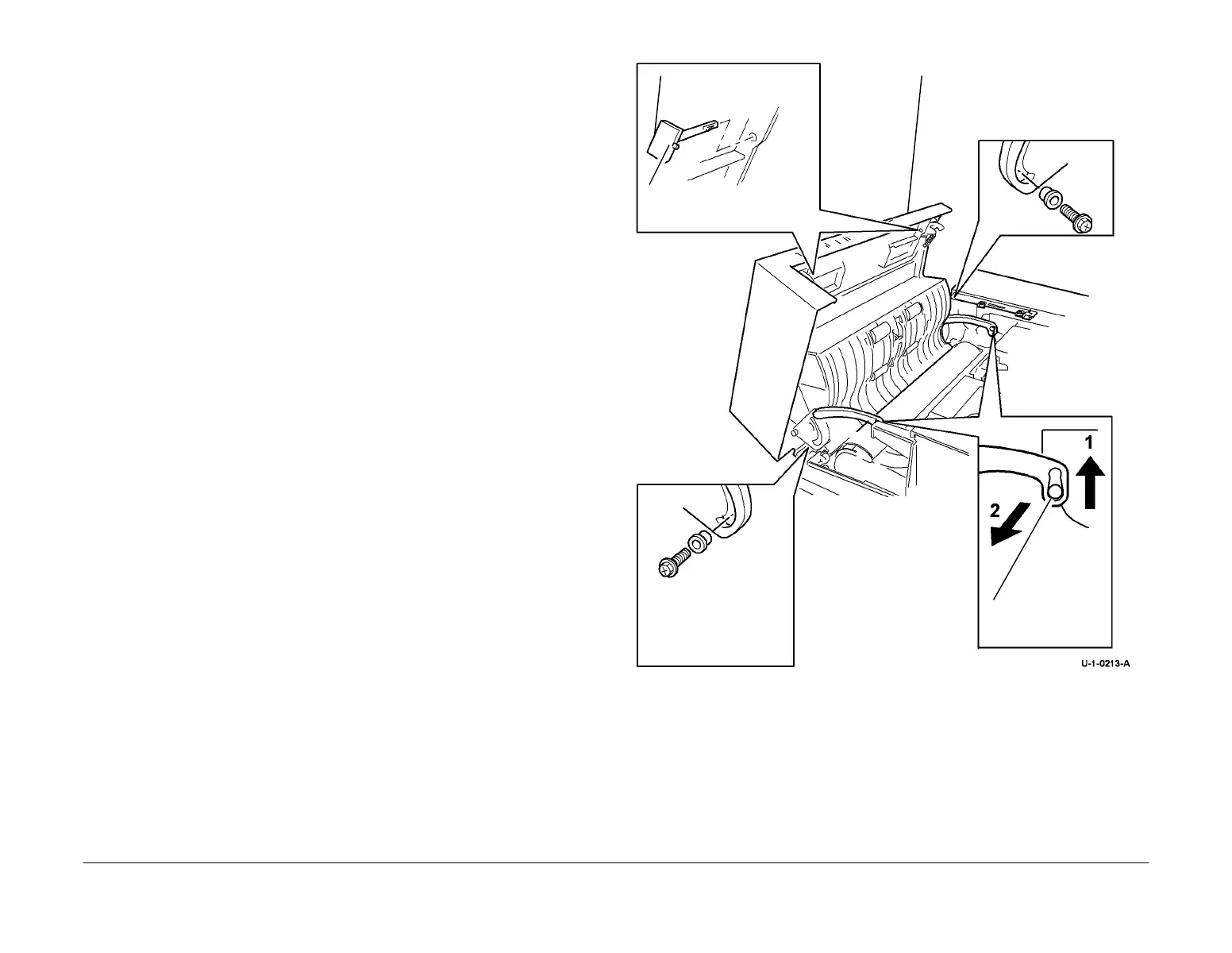

Figure 1 Top cover
Replacement
The replacement is the reverse of the removal procedure. Make sure the latch pins are
installed correctly, refer to Figure 1.
1
Disengage the hinges.
2
Remove the screw and
the plastic bushing (front
and back).
3
Remove the 2 latch pins.
Take note of the position of
latch pins.
4
Remove the top
cover assembly.
To Next Page
