February 2013
4-279
ColorQube® 9303 Family
REP 75.7, REP 75.8
Repairs/Adjustments
3. Release the transit lock and push the tray 5 module into the docked position against the
machine, Figure 4.

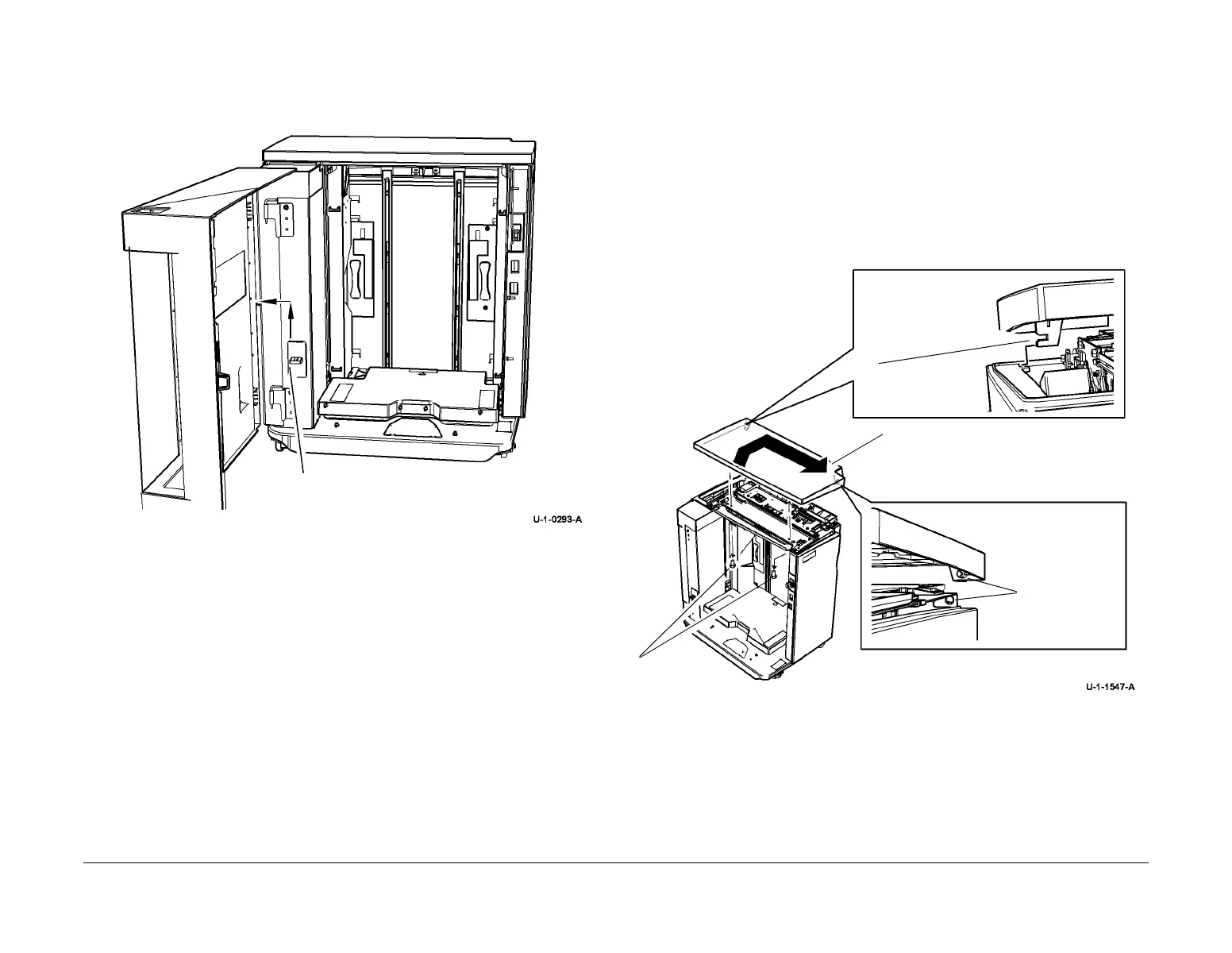

Figure 4 Release transit lock
4. Go to ADJ 75.2 Machine to Tray 5 Alignment and complete the adjustment.
REP 75.8 Tray 5 Covers
Parts List on PL 75.60
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present can cause injury.
1. To remove the top cover, Figure 1.
Figure 1 Top cover
Lift the latch and move to the left to
release the lock
Catch located onto
the rear cover
Post located into
the bracket
emove 2 screws
2
Slid the cover to the right to release the post
from the frame. Then pull to the front to
release the catch from the rear cover.
Rear
Front
To Next Page
