Xerox ColorQube 9303 Series Service Manual

February 2013
4-120
ColorQube® 9303 Family
REP 12.16-110
Repairs/Adjustments
REP 12.16-110 Docking Latch Assembly
Parts List on PL 12.15.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Take care not to topple the LCSS. The LCSS is unstable when un-docked from the
machine. Do not show the customer how to un-dock the LCSS.
1. Remove the front and rear covers, REP 12.1-110.
2. Un-dock the LCSS, REP 12.13-110 and move it away from the machine.

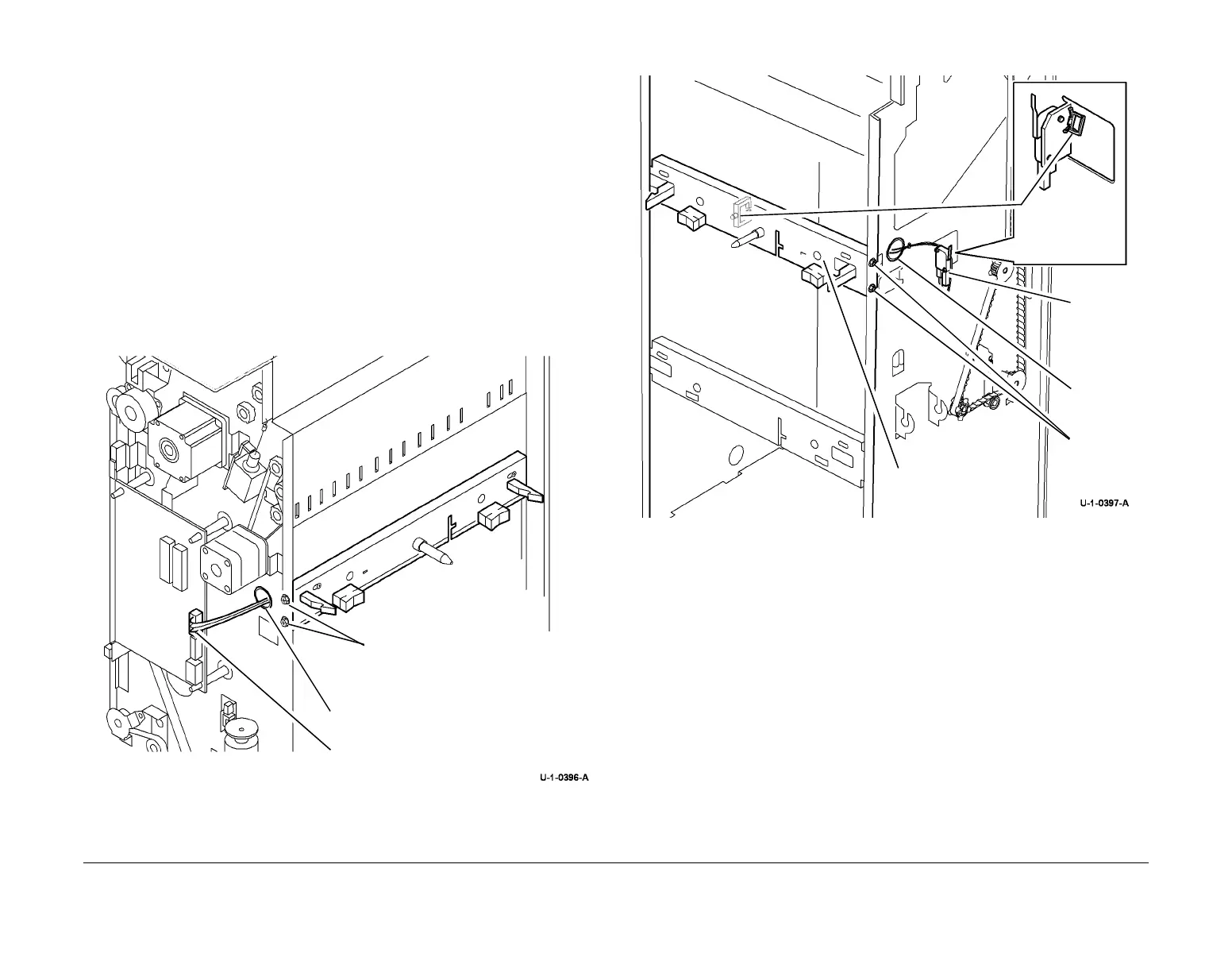

3. Figure 1, prepare to remove the docking latch assembly.
Figure 1 Prepare to remove the latch.
4. Figure 2, remove the docking latch assembly.
Figure 2 Latch assembly removal.
Replacement
Reverse the removal procedure to replace the docking latch assembly.
CAUTION
Ensure that the front and rear harness are routed through the flanged holes, refer to Figure 1
and Figure 2.
1
Disconnect P/J302.
2
Remove 2 screws.
Flanged hole
2
Disconnec
t
the switch
harness.
1
Release the har-
ness retainers.
3
Remove 2
screws.
Flanged
hole
4
Remove the latch
assembly.
