February 2013
4-265
ColorQube® 9303 Family
REP 71.3, REP 73.1
Repairs/Adjustments
4. Remove the gear assembly, Figure 2.

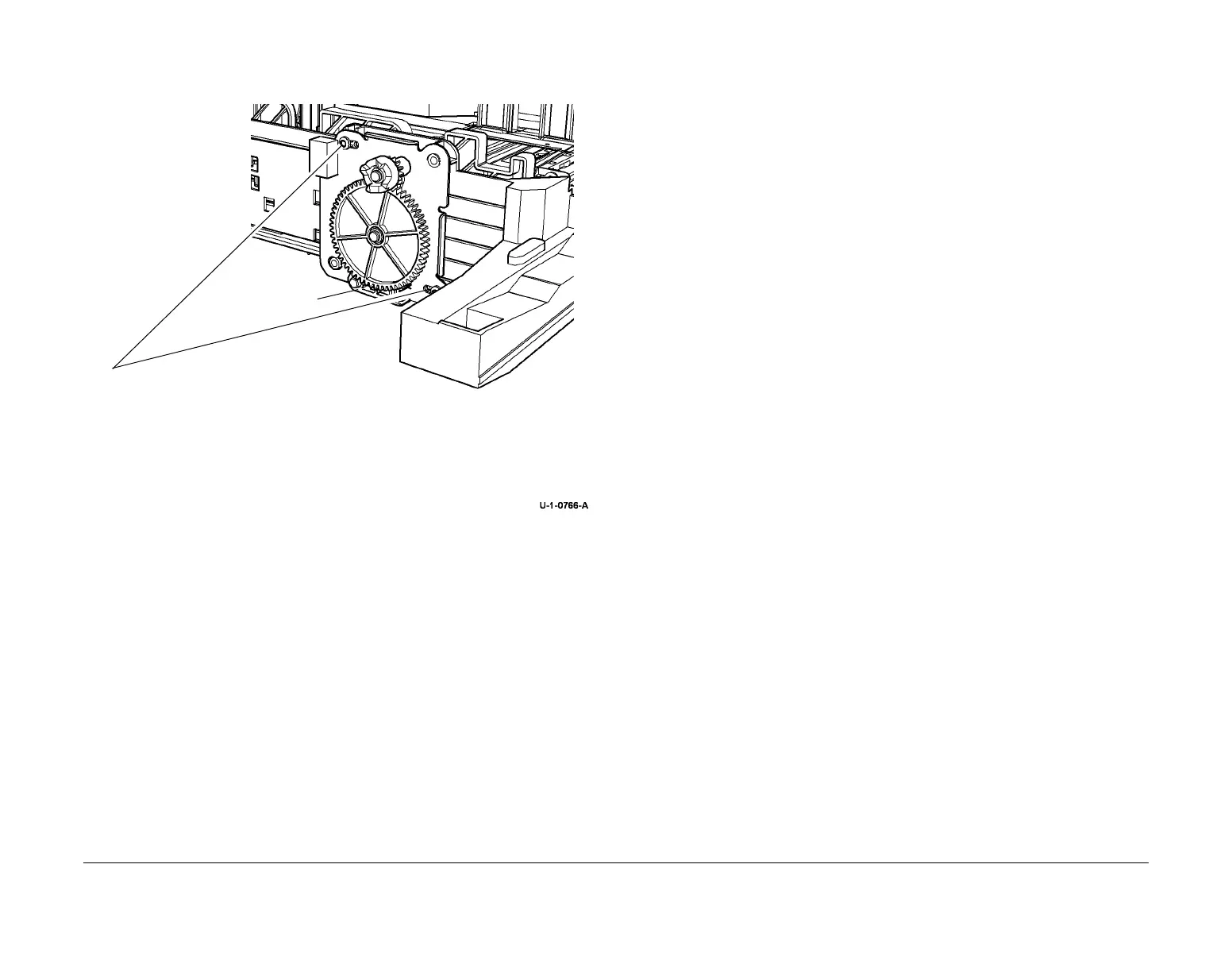

Figure 2 Lift gear removal
Replacement
Engage the lift gear assembly with the spigots on the rear of the tray. The remainder of the
replacement procedure is the reverse of the removal procedure.
REP 73.1 Tray 3 Removal
Parts List on PL 73.15
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Pull out tray 3.
2. Remove the paper from the tray.
3. Remove the right side cover, PL 70.25 Item 4.
4. Remove tray 1 and 2, REP 71.1.
1
Remove 2 screws
2
Remove the gear assembly, quadrant and
the bush behind the quadrant
Quadrant
To Next Page
