Xerox ColorQube 9303 Series Service Manual

February 2013
5-10
ColorQube® 9303 Family
PL 5.25
Parts Lists

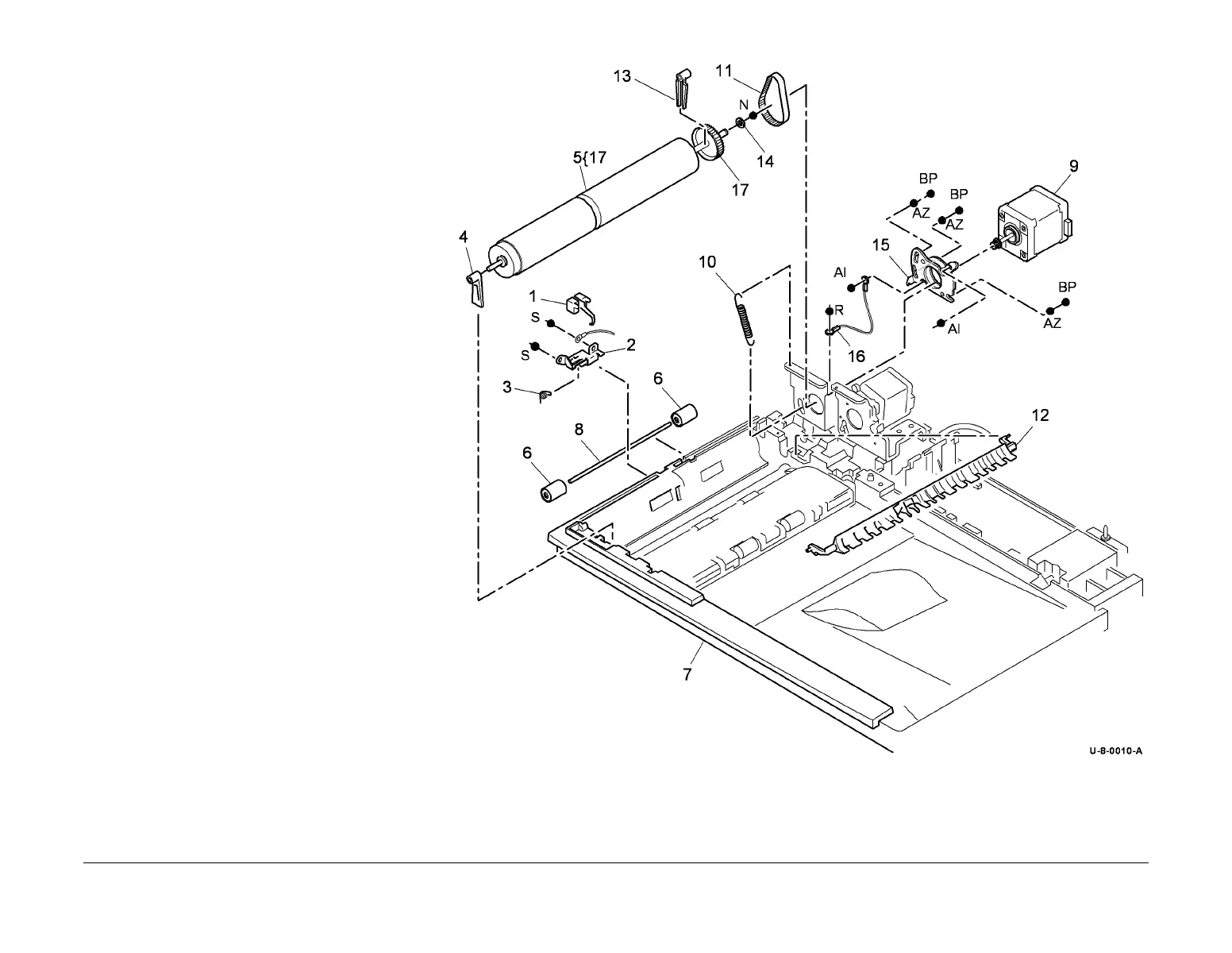

PL 5.25 CVT
Item Part Description
1 130K73980 DADH pre registration sensor
(Q05-206) (REP 5.10)
2 – Sensor support (P/O PL 5.10 Item
9)
3 – Torsion spring (P/O PL 5.10 Item 9)
4 013E21103 Front CVT roll bearing
5 – CVT Roll (P/O PL 31.10 Item 11)
(REP 5.15)
6 022E25061 Pre-scan idler
7 – Base (P/O PL 5.10 Item 9)
8 – Shaft (Not spared)
9 127K53780 DADH CVT Motor (MOT05-099)
(ADJ 5.1)
10 – CVT Motor tension spring (silver)
(P/O PL 5.10 Item 9)
11 023E25420 CVT Motor drive belt (195T) (REP
5.15, ADJ 5.1)
12 050E14972 Duplex gate (REP 5.15)
13 013E21094 Rear CVT roll bearing
14 – Spacer (white) (P/O PL 5.10 Item 9)
15 004E22560 CVT Motor bracket
16 – Ground harness (Not spared)
17 – CVT roll pulley (P/O PL 5.25 Item 5)
