February 2013

5-28

ColorQube® 9303 Family

PL 12.60

Parts Lists

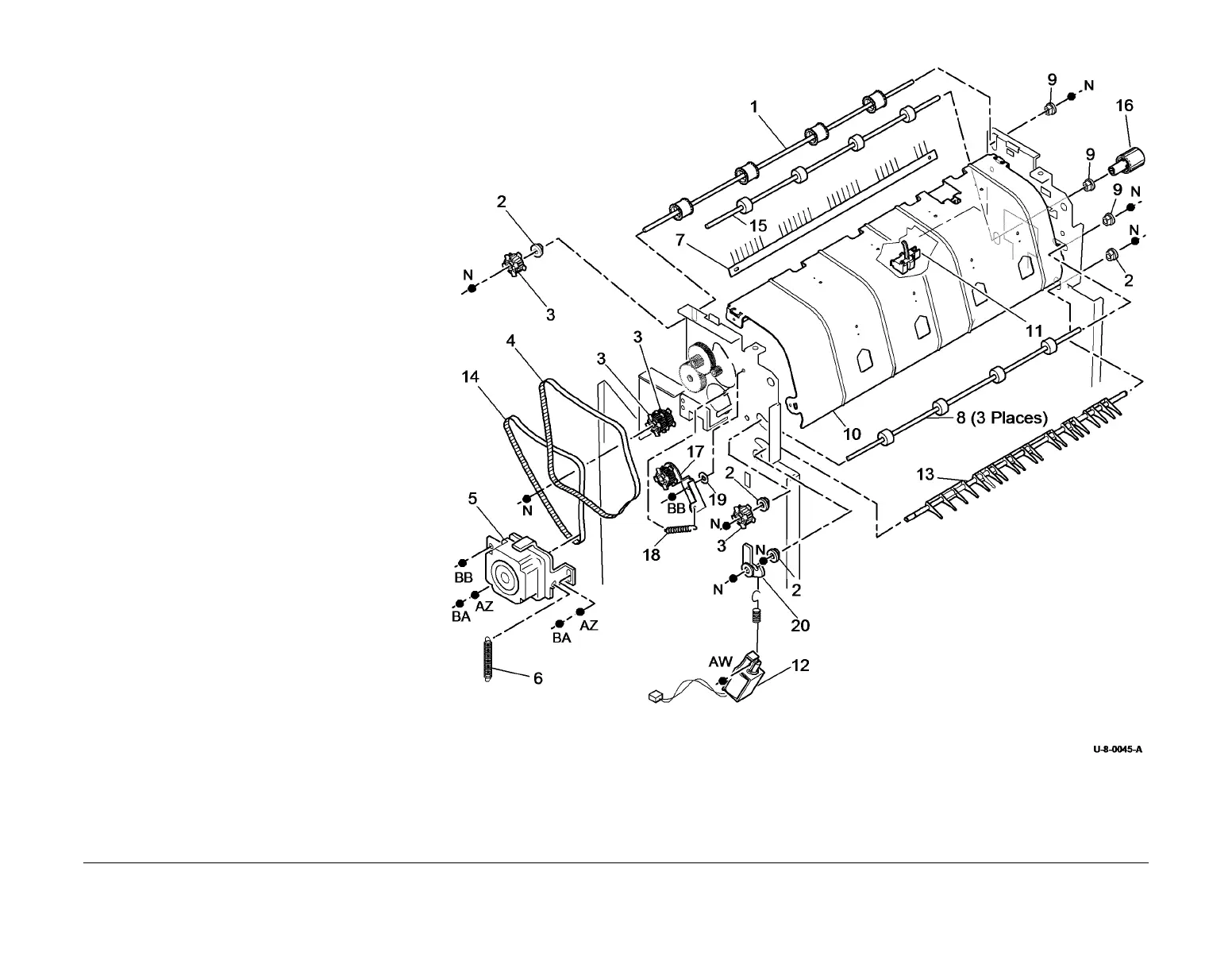

PL 12.60 LCSS Bin 0 Entry

Item Part Description

1 006K32810 Top tray exit shaft

2 013E25790 Nylon bearing

3 – Pulley (Not spared)

4 023E24330 Intermediate paper drive belt (REP

12.3-110)

5 127K55870 Transport motor 2 (MOT12-224)

(REP 12.4-110)

6 – Spring (Not spared)

7 115E13440 Static eliminator

8 – Feed roll shaft (short) (Not spared)

9 013E25800 Copper bearing

10 117K54510 Paper guide

11 130E11440 Top tray exit sensor (Q12-107)

12 121K45010 Exit diverter solenoid (SOL12-225)

13 – Shaft diverter assembly (P/O PL

31.11 Item 18)

14 023E24340 Paper output drive belt (REP 12.4-

110)

15 006K32840 Drive shaft assembly

16 006K33960 Drive shaft assembly knob

17 – Belt tensioner (Not spared)

18 – Spring (Not spared)

19 – Washer (Not spared)

20 – Actuator (Not spared)
