February 2013
4-383
ColorQube® 9303 Family
REP 91.36
Repairs/Adjustments
REP 91.36 Abatement Plenum
Parts List on PL 94.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the inner cover, PL 81.11 Item 2.
2. Remove the cleaning unit, refer to REP 94.1.
3. Remove the abatement plenum, Figure 1.

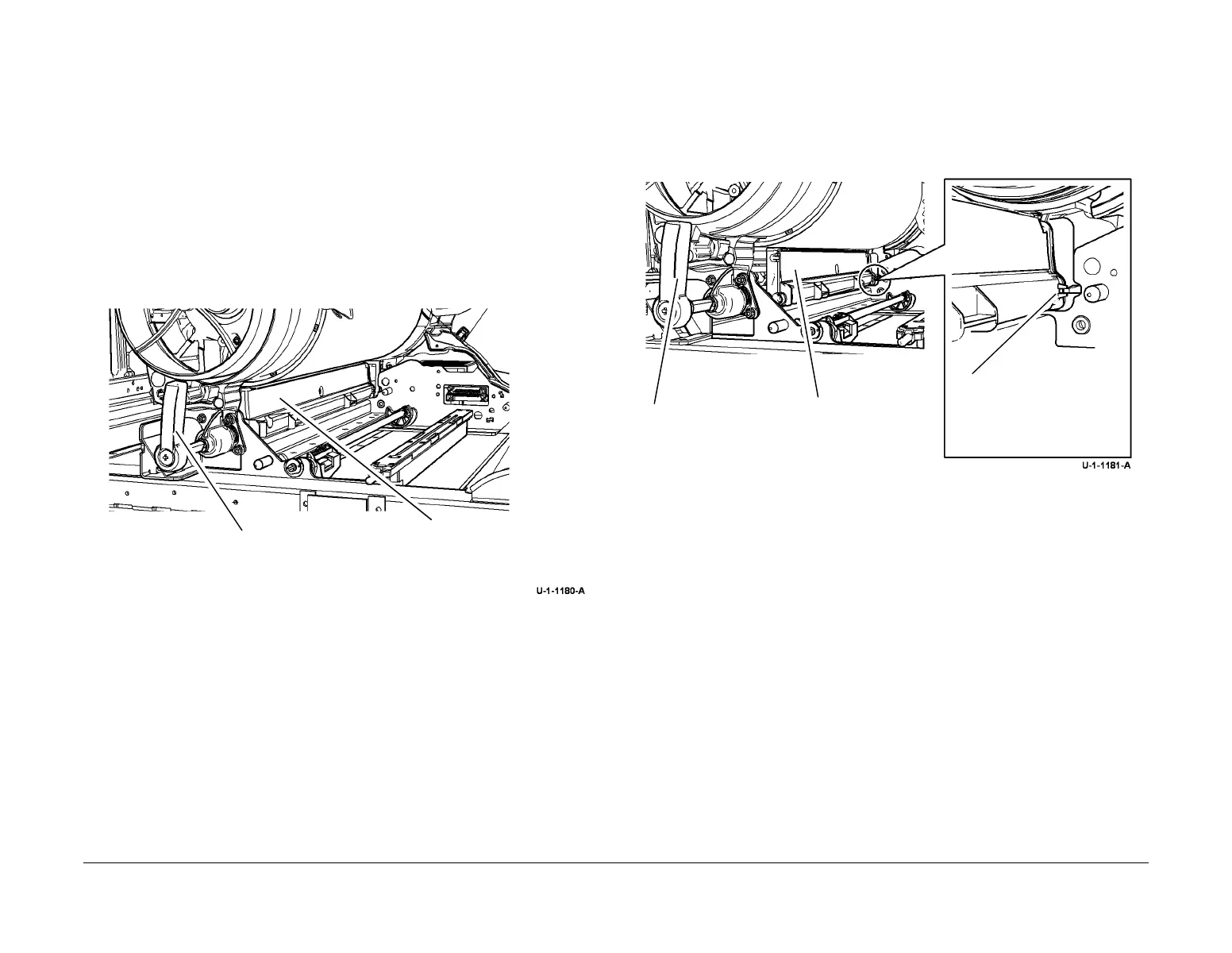

Figure 1 Removal
Replacement
CAUTION
Ensure that the plenum is correctly located in the support housing on the rear frame.
1. Replacement is the reverse of the removal procedure.
2. Ensure that the location lug on the abatement plenum aligns with the pin on the rear
frame, Figure 2.
Figure 2 Replacement
1
Pull the lever to release
the abatement plenum
2
Remove the abatement
plenum
1
Pull the handle
2
Align the abatement plenum
with the support pin
3
Push the abatement
plenum into position
