February 2013
4-178
ColorQube® 9303 Family
REP 12.40-171, REP 12.41-171
Repairs/Adjustments

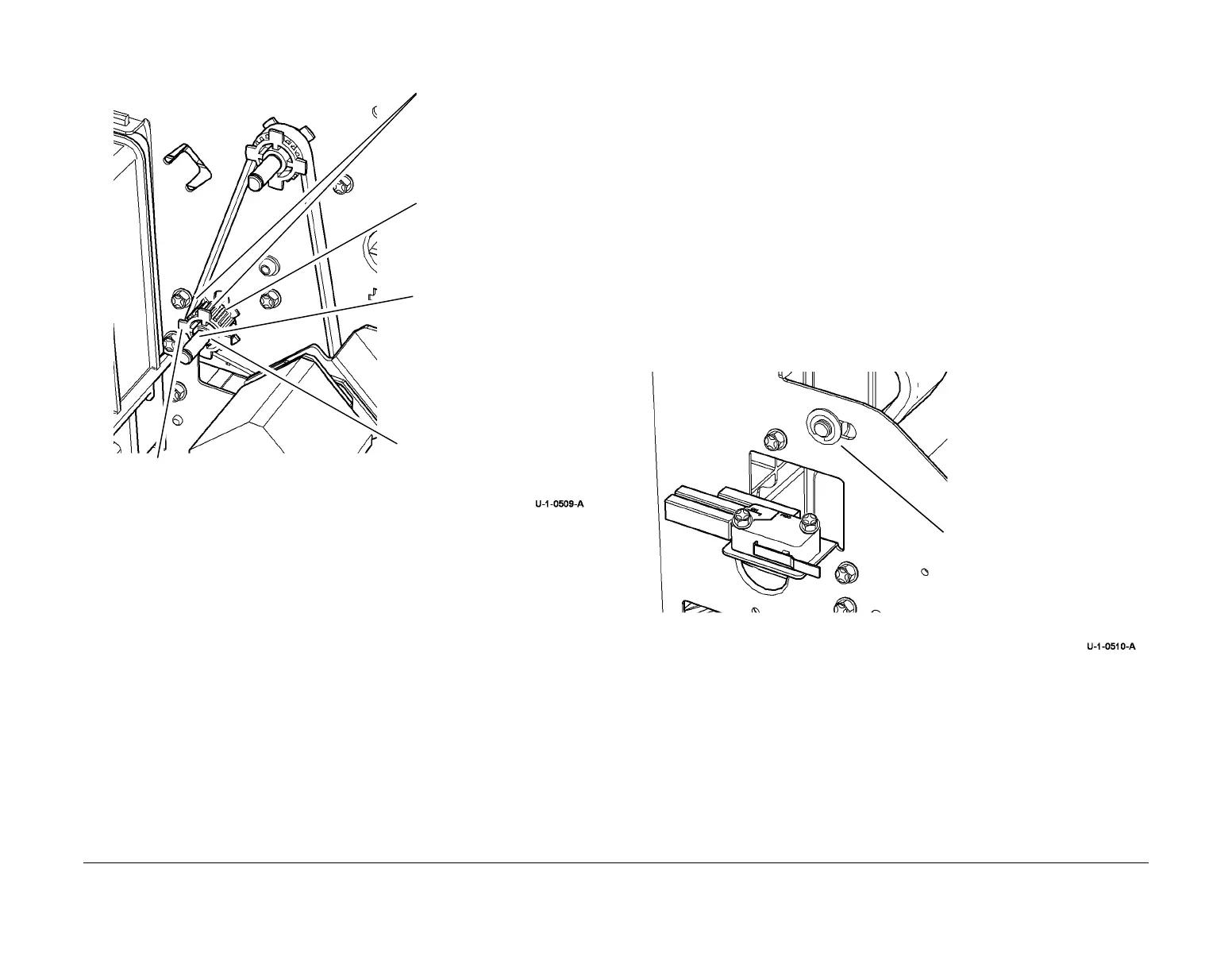

7. Figure 3. At the rear of the HVF, remove the input roll.
Figure 3 Input roll removal.
Replacement
The replacement procedure is the reverse of the removal procedure.
REP 12.41-171 HVF Inserter Guide Roll
Parts List on PL 12.130.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.
5. Open guide 8a.
6. Figure 1. At the front of the HVF, remove the circlip and the bush.
Figure 1 Circlip and bush removal.
1
Remove the circlip.
2
Slide the pulley and the
bush along the shaft.
3
Lift the shaft and remove
the belt from the pulley.
4
Remove the pulley and
the bush.
5
Remove the input roll.
REAR VIEW
1
Remove the circlip
and the bush.
To Next Page
