ColorQube® 9303 Family
ADJ 5.5, ADJ 5.6
Repairs/Adjustments
ADJ 5.5 DADH Registration Adjustment
Parts List on PL 5.10
Purpose
To measure and adjust the image to paper registration.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
Perform the following as required:
• dC608 DADH Registration.
• dC609 Document Glass Registration.
ADJ 5.6 DADH Document Pad
Parts List on PL 5.10
Purpose
To correctly align the DADH document pad with the document glass.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
NOTE: If a new document pad is installed, make sure that the protective paper is removed
from the adhesive pads.
1. Raise the DADH. Put the document pad with the adhesive pads face-up on the document
glass.
2. Align the document pad with the document registration guides as shown in Figure 1.

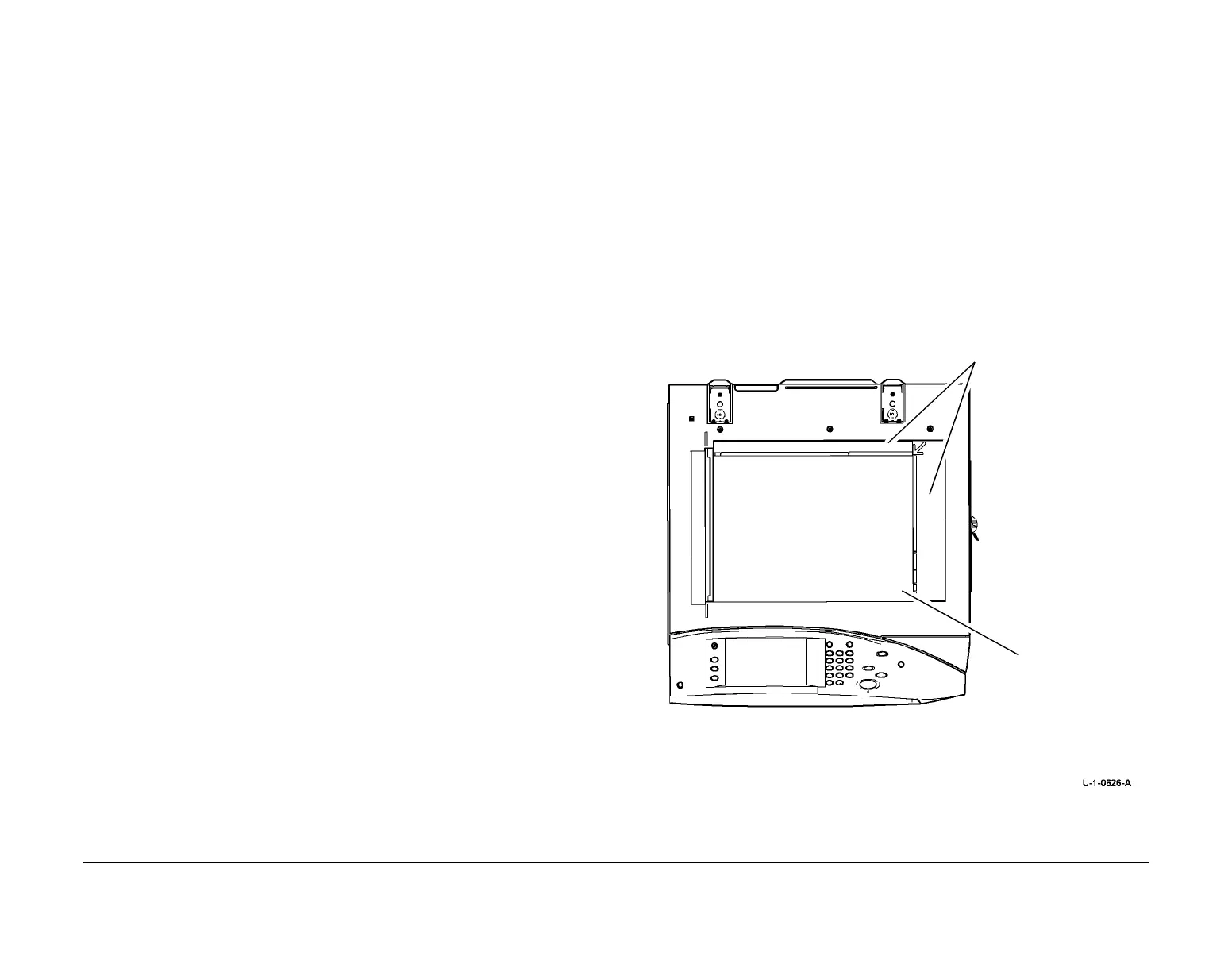

Figure 1 Document pad alignment
3. Carefully lower then raise the DADH. Make sure the document pad is attached correctly.
Document pad
Document registration
guides
