February 2013
4-99
ColorQube® 9303 Family
REP 12.1-110
Repairs/Adjustments
REP 12.1-110 LCSS Covers
Parts List on PL 12.10.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
Remove the covers, Figure 1.
NOTE: Removing the top cover first will allow easy removal of the front and rear covers.

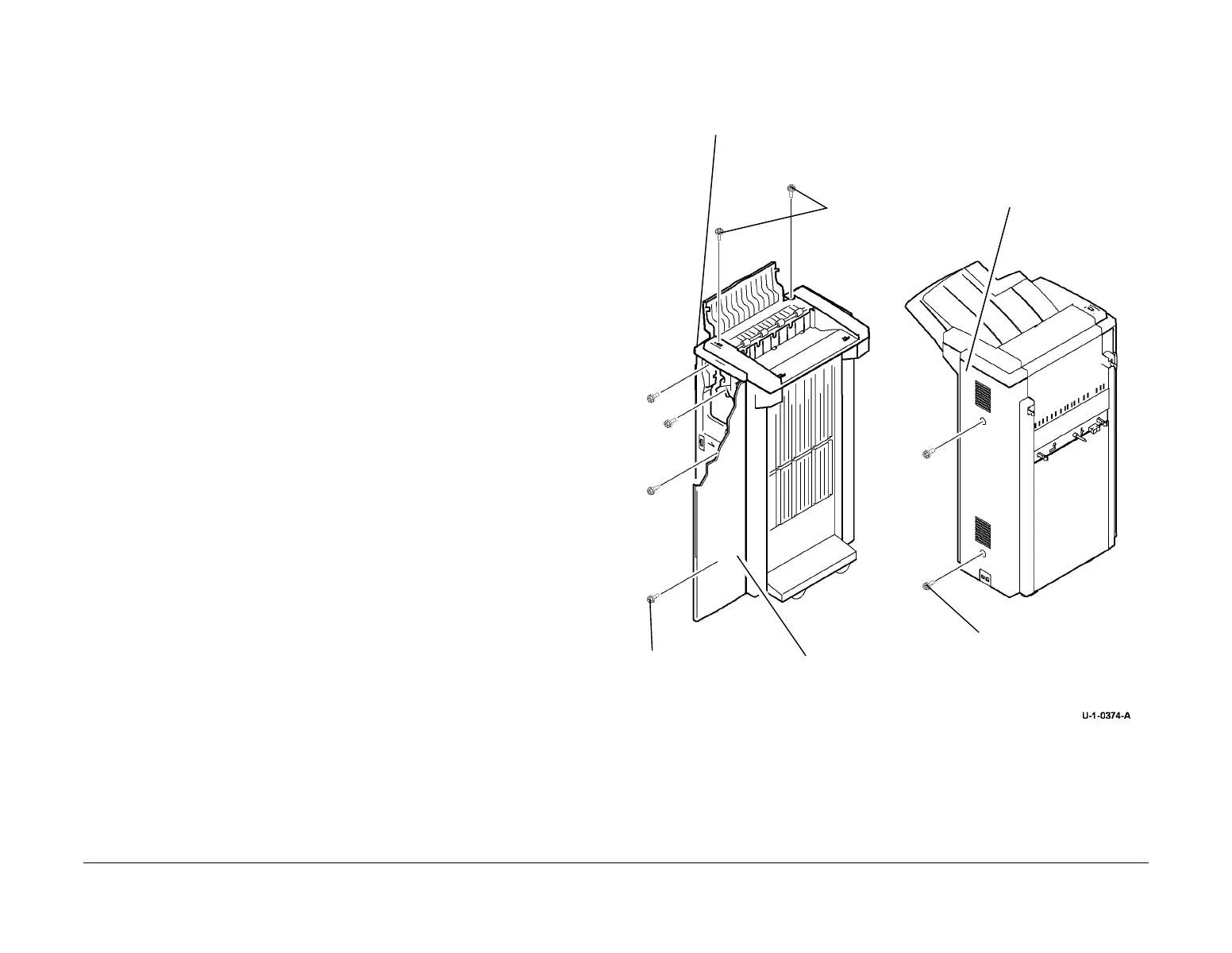

Figure 1 Removing the covers
Replacement
Reverse the removal procedure to replace the covers.
1
Open the exit cover,
remove two screws.
5
Remove two screws.
3
Open the front door,
remove four screws.
2
Remove the top
cover.
4
Remove the front door
cover assembly.
6
Remove the rear cove
assembly.
To Next Page
