February 2013
4-169
ColorQube® 9303 Family
REP 12.33-171
Repairs/Adjustments
REP 12.33-171 Buffer Pocket Jam Clearance Guide
Assembly
Parts List on PL 12.125.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.
5. Remove the buffer pocket roll, REP 12.42-171.
6. Figure 1. At the rear of the HVF, prepare to remove the buffer pocket jam clearance guide.

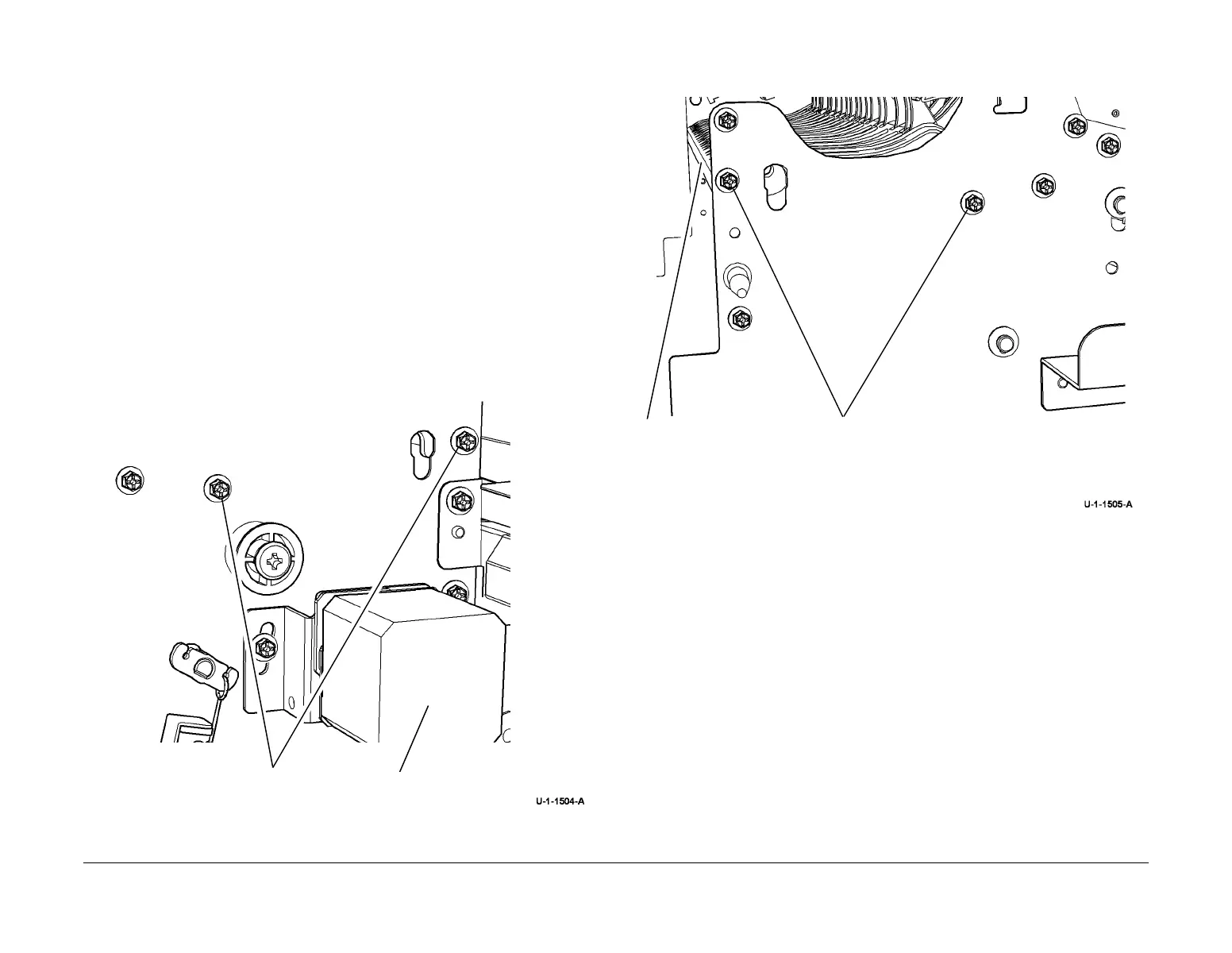

Figure 1 Rear screw removal.
7. Figure 2. At the front of the HVF, remove the buffer pocket jam clearance guide.
Figure 2 Guide removal.
Replacement
The replacement procedure is the reverse of the removal procedure.
REAR VIEW
1
Remove 2 screws.
Bypass feed motor
(MOT 12-263) ref. only.
2
Remove the buffer pocket jam
clearance guide.
1
Remove 2 screws.
To Next Page
