ColorQube® 9303 Family
REP 12.100-171
Repairs/Adjustments
REP 12.100-171 Ejector Paddle Assembly (W/TAG V-004)
Parts List on PL 12.110
Removal
WARNING
Switch off the electricity to the machine, GP 14. Disconnect the power cord from the
customer supply while performing tasks that do not need electricity. Electricity can
cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Rotate the ejector paddle assembly until the two short tabs are visible.
2. Squeeze the two short tabs together and pull to remove the ejector paddle assembly, Fig-
ure 1.

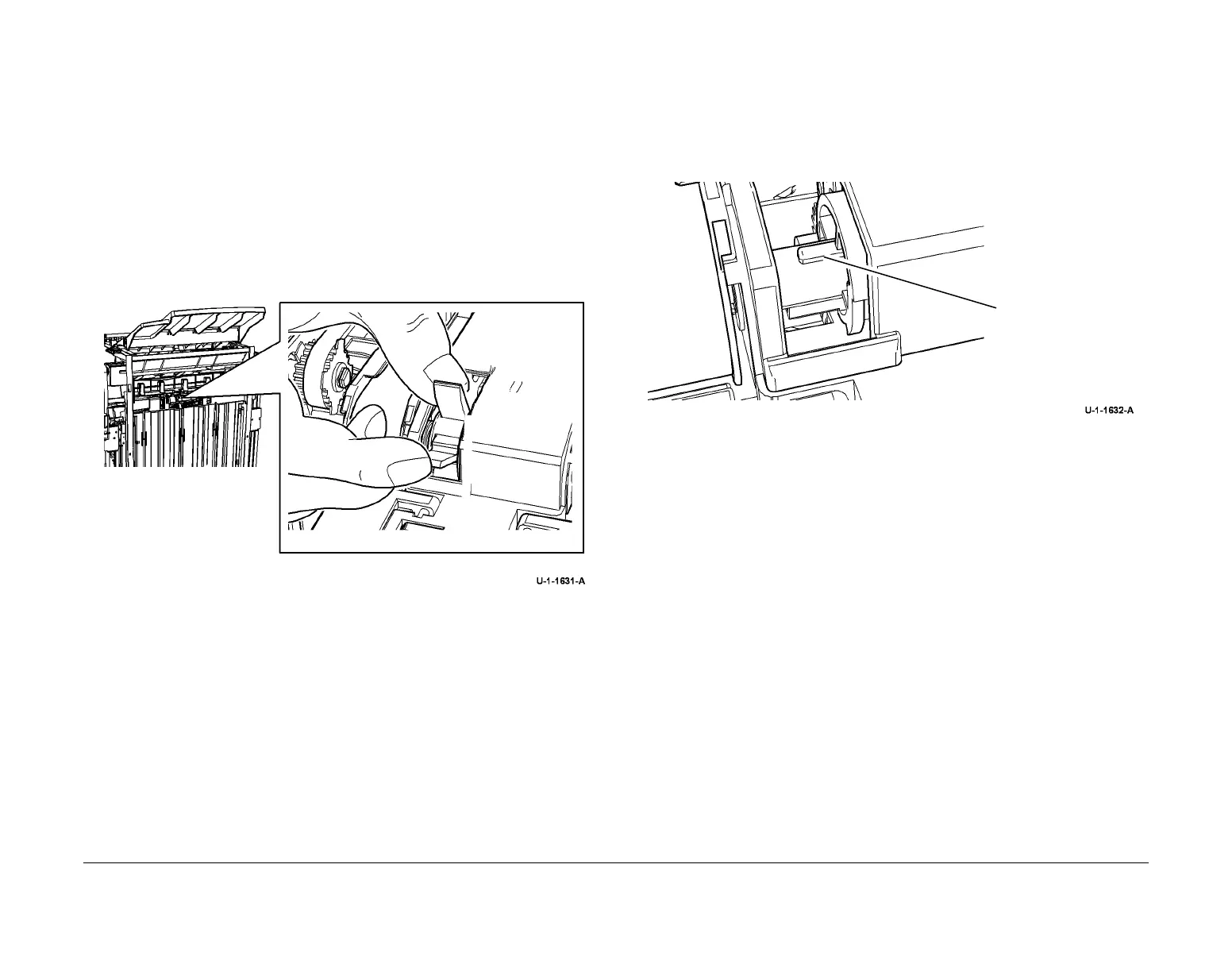

Figure 1 Ejector paddle assembly
Replacement
1. Rotate the paddle shaft to ensure that the locating tab is uppermost, Figure 2.
2. Ensure that the longest paddle is positioned towards the stacker tray.
3. Hold the paddle assembly by the two short tabs and clip onto the shaft.
NOTE: Ensure that the paddle assembly is correctly oriented to fit onto the plastic locat-
ing tab.
Figure 2 Paddle locating tab
Paddle locating tab
