ColorQube® 9303 Family
REP 12.13-171
Repairs/Adjustments
REP 12.13-171 HVF/HVF BM Un-Docking
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
Do not show the customer how to un-dock the HVF / HVF BM.
1. Open the front door.
2. Figure 1, release the docking latch and move the HVF/HVF BM to the right, away from the
machine.

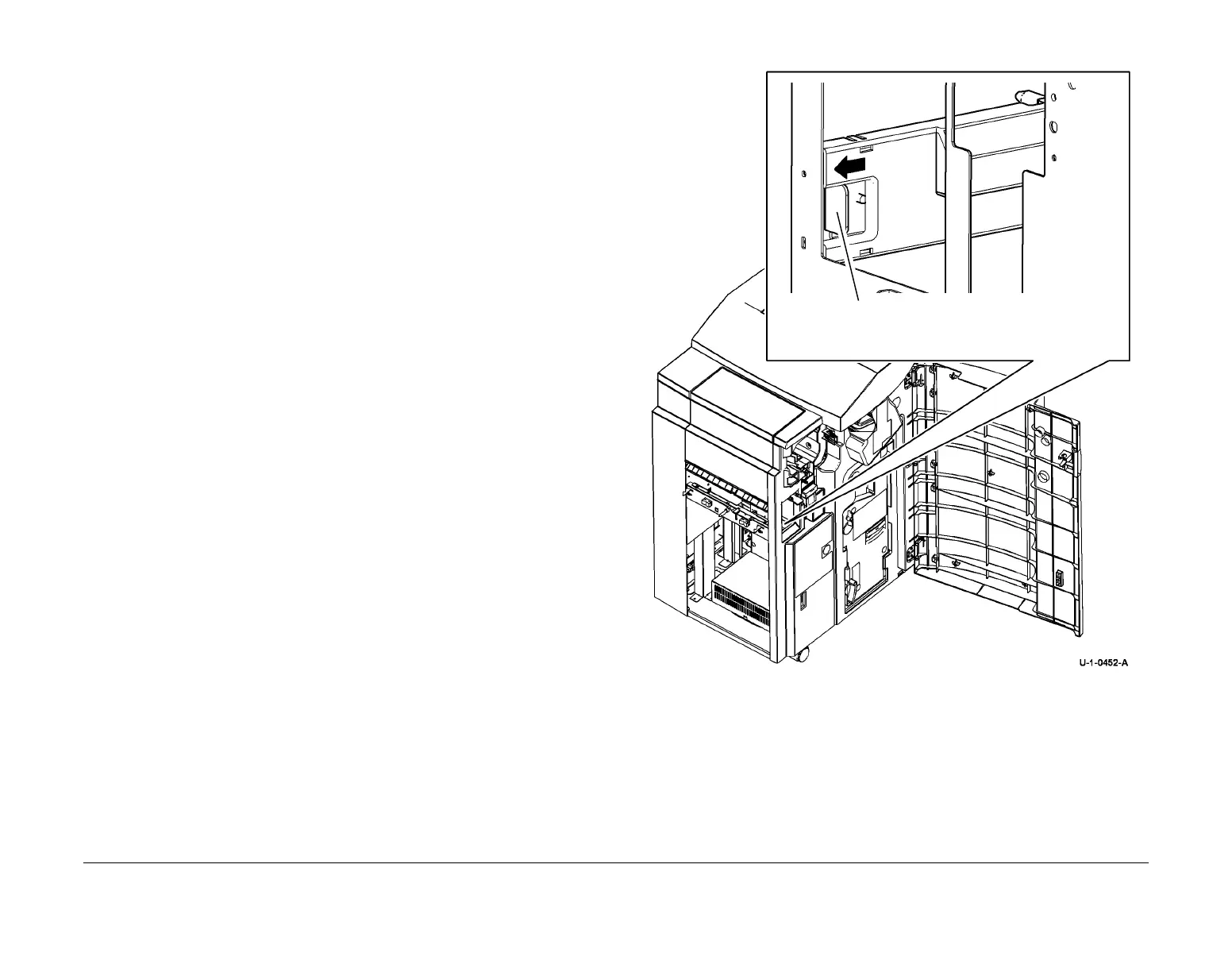

Figure 1 Docking latch location
NOTE: Where fitted, the tri folder may remain docked to, and moved with, the HVF.
3. Disconnect the harnesses between the machine and the HVF/HVF BM if necessary.
Replacement
CAUTION
Take care to align the HVF to the right side of the machine before rolling the HVF into position.
Misalignment will damage or break the interlock actuator.
Reverse the removal procedure to dock the HVF/HVF BM.
2
Roll the HVF to the right
away from the machine.
1
Pull the lever forward to release both
latches.
