Xerox ColorQube 9303 Series Service Manual

February 2013
5-73
ColorQube® 9303 Family
PL 70.30
Parts Lists

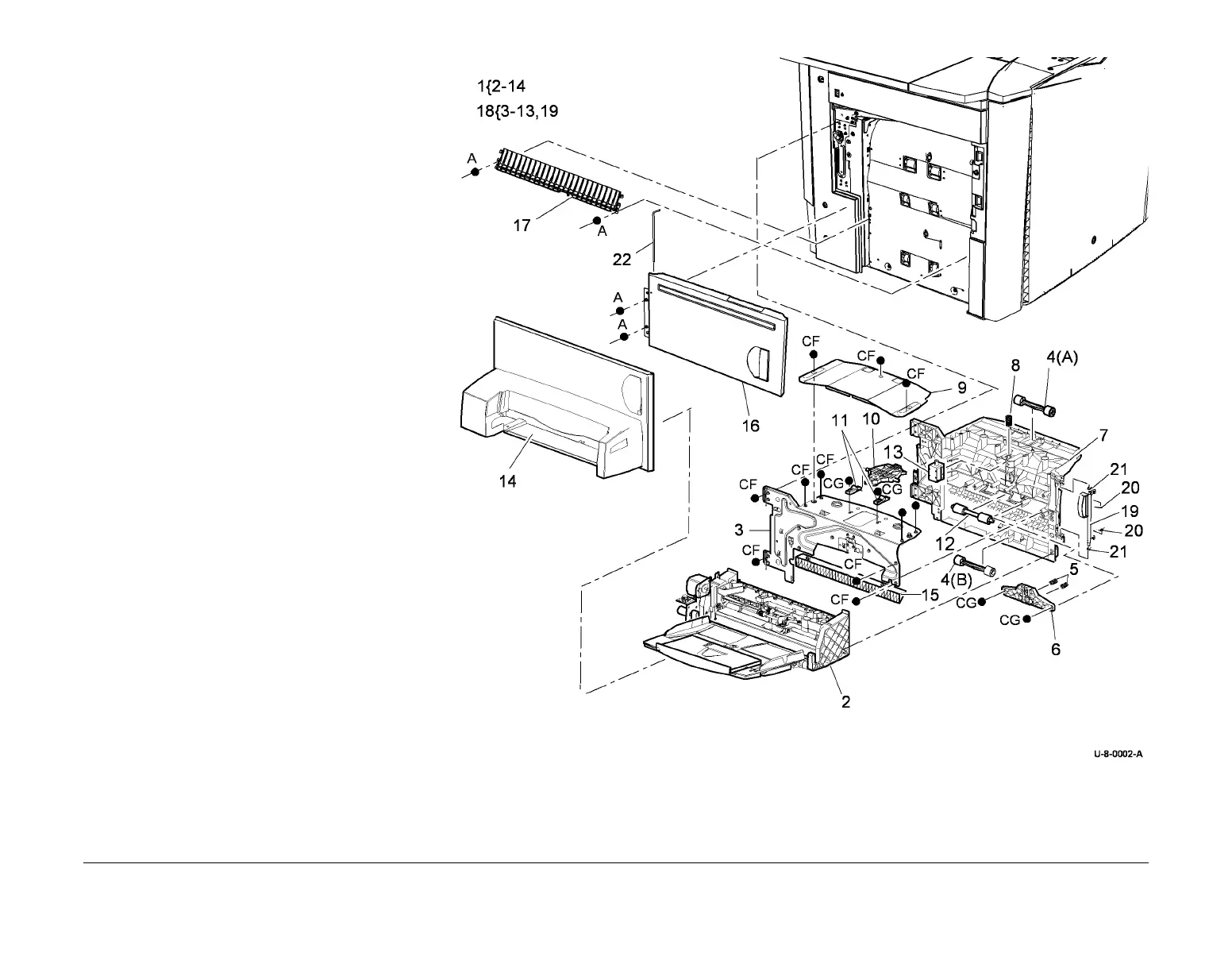

PL 70.30 Left Hand Upper Door
Assembly
Item Part Description
1 – Bypass assembly (Not spared)
(REP 70.2)
2 – Bypass Module (P/O PL 70.30 Item
1) (REP 81.3)
3 – Upper door stiffener plate (P/O PL
70.30 Item 18)
4 – Nip 'D' roller (A)/Nip 'F' roller (B) (P/
O PL 70.30 Item 18)
5 – Tension spring (P/O PL 70.30 Item
18)
6 – Nip E support (P/O PL 70.30 Item
18)
7 – Upper door base (P/O PL 70.30
Item 18)
8 – Spring (P/O PL 70.30 Item 18)
9 – Top cover (P/O PL 70.30 Item 18)
10 – Nip release link arm (P/O PL 70.30
Item 18)
11 – Pivot block (P/O PL 70.30 Item 18)
12 – Nip 'E' roller (P/O PL 70.30 Item 18)
13 – Nip 'D' release solenoid (SOL82-
008) (P/O PL 70.30 Item 18) (REP
81.13)
14 848E40430 Upper left door cover
15 – Upper door divider (P/O PL 70.30
Item 1)
16 848K71910 Mid left door assembly
17 038E41190 Lower guide (PFP)
18 848K24560 Upper left door assembly (REP
70.2)
19 – Latch (P/O PL 70.30 Item 18)
20 – Latch spring (P/O PL 31.11 Item
23)
21 – Latch clip (P/O PL 31.11 Item 23)
22 – Hinge pin (Not spared)
